Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

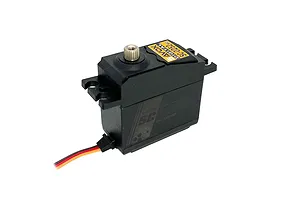

The Savox SC-0252MG is a high-torque, metal-geared, digital servo designed for standard RC applications. It serves as an excellent upgrade for standard, plastic-geared servos offering lower torque capabilities. "Plus" series servos feature Soft Start and Sanwa SSR compatibility, providing enhanced control and compatibility.

Features

Leading edge digital servo technology
Accurate and fast response

Ball bearings provide fluid and unrestricted movement
Metal gears are durable and long lasting

Specifications

Spline size: 25T Spline
Servo Technology: Digital
Operating Voltage (V): 4.8V - 6V
Motor Type: Brushed Motor
Weight: 49g
Gear Type: Metal Gears

Servo Case: Black Plastic
Torque @ 4.8V: 7.2 kg-cm (100 oz-in)
Torque @ 6V: 10.5 kg-cm (145.8 oz-in)
Speed @ 4.8V: 0.23 sec/60 deg
Speed @ 6V: 0.19 sec/60 deg
Connector type: JR/Futaba

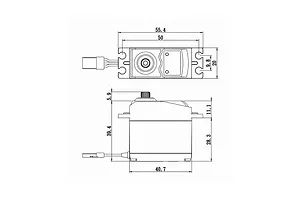

Servo Specifications

Total Height (A) = 39.4mm
Body Width (B) = 40.7mm
Below Mount (C) = 28.3mm
Above Mount (D) = 17mm
Total Length (E) = 55.4mm
Total Width (F) = 20mm

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

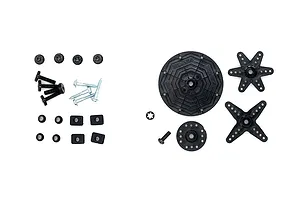

Included items

Description	QTY
Savox SC-0252MG-Plus Standard 10.5kg 6V Metal Geared Servo	1
