Tamiya 1/10 TT-02 Subaru BRZ R&D Sport 2014 Electric On Road RC Car Kit

2014 Subaru BRZ R&D Sport

This radio control model recreates the R&D Sport-run Subaru BRZ, a car entered in the GT300 class of the Japanese Super GT series. While the car retains the general atmosphere of the road-going BRZ, it has been significantly modified for the racing series, with a racy wide and low form. Subaru's motorsports arm STI tuned the 2-litre 4-cylinder boxer, which has an output of 350ps and impressive torque of 45kgf·m. The car enjoyed positive progress in the 2014 season, with a number of promising qualifying performances leading to improved results later in the year. This model recreates the car as it appeared in Round 2 of the season in Fuji. Separate parts are included in the kit to recreate the side mirrors and rear wing, and markings are provided to recreate BRZ and sponsor logos, as well as car numbers.

4WD Shaft-Driven TT-02 Chassis

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black mesh-type rims are paired with racing slick tyres.

The Gearbox cover can be removed by simply loosening screws on the frame.

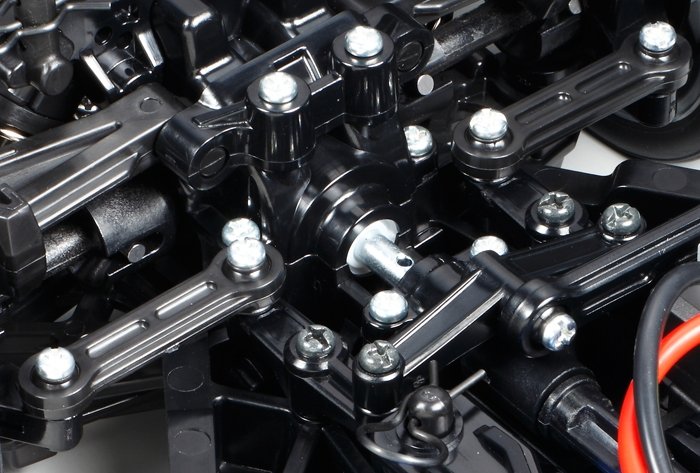

Resin ball links in the steering linkage joints make for smooth, comfortable motion.

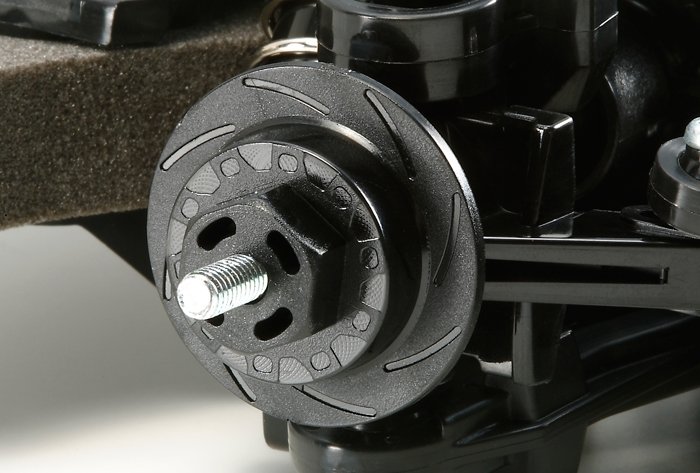

The Wheel hubs are designed to look like brake discs.

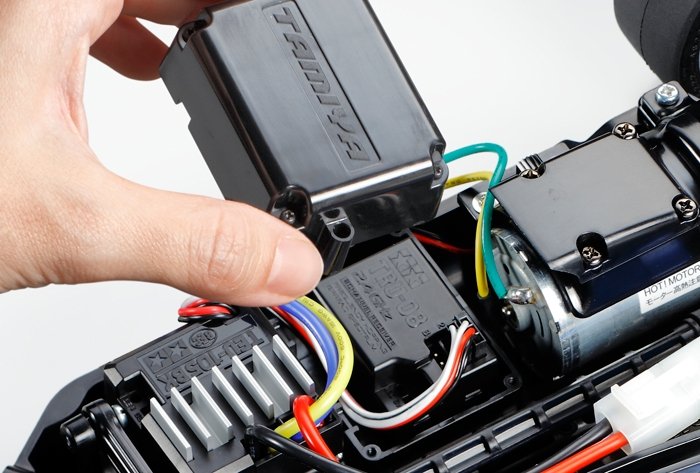

A case is included to keep the all-important receiver protected from dust and dirt.

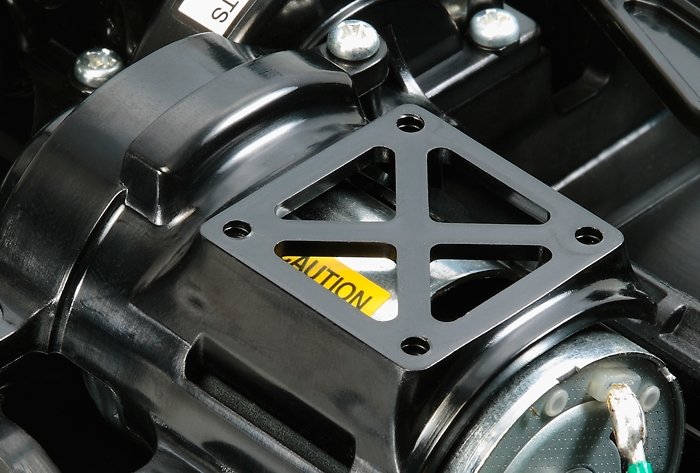

The Motor cover includes a removable cooling duct (not attached in above image).

• Highly Detailed 1/10 BRZ R&D Sport clear polycarbonate body shell
• Super Tough Bathtub Type Chassis
• Balance Longitudinal Chassis Layout
• Adjustable Wheelbase
• Shaft-Driven 4WD System

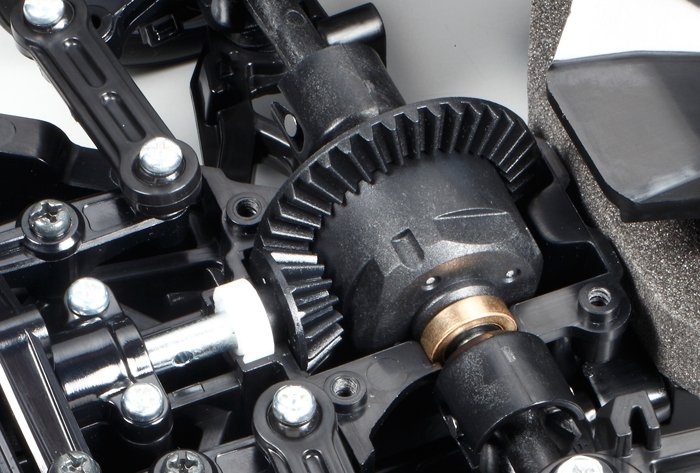

• Front/Rear 4 Bevel Resin Differentials
• 3-Piece Steering Tie-Rod System for Superior Handling
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Powerful Brushed 540 motor

• Scale: 1/10
• Length: 442mm (17.4")
• Width: 191mm (7.51")
• Height: 115mm (4.52")
• Wheelbase: 257mm (10.1")
• Body Shell: Clear Polycarbonate
• Chassis Type: TT-02
• Construction Type: Kit
• Motor: 540-Brushed Type
• Electronic Speed Control (ESC): Included
• Wheel Drive: 4WD
• Gear Ratio: 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Shocks: Friction Front & Rear
• Suspension: Fully independent double wishbone
• Terrain Use: On Road

• 7.2V NiMH Battery & Compatible Charger
• Standard Sized Servo
• 2Ch Transmitter & Receiver
• Tamiya PS Paint
