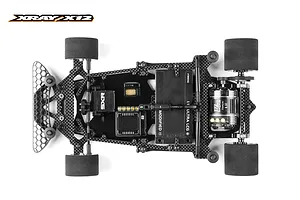

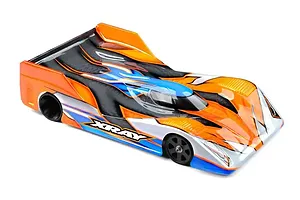

XRAY X12'25 Luxury RC Pan Car Electric 2WD 1/12 Scale Kit

XRAY X12'25 Luxury RC Pan Car Electric 2WD 1/12 Scale Kit

Brand: XRAY | SKU: XY370021
discontinued
Description
Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.

The XRAY X12'25 is the latest evolution of the dominant X12 platform, designed to elevate your 1/12 scale racing to the next level. This pro-level kit incorporates a host of innovative features, including a new one-piece chassis design that provides consistent handling and improved tweak resistance. The re-designed rear POD concept and suspension provide less drag, greater adjustability, and a lower CG. With improvements to the front suspension, steering, and chassis, the X12'25 is designed for unparalleled precision and speed. This 2WD electric pan car is built for victory, incorporating feedback from top racers and meticulous engineering from XRAY.

The X12'25 isn't just about cutting-edge design; it's about real-world performance. The chassis and suspension are optimised for a variety of track conditions, ensuring you can fine-tune the car to your exact racing style. Innovative features, such as the Snap Lockâ„¢ Bushings, make assembly and maintenance a breeze, and the adjustable battery positioning allows for perfect weight distribution. With its adjustable features, this RC car is engineered for those who demand the best and are not afraid to push the boundaries of speed and control on the track.

Further cementing its status as a top-tier choice for competitive racers, the XRAY X12'25 is backed by a legacy of championship wins, including ten European Championship titles and eight ROAR USA Championship titles. This pedigree is a testament to XRAY's commitment to excellence and the X12 platform's proven track record. Choosing the X12'25 means aligning with a lineage of winners, equipping yourself with a meticulously designed machine that's ready to dominate the competition. The X12'25 is more than just an RC car; it's a statement of intent for racers determined to secure their place on the podium.

Features

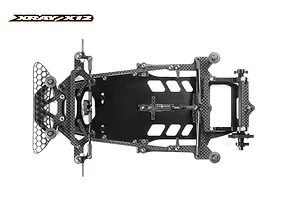

  • All-new one-piece chassis design with more consistent handling in all conditions and improved tweak resistance
  • Narrower chassis shape reduces chassis drag during cornering
  • Rear POD concept on top of chassis for less drag and improved tweak resistance
  • Adjustable POD angle controlled by a set screw at the rear of the chassis for fine-tuning
  • Rear spring location improves forward traction with increased adjustability and lower CG
  • Rear droop adjustment through rear POD spring tension that sits in a special composite adjuster
  • Universal rear spring nut holder works for both conical and linear springs
  • Ultra-light, lower CG bulkheads are the foundation of the new POD system
  • Forward centre pivot position for maximum adjustability
  • Lowered pivot holder and small diameter pivot ball offer lower roll centre positions and greater adjustment range
  • Carbon fibre top plate for centre shock and side damper mountings
  • New front lower suspension arm is 1mm narrower per side for more initial steering and increased track width adjustability
  • Hollow front kingpins improve lubrication of the front suspension
  • Aluminium steering blocks with special factory pre-pressed Teflon insert for minimal friction and smoother movement
  • New Ackermann positions improve steering characteristics
  • Narrower side brace mounting holders use M2.5 screws for weight savings
  • Extra forward battery position and backstop provides more consistent handling with improved cornering speed
  • Genuine XRAY product
Specifications
  • Length: N/A
  • Width: N/A
  • Height: N/A
  • Wheelbase: N/A
  • Weight: N/A
  • Chassis: 2.0mm Swiss 7075 T6 Aluminium
  • Suspension: Tweak-Free Front Suspension, Rear POD System
  • Drivetrain: 2WD Direct Drive
  • Motor: Not Included (540 size recommended)
  • ESC: Not Included
Included Items
  • 1x XRAY X12'25 Luxury 1/12 Scale Electric Pan Car Kit
  • 1x Set of XRAY Snap Lockâ„¢ Bushings
  • 1x Rear POD Spring (Soft, Conical/Progressive)
  • 1x Set of Aluminium Lower Arm Pivot Balls
  • 1x Set of Ride Height Adjustment Shims (0.2mm, 0.4mm, 0.6mm)
  • 1x Instruction Manual


Required Items
  • 1x 540 Size Sensored Brushless Motor
  • 1x Electronic Speed Controller (ESC) for 1/12 Scale
  • 1x 3.7V or 7.4V 1S LiPo Battery
  • 1x Battery Charger for LiPo Battery
  • 1x 2-Channel Radio System
  • 1x Steering Servo for 1/12 Scale
  • 1x 1/12 Scale Pan Car Body
  • 1x Set of 1/12 Scale Pan Car Tyres
  • 1x Pinion Gear (64 Pitch Recommended)
Note
  • This is an unassembled kit that requires building and additional items for completion. The vehicle is designed for use on prepared, high-grip surfaces such as carpet or asphalt tracks.
Specifications
RC Kit
Suited Motor/ESC Type
Electric
Factory Specs
Spur Gear
80T
Max LiPo Power
2S (7.4v)
Wheel Hex Size
12mm
Pinion Gear
Not Included
Front Shock Oil
450cSt
Rear Shock Oil
450cSt
Battery Connector
Not Included
RC Car
Completion
Kit
Drivetrain
2WD
Max LiPo Power
2S (7.4v)
On/Off Road
On Road
Chassis Type
Car
Power Source
Electric
Skill Level
Expert
Scale
1/10
