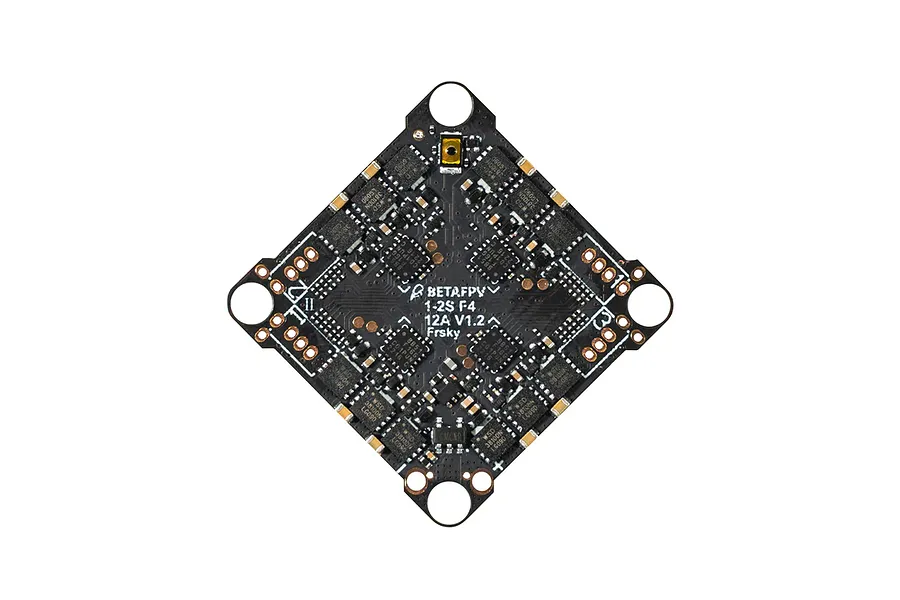

BetaFPV F4 12A AIO Brushless Fight Controller - SPI ELRS 2.4G

  • Brushless

Part no. 01040001_4

DiscontinuedNo reviews yet
1 / 6
1 / 6

Overview

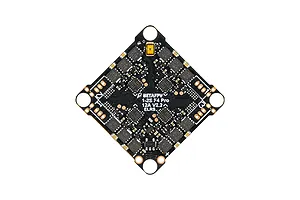

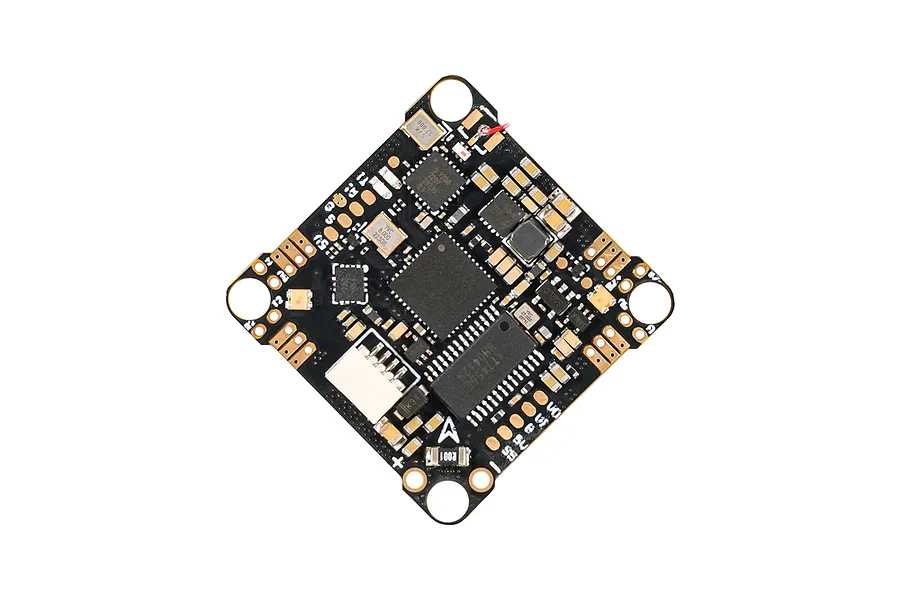

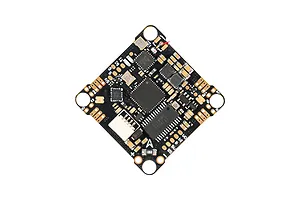

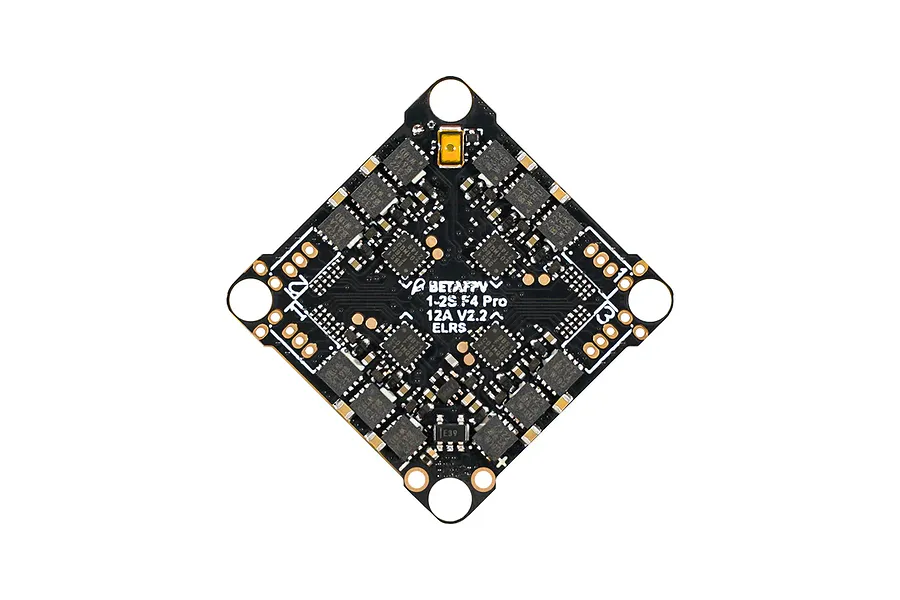

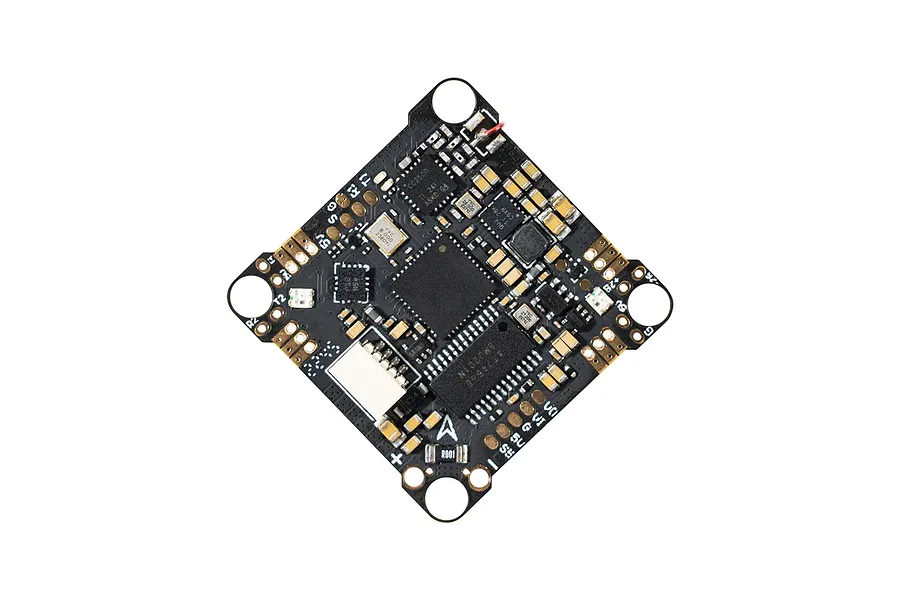

Power your micro drone build with the BetaFPV F4 12A AIO Brushless Flight Controller V2.2, a versatile and high-performance core for demanding setups. This All-In-One (AIO) FC integrates a potent 12A continuous (25A peak) ESC, supporting 1S-2S LiPo input, providing significantly more power than common 1S 5A ESCs. It's the default flight controller for the Cetus X brushless quadcopter and an excellent choice for 85mm whoops like the Meteor85, or agile 3-inch toothpick drones. Featuring a robust STM32F411CEU6 CPU and BMI270 gyro, along with built-in SPI ExpressLRS 2.4G or Frsky receiver options, it ensures a reliable and responsive flight experience. Large motor soldering pads simplify assembly, and integrated features like a current meter and programmable RGB LEDs add to its appeal.

Note

The ESC uses Bluejay BB51 firmware and can be configured via BLHeliSuite or ESC-Configurator.

Ensure your receiver version (ELRS or Frsky) matches your transmitter.

Please visit the BetaFPV website for information on firmware and software.

Features

  • F411CEU6 CPU with robust BMI270 gyro (SPI connection)
  • Integrated 12A continuous / 25A peak ESC (BB51 hardware)
  • Supports versatile 1S-2S LiPo input voltage
  • Built-in SPI receiver options (ExpressLRS 2.4G or Frsky)
  • Includes built-in BetaFlight OSD and current meter
  • Features 2 programmable RGB LEDs for custom lighting
  • Large motor soldering pads designed for easier assembly
  • Standard 26mm x 26mm (1.02" x 1.02") mounting hole pattern (whoop style)

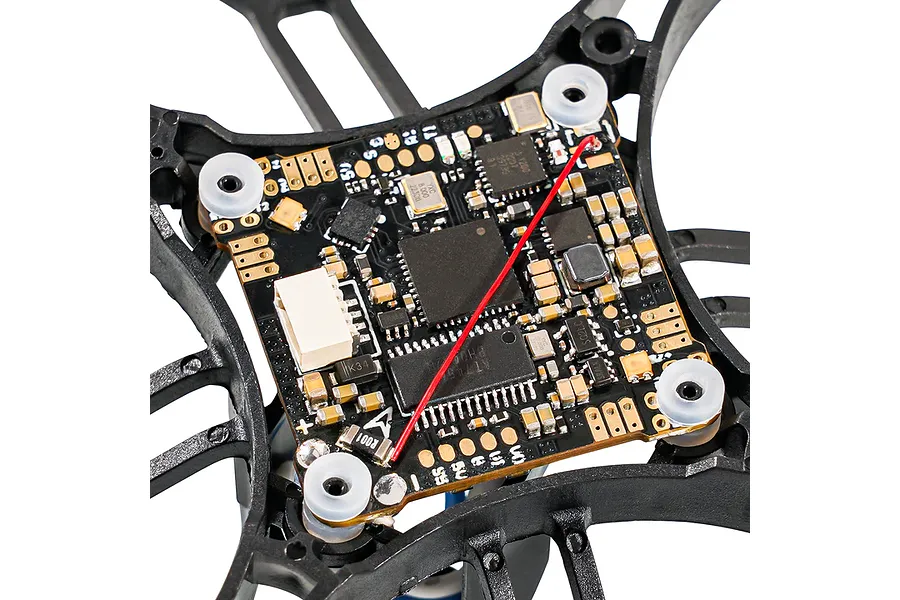

  • Ideal for 85mm whoops and 3" toothpick drone builds
  • Genuine BetaFPV Product

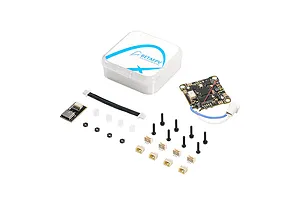

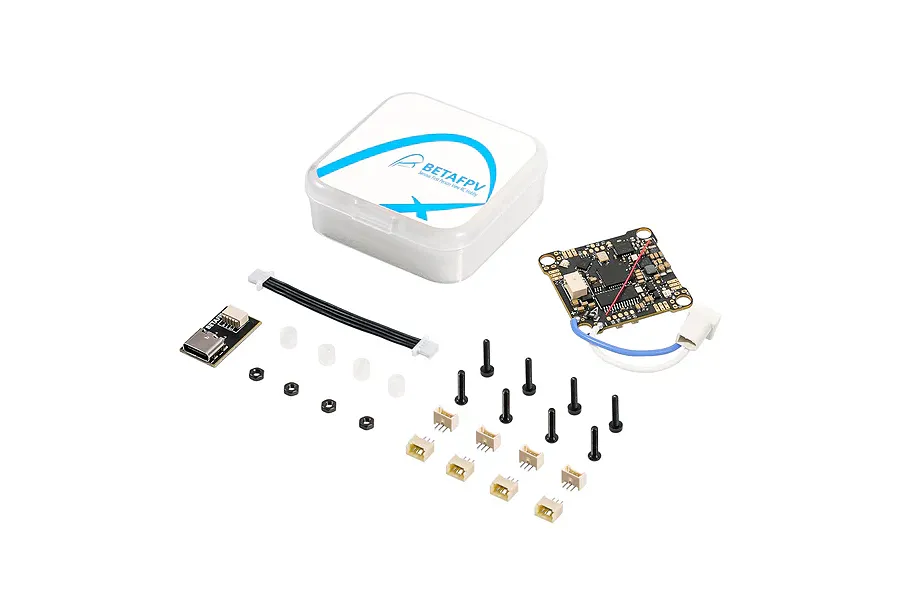

In the box

  • 1x BetaFPV F4 1S 12A AIO Brushless Flight Controller
  • 4x Anti-vibration Rubber Dampers
  • 4x M2 x 10mm Screws
  • 4x M2 Screw Nut
  • 8x PH-1.25 Connectors for Motor
  • 1x SH1.0 4-Pin Cable
  • 1x SH1.0 4-Pin to USB Type-C Adapter

You'll need

  • 1x Brushless Motors (compatible with 12A ESC)
  • 1x RC Frame (26x26mm mounting pattern)
  • 1x Propellers
  • 1x LiPo Battery (1S-2S)
  • 1x Radio Transmitter (matching receiver on FC)

Highlights

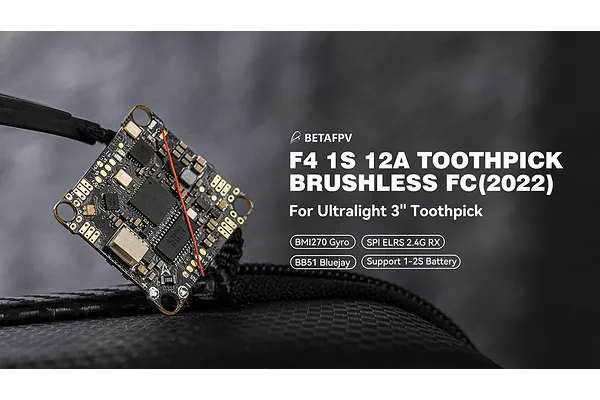

Powerful 1S 12A AIO Flight Controller

Powerful 1S 12A AIO Flight Controller

Ideal for ultra-lightweight 3" toothpicks and 85mm whoop drones, this F4 1S 12A AIO Flight Controller delivers superior power with its integrated 12A ESC. It boasts a built-in current meter, programmable RGB LEDs, SPI ELRS/Frsky receiver, and large pads for easy soldering and external device connections.
