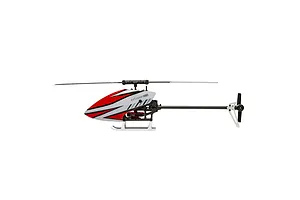

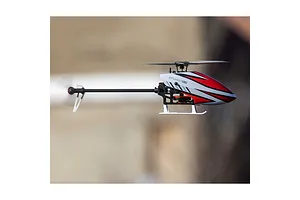

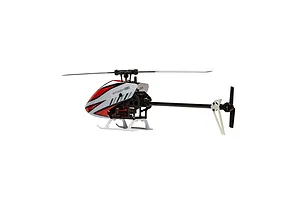

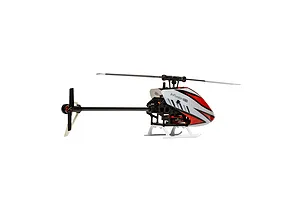

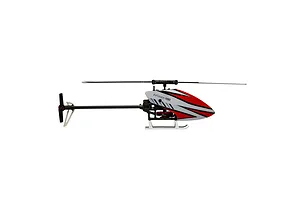

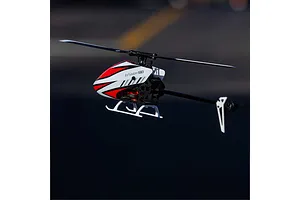

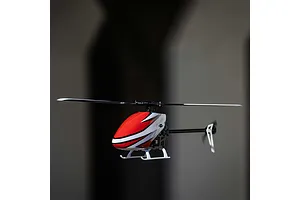

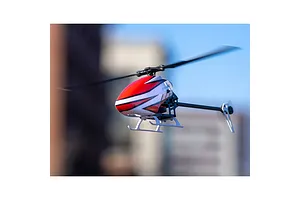

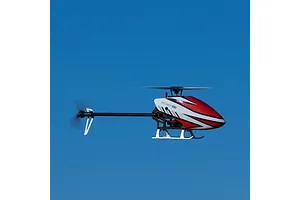

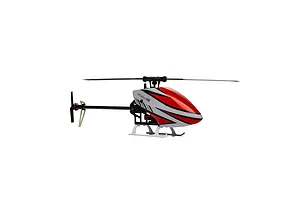

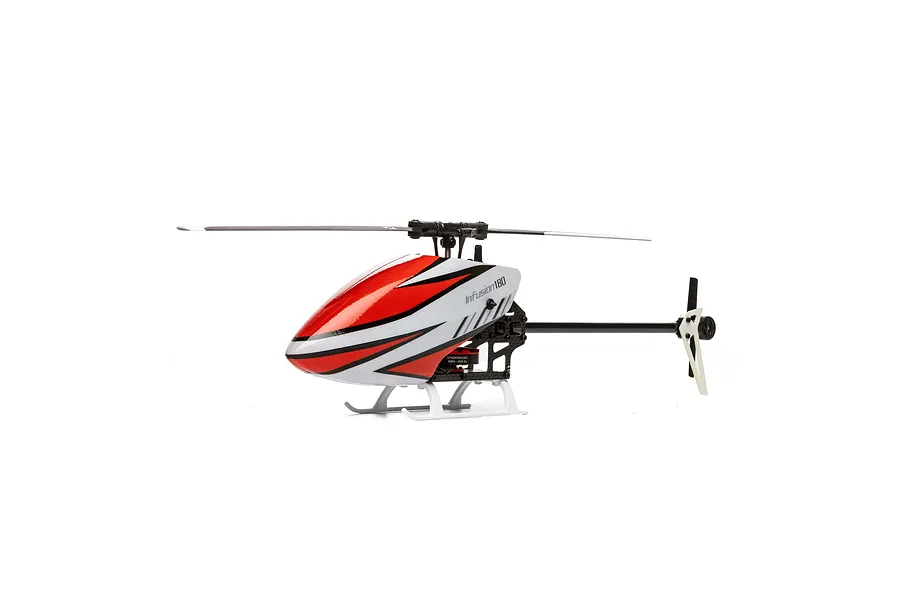

Blade 180 InFusion Basic BNF RC Helicopter
Featuring the latest advancements in Spektrum™ technology, the Blade® InFusion™ 180 Smart helicopter continues the legacy of the Blade Fusion line and is the perfect first high-performance collective pitch helicopter for intermediate heli pilots. With the popular 180 size, Blade has taken a fresh approach in redeveloping the InFusion 180 by adding integrated SAFE® and Smart technology, all carbon fibre and aluminium construction, improved power system package, and more. Easy to fly and easy to see in the air, it is designed to help pilots progress from simple manoeuvres to advanced 3D stunts with confidence. This powerhouse features lightweight carbon fibre and anodised aluminium construction, presenting exceptional rigidity and durability. Plus, with the inclusion of Smart Technology, battery charging and power system management is now easier than ever and virtually worry free. The expertly tuned Spektrum AR6251MHX flight controller is ready for a non-computer transmitter such as a DXS and expands its capability with a more advanced Spektrum aircraft transmitter. Pilots get kit level quality in a Bind-N-Fly package. For intermediate-level pilots, the InFusion 180 delivers one of the best flying Blade models to date!
The Blade® inFusion™ 180 Smart helicopter features exclusive SAFE® (Sensor Assisted Flight Envelope®) technology, a revolutionary electronic flight envelope protection system that makes it easy for anyone to fly helicopters with confidence by providing flight mode versatility and Panic Recovery mode that automatically returns the heli to a level attitude.

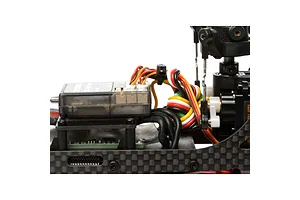

The Spektrum™ Avian™Smart Lite 20 amp ESC transmits Smart Battery and ESC data straight to your Spektrum Transmitter all over one wire. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM. The Avian ESC 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked in and active throttle response.

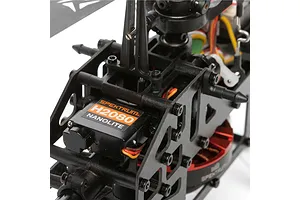

Cutting-edge Spektrum technology is featured throughout this beast, from Spektrum H2080 servos with Optimised Servo Geometry to the new ground-breaking Spektrum AR6251MHX flybarless system. This new flybarless controller features advanced adaptive flight control algorithms, forward programming, 6-axis M.E.M.S. inertial sensor, low-latency high-speed operation, two remote receiver ports for diversity, and a vibration rejecting aluminium lower case.

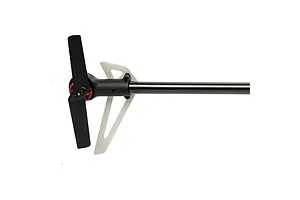

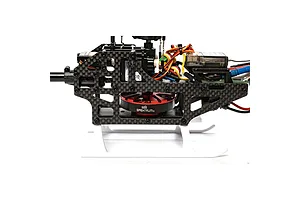

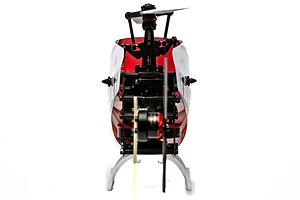

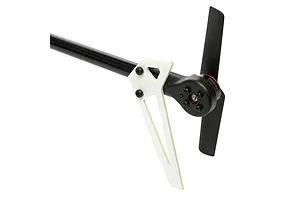

The all-carbon fibre and aluminium main frame takes rigidity to another level for a rock-solid flight experience. The carbon fibre main rotor blades feature an improved aerodynamic design with increases to efficiency and power. An oversized tail boom eliminates the need for boom supports and is crowned by an ABS plastic tail case with direct drive power system improving vibration damping and performance.
The InFusion 180 features best-in-class micro servos providing super-fast speed and extremely accurate position holding. Each features a fully metal gear drive train for increased durability and precision.
he InFusion 180 features a direct drive main motor power system allowing for instant power with fewer parts and maintenance when compared to a gear-driven main rotor. The motor shaft itself is made of hardened steel and is nearly indestructible.
- Blade® InFusion™ 180 Smart helicopter features exclusive SAFE® (Sensor Assisted Flight Envelope®) Technology

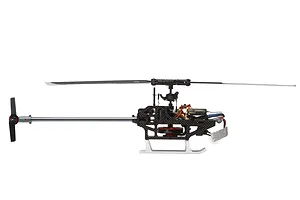

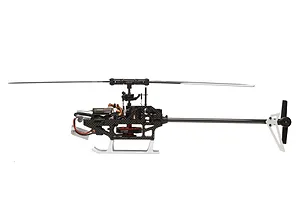

- All-carbon fibre and aluminium main frame takes rigidity to another level for a rock-solid flight experience

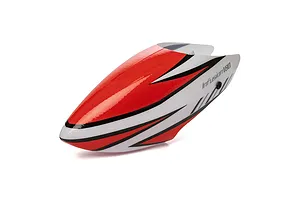

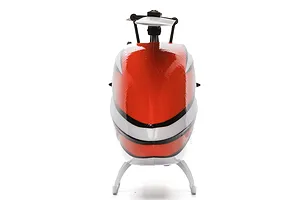

- Fusion 180 features an expertly painted Plastic canopy and matching tail fin that is both attractive and purposeful
- Fusion 180 Smart features an updated landing gear, offering a better stance for take off and landing
- An Avian 20 amp electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM
- Approximate Build Time: Less Then One Hour
- Skill/Completion Level: Level 2 Bind-N-Fly Basic
- Swashplate Type: 120 Degree CCPM
- Product Length/Width/Height: 394mm (15.5in) / 65mm (2.55in) / 118mm (6.64in)
- Product Weight: 280g (9.8oz)

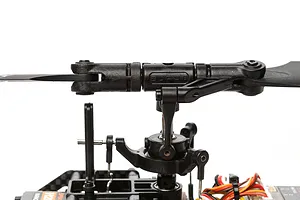

- Main Rotor Head Type: Collective Pitch Flybarless

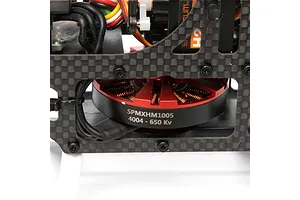

- Main Motor Size/Type: 4004-650KV
- Tail Motor Size/Type: 1104-5500KV
- Main Rotor Diameter/Blade Length: 400x180mm (15.74/7.08in)
- Tail Rotor Diameter Length: 75mm (2.95in)
- Main Frame/Blade Material: Carbon Fibre
- Canopy/Body Material: Plastic
| Description | QTY | Description | QTY |
|---|---|---|---|
| 180mm Plastic Main Rotor Blade | 1 | Micro Digital Metal Geared Heli Cyclic Servos | 3 |
| 65mm Composite Plastic Tail Rotor Blades | 2 | Spektrum AR6251MHX Flybarless Flight Controller | 1 |
| Spektrum 4651T 2.4GHz DSMX® Receiver with Telemetry | 1 | Spektrum™ Avian™ Smart 20 amp ESC | 1 |
| Product Manual | 1 | Brushless Outrunner Motor 650Kv | 1 |
