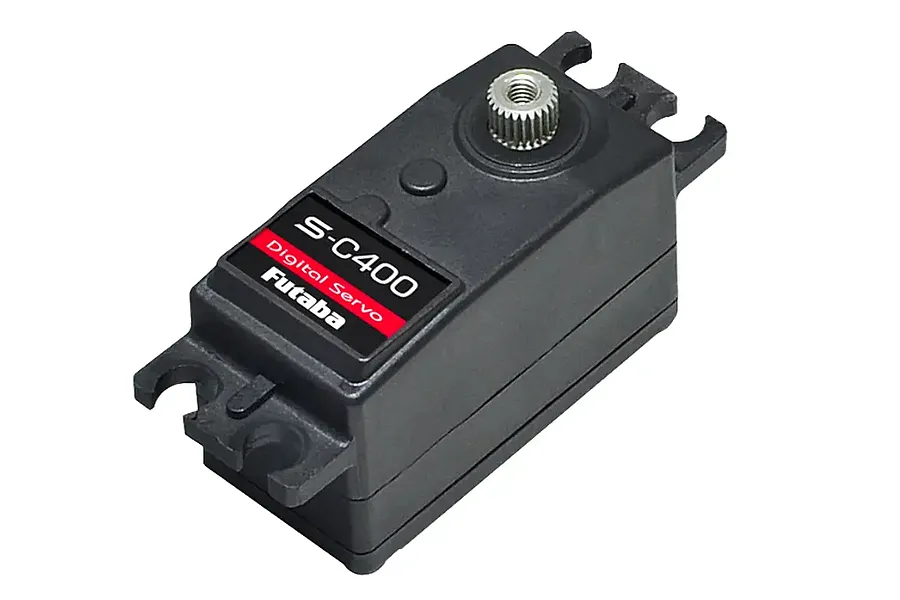

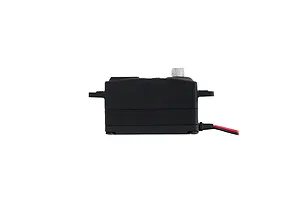

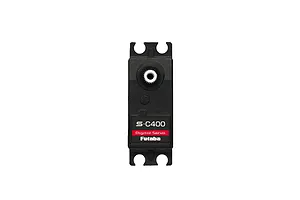

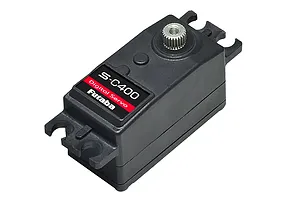

Futaba S-C400 8kg 7.4V S.Bus Low Profile Coreless Metal Geared Servo
Videos
Futaba S-C400 8kg 7.4V S.Bus Low Profile Coreless Metal Geared Servo
Brand:
Futaba
|
MPN: S-C400
$166.01
or 4 fortnightly payments of $41.50 with
Pay later with
Want more than 1?
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description
Upgrade your 1/10 touring car or buggy with the Futaba S-C400 Low Profile Digital Servo. This servo boasts a compact design for easy installation, powerful coreless motor technology, S.BUS compatibility, UR/SR support, and durable metal gears for reliable performance under demanding conditions.
Features
- Low profile design for touring cars and buggies with tight space requirements
- Powerful and responsive coreless motor
- S.BUS compatibility for modern setups
- Supports UR and SR Modes
- Durable metal gears for longevity
- Genuine Futaba product
Included Items
- 1x Futaba S-C400 8kg 7.4V S.Bus Low Profile Coreless Metal Geared Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Videos
Specifications
-
Torque (6.0V)
- N/A
-
Torque (7.4V)
- 8.0 kg-cm (111.2 oz-in)
-
Torque (8.2V)
- N/A
-
Speed
- 0.08sec/60° @ 7.4 volts
-
Weight
- 43 grams (1.52 oz)
-
Operating Voltage
- N/A
-
Bearing Type
- N/A
-
Motor Type
- Coreless
-
Operating Temperature
- N/A
-
Refresh Rate
- N/A
-
Total Height (A)
- N/A
-
Body Width (B)
- 45 mm
-
Below Mount (C)
- 16 mm
-
Above Mount (D)
- 9.4 mm
-
Total Length (E)
- 54.5 mm
-
Total Width (F)
- 18 mm
Servo
-
Body Length (B)
- 45mm
-
Bottom to Under Mount (C)
- 16mm
-
Top to Under Mount (D)
- 9.4mm
-
Length (E)
- 54.5mm
-
Width (F)
- 18mm
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Aluminium
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 6.6
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.10
-
7.4V Torque kg/cm
- 8
-
7.4V Sec/60 Degrees
- 0.18
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
