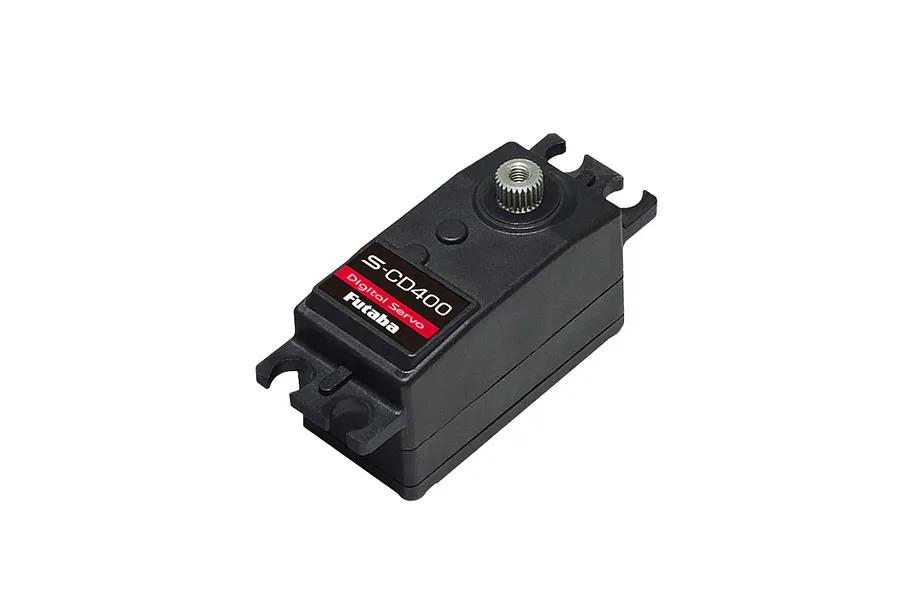

Futaba S-CD400 Low Profile 8kg 7.4V Brushless Metal Geared Servo

  • Brushless

Part no. S-CD400

Sold outNo reviews yet

$156.15

or 4 fortnightly payments of $39.04 with afterpay or PayPal, or zip

The Futaba S-CD400 Low Profile Drift Servo Is Engineered For Competition, Offering A 0.08 Second Speed For Lightning-Fast Response

  • Specialised Design For Low Latency Usage
  • Ultra-Fast 0.08 Second Speed
  • Futaba UR And S.BUS Mode Compatible
  • Low Profile Case For A Perfect Fit
  • High-Performance Coreless Motor
$156.15

Overview

Get the lightning-fast response needed for competitive RC drifting and driving with the Futaba S-CD400 Low Profile Servo. This servo has been specifically designed for the demands of competitio, where quick and precise counter-steering is the key to holding a perfect line. Its ultra-fast 0.08-second transit speed gives you the instant reaction time you need to make corrections and get to the podium.

The S-CD400 is more than just fast; it's smart. It is compatible with Futaba's high-speed UR and S.BUS communication modes, which provide the most direct and responsive connection possible between your transmitter and the servo. Inside, a high-performance coreless motor and a durable gear train with metal and aluminium gears ensure smooth, reliable performance. Its low-profile design makes it a perfect fit for most 1/10 scale drift and touring cars.

Features

  • Specialised design suitable for competitive RC drift and on-road applications
  • Ultra-fast 0.08 sec transit speed for instant counter-steering
  • Compatible with Futaba's high-speed UR and S.BUS modes
  • High-performance coreless motor for smooth and quick response
  • Durable hybrid gear train with metal and aluminium gears
  • Genuine Futaba Product

In the box

  • 1x Futaba S-CD400 Low Profile Coreless Servo
  • 1x Servo Horn Set

Specifications

Torque(6.0V)6.6 kgf-cm (N/A oz-in)
Torque(7.4V)8.0 kgf-cm (N/A oz-in)
Speed0.10 sec (6.0V)
Speed0.08 sec (7.4V)
Weight43 g (1.52 oz)
Operating Voltage6.0V - 7.4V
Bearing TypeN/A
Motor TypeCoreless
Gear TypeMetal and Aluminum
Operating TemperatureN/A
Refresh RateN/A

Servo

SizeConventionally sized servo namesLow Profile
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range7.4V, 6V
Case MaterialResin
Drive Motor TypeCoreless
Rotational Degrees180°
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline6.6
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.10
7.4V Torque kg/cm8
7.4V Sec/60 Degrees0.08
Signal TypeDigital
