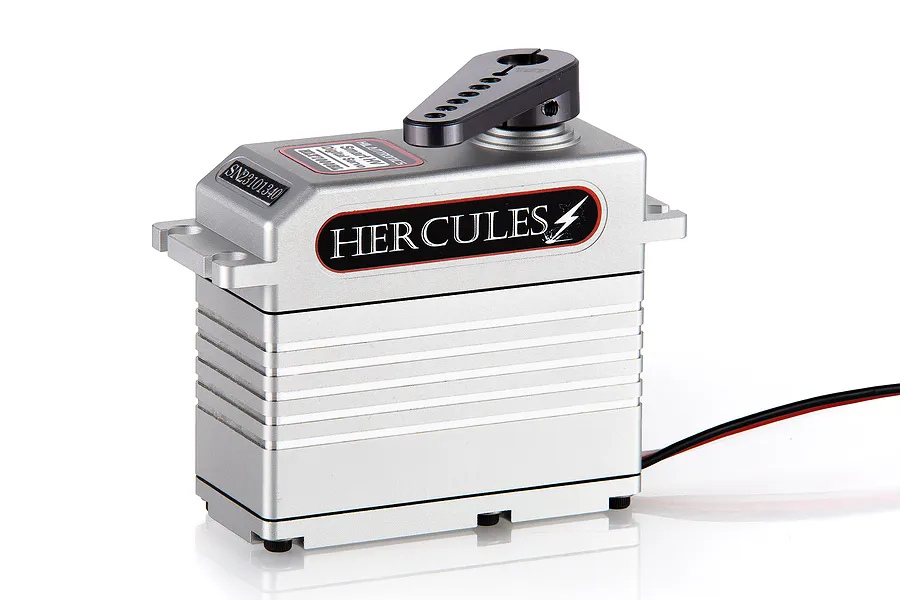

HiLantronics 1/5 Silver Aluminium HLT7000BL 77kg 8.4v Metal Geared Waterproof Servo w/ Aluminium Servo Horn

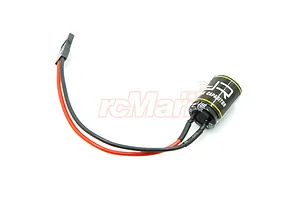

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Unbreakable full billet casing, waterproof *, 15T gear teeth, heavy duty metal gears, quality core metal motor, smart digital signal controller with Led status signals for diagnostic, quick disconnect servo lead, current limiter, and over temperature shut down if servo ever got stuck to prevent the controller board from being burnt out, automatic shutdown if no RX signals present.
* Servo is splash and waterproof but submerging is not recommended
- Full CNC Machined Aluminium cashing
- Waterproof design
- LED status lights for diagnostics
- Quick disconnect servo lead
- Incorporates a current limiter function
- Casing is anodised in Silver
- Manufactured in Australia
- Genuine HiLantronics product
- LED Signal Status
- Green Flashing: No Radio Signal / Inactive
- Red Flashing: No Radio Signal / Low Battery / Inactive
- Green ON: Active
- Red ON: Low Battery voltage (Below 7 Vdc)
- Red/Green ON: Safe Mode (Current Limited)
- Torque(6.0V):- kg-cm (- oz/in)
- Torque(7.4V):- kg-cm (- oz/in)
- Torque(8.4V):- kg-cm (- oz/in)
- Speed: - sec (6.0V) ? - sec (7.4V) | - sec (8.4V)
- Operating Voltage?7.4 ~ 8.4 DC Volts
- Weight: 282 g (10.2 oz)
- Bearing Type?Ball Bearing x 2
- Motor Type?Brushless Motor
- Gear Type?Metal
Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
- Total Height (A) = 69mm
- Body Width (B) = 69mm
- Below Mount (C) = 44.5mm
- Above Mount (D) = 11.45mm
- Total Length (E) = 82.15mm
- Total Width (F) =30mm
| Description | QTY |
|---|---|
| Silver Aluminium HLT7000BL 1/5 77kg 8.4v Metal Geared Waterproof Servo | 1 |
| Aluminium 15T Servo Horn | 1 |
| Hardware Set | 1 |
- Servo requires 3 to 5Vdc square wave pulse. Pulse duration is from 0.9mS to 2.1mS with 1.5mS as the center. Servos can be operated within a 6V-8.4V. range. The Black wire is 'ground', the Red wire ( center ) is 'power' and the third wire (white) is 'signal'.
| Servo | |
|---|---|
| Size: | 1/5 |
| Gear Material: | Metal |
| Waterproof Casing: | Yes |
| Servo Spline Count: | 15tooth |
| Signal Type: | Digital |
| Input Voltage Range: | 7.4V, 8.4V |
| Drive Motor Type: | Brushless |
| Case Material: | Metal |
| Rotational Degrees: | 360 |
| Total Height: | 69mm |
| Body Length: | 69mm |
| Bottom to Under Mount: | 44.5mm |
| Top to Under Mount: | 11.45mm |
| Total Length: | 82.15mm |
| Total Width: | 30mm |
| 7.4V Torque kg/cm: | 68 |
| 8.4V Torque kg/cm: | 77 |
| 7.4V Sec/60 Degrees: | 0.22 |
| 8.4V Sec/60 Degrees: | 0.20 |
