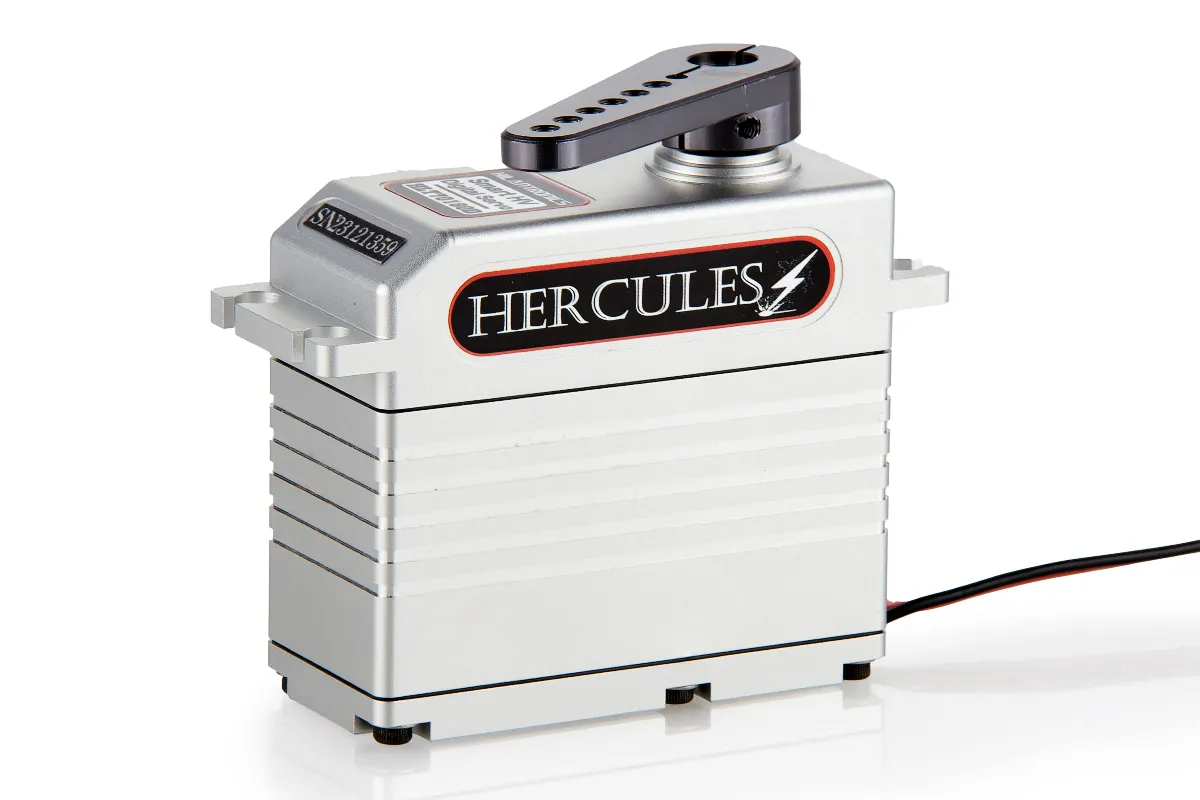

HiLantronics Silver Aluminium HLT70180D 1/5 70kg 8.4v Metal Geared Waterproof Servo w/ Aluminium Servo Horn
HiLantronics HLT70180D 1/5 scale 70kg 8.4V waterproof servo with CNC aluminium casing, LED diagnostics, current limiter, and aluminium 15T servo horn. Made in Australia.
- 70kg-cm torque at 8.4V — suitable for 1/5 scale vehicles
- Full CNC machined aluminium casing, anodised Silver, manufactured in Australia
- Waterproof with LED diagnostic status lights
- Current limiter and over-temperature shutdown protection
- Includes aluminium 15T servo horn and hardware set
Servos are powered by the ESC's output to the receiver. If you are using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth current delivery. In some cases, an external BEC may need to be installed.
The HLT70180D features an unbreakable fully billet casing, waterproof design, 15T gear teeth, heavy duty metal gears, quality core metal motor, and a smart digital signal controller with LED status signals for diagnostics. Also includes a quick disconnect servo lead, current limiter, and over-temperature shutdown to prevent the controller board from being burnt out if the servo gets stuck. Automatic shutdown occurs if no RX signals are present.
- Full CNC machined aluminium casing
- Waterproof design
- LED status lights for diagnostics
- Quick disconnect servo lead
- Incorporates a current limiter function
- Casing is anodised in Silver
- Manufactured in Australia
- Genuine HiLantronics product
- LED Signal Status: Green Flashing = No Radio Signal / Inactive
- LED Signal Status: Red Flashing = No Radio Signal / Low Battery / Inactive
- LED Signal Status: Green ON = Active
- LED Signal Status: Red ON = Low Battery voltage (below 6 Vdc)
- LED Signal Status: Red/Green ON = Safe Mode (Current Limited)
- Torque (6.0V): 57 kg-cm (792 oz/in)
- Torque (7.4V): 62 kg-cm (861 oz/in)
- Torque (8.4V): 70 kg-cm (972 oz/in)
- Speed: 0.25 sec (6.0V) / 0.20 sec (7.4V) / 0.18 sec (8.4V)
- Operating Voltage: 6.0 ~ 7.4 ~ 8.4 DC Volts
- Weight: 280g (10.2 oz)
- Bearing Type: Ball Bearing x 2
- Motor Type: Brushed Motor
- Gear Type: Metal
- Total Height (A): 69mm
- Body Width (B): 67mm
- Below Mount (C): 44.8mm
- Above Mount (D): 24.7mm
- Total Length (E): 82mm
- Total Width (F): 31mm
- 1x Silver Aluminium HLT70180D 1/5 70kg 8.4V Metal Geared Waterproof Servo
- 1x Aluminium 15T Servo Horn
- 1x Hardware Set
Servo requires 3 to 5Vdc square wave pulse. Pulse duration is from 0.9mS to 2.1mS with 1.5mS as center. Servos can be operated within a 6V–8.4V range. The Black wire is ground, the Red wire (center) is power, and the third wire (White) is signal.
-
Height (A)
- 69mm
-
Body Length (B)
- 67mm
-
Bottom to Under Mount (C)
- 44.8mm
-
Top to Under Mount (D)
- 24.7mm
-
Length (E)
- 82mm
-
Width (F)
- 31mm
-
SizeConventionally sized servo names
- 1/5
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 15Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 70
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.25
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
