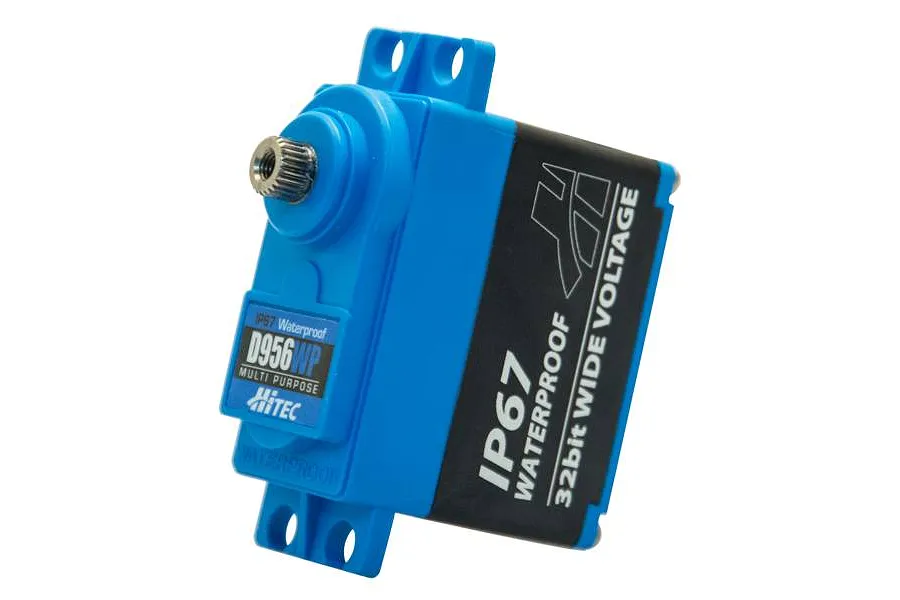

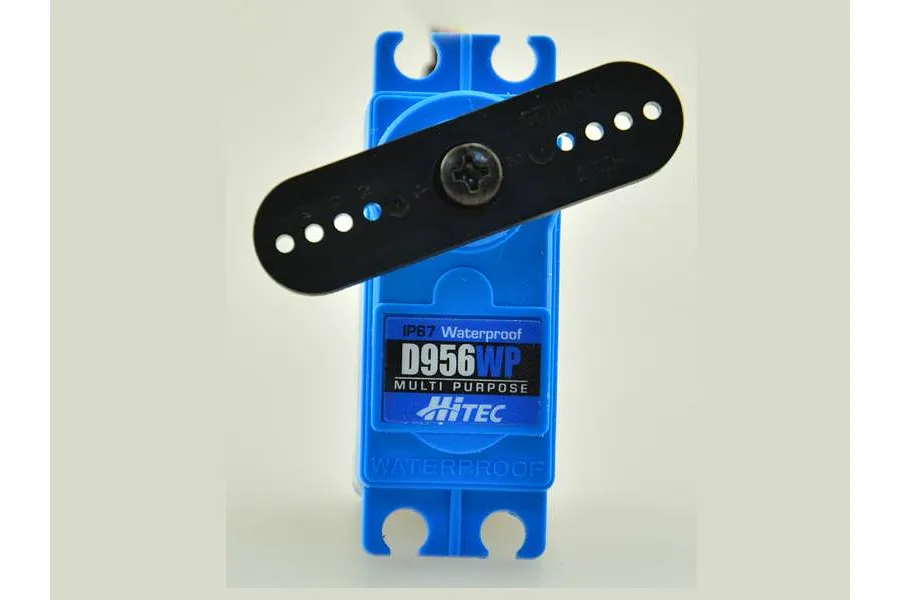

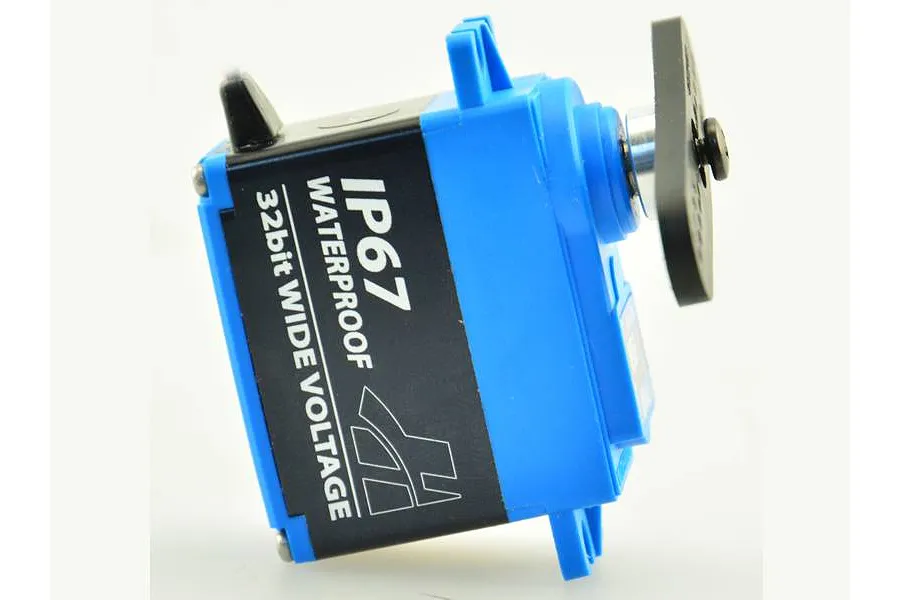

Hitec D956WP Standard 29kg 7.4v Metal Geared Waterproof Servo

Part no. HRC36956

Sold outNo reviews yet
1 / 4
1 / 4

Videos

Now $165.55was $195.82 You Save $30.27

Sale now on

or 4 fortnightly payments of $41.39 with afterpay or PayPal, or zip

Ordered 3 Nov · we're waiting on our supplier

In stock now: similar

Will it fit?

Check fit: add your vehicle to My GarageFits 4 vehicles

Videos

Overview

The D956WP has arrived! Based off the D954SW servo, this IP-67 rated version is the true waterproof, dust resistant upgrade for 1/10th-scale Rock Crawlers and Off-Road Trucks. As with the entire "D" line, this technologically-advanced servo is powered by a 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) with Smart Sense engineering and rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the D956WP produces the torque and reliability required to take bashers to the next level.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline
  • Coreless Metal Brush Motors
  • Nylon Reinforced Plastic Upper and Lower Case
  • Diamond Cut Aluminum Heat Sink Center Case
  • Water Resistant and Waterproof Case
  • Programmable Functions*
  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset

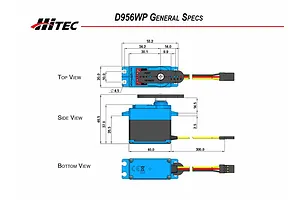

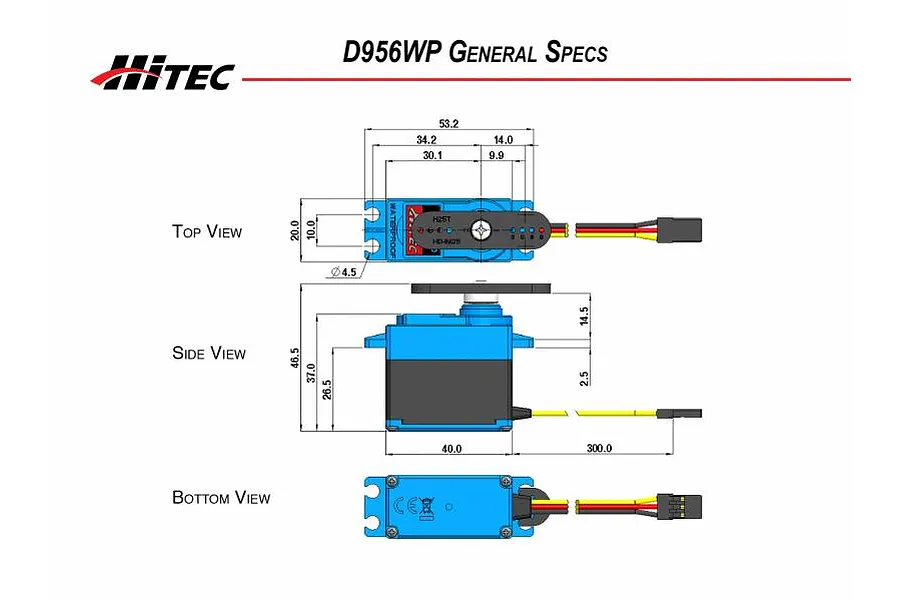

Specifications

Total Height (A)46.5mm
Body Width (B)40mm
Below Mount (C)26.5mm
Above Mount (D)14.5mm
Total Length (E)53.2mm
Total Width (F)20mm

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingYes
Case MaterialPlastic
Height (A)46.5mm
Body Length (B)40mm
Bottom to Under Mount (C)26.5mm
Top to Under Mount (D)14.5mm
Length (E)53.2mm
Width (F)20mm
Drive Motor TypeBrushed
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline29
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.12
Signal TypeDigital
