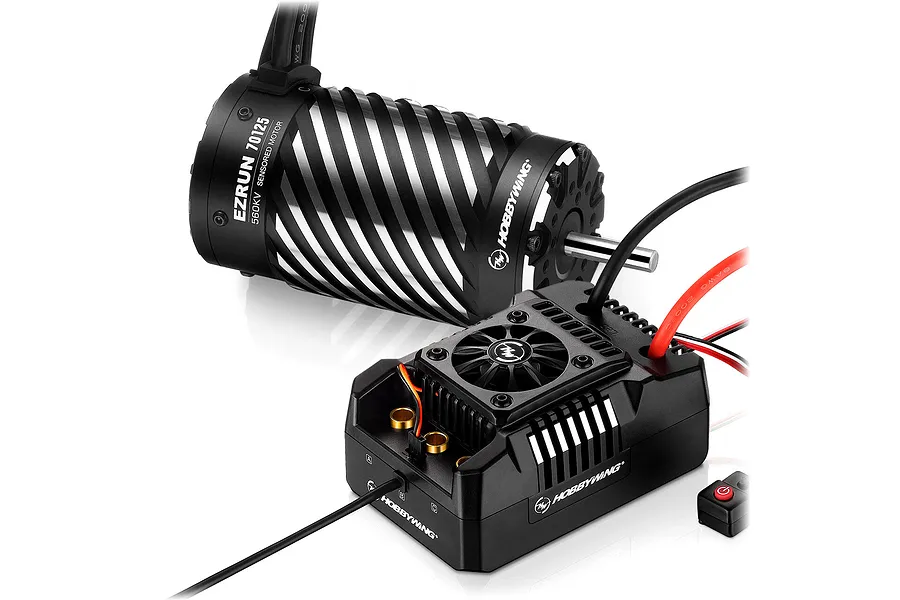

Hobbywing Ezrun MAX4 300A HV ESC & 70125SD 560kV Sensored Motor Combo

Part no. 38020369

3 in stock5.0
1 review

$916.29

or 4 fortnightly payments of $229.07 with afterpay

Hobbywing Ezrun MAX4 300A HV ESC and 70125SD 560kV sensored motor combo — high-current BEC, fireproof circuitry, for 1/4 and 1/5 scale models.

  • Full sensored combo for extra large 1/4 and 1/5 scale models
  • Built-in super high-current BEC — up to 25A, switchable between 6V, 7.4V and 8.4V
  • CNC-milled aluminum housing and high-quality durable materials
  • Four sintered NdFeB magnets for super torque and explosive power
  • Fireproof circuitry and multiple built-in protections
Select Male Connector
Select Wiring Configuration

Pay later with afterpay zip PayPal

  • 3 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

6S LiPo Compatibility

The Hobbywing MAX8 ESC manual notes that the warranty does not extend to issues resulting from 6S LiPo configurations. Please visit the Hobbywing website for information and consult the manual for proper operation guidelines.

The Ezrun MAX4 ESC works best with the included 70125 SD 560kV motor for extra large 1/4 and 1/5 scale models. This fully sensor-controlled combo can be used in many ways in such models, whether it's a heavy-duty off-roader or a truck.

So if you like large models and you want the most fun out of it, the MAX4 combo is high-quality equipment that literally bursts with exploding power. And even with its enormous size, care was taken to use high-quality and, above all, durable materials in the construction. After all, both the ESC and the motor should ensure that driving fun lasts as long as possible. Even the electronic switch is well protected against damage. In addition, the Ezrun MAX4 has a built-in super high-current BEC, which can provide a max. output power of up to 25A. The output voltage can be switched between 6V, 7.4V and 8.4V. The high-current BEC was developed in such a way that it can supply the current high-current servos with sufficient power if required, and thus be able to precisely control the appropriate large models.

Features

  • Full sensored combo
  • Super powerful switch mode BEC with a constant current of 10A, instant 25A and the ability to switch between 6V, 7.4V and 8.4V
  • Fireproof circuitry to protect the battery connector, as well as many built-in protections
  • Versatile programmable
  • Real time data recording
  • CNC-milled aluminum housing, 0.2mm silicon steel sheets and other high-quality building materials
  • Four sintered NdFeB magnets for super torque, stable performance and explosive power
  • Innovative new sensor interface
  • Waterproof and dustproof thanks to the rubber cover of the bearings
  • Independent, high-precision encoder in the motor to communicate the rotor position without any interference
  • More power and less heat development with the same load

In the box

  • 1x Hobbywing EzRun Max4 HV ESC
  • 1x EzRun 70125 560kV Brushless Sensored Motor
  • Mounting Hardware and Accessories
  • 1x Instruction Manual

Specifications

ESC Specifications
Length125mm (4.92")
Width85mm (3.35")
Height61.7mm (2.43")
Weight775.4g (27.35oz)
Continuous/Peak Current300A/2000A
WaterproofYes
Motor Limit12S LiPo: KV ≤ 600KV (70125 Size Motors)
BEC6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Voltage Limit6-12S LiPo
ProgrammableYes (via LED Program Box, LCD Program Box, WiFi Module, OTA Programmer)
Scale1/5th
SensoredYes
Motor Specifications
Diameter70mm (2.76")
Length125mm (4.92")
Shaft Diameter8mm (0.32")
Shaft Length30mm (1.18")
Weight1995g (70.37oz)
KV Rating560KV
Poles4
Resistance0.0050Ω
No-Load Current3.6A
LiPo Cells8-12S

Motor

TypeSensored
KVRPM (Revolutions Per Minute) per Volt560KV
LengthLength of the motor can in mm125mm
DiameterDiameter of the motor can70mm
Shaft Diameter8mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage44.4V
Waterproof DesignYes
Burst Amps2000A
Continuous Amps300A
Motor Connectors8.0mm Bullet
Battery ConnectorBare Wires
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.4V, 8.4V
Dual MotorNo
