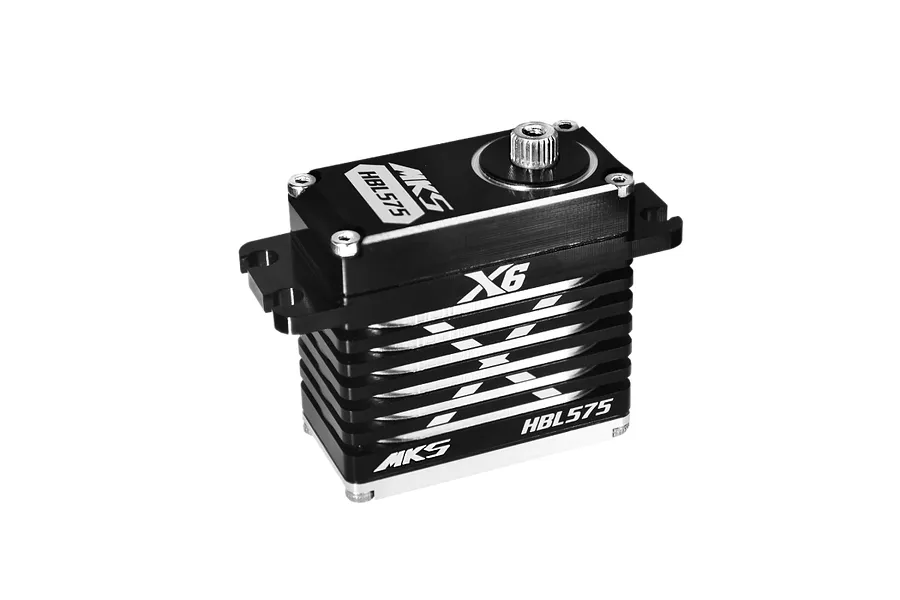

MKS Black Aluminium HBL575 Standard 24kg 8.4V Brushless Metal Geared Servo

  • Brushless

Part no. S0026001

3+ in stockNo reviews yet

Videos

Now $286.19was $317.99 You Save $31.80

Sale now on

or 4 fortnightly payments of $71.55 with afterpay or PayPal, or zip

  • 3+ in stock · Ships Thursday · order by Thursday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Videos

Overview

Experience the exceptional power, responsiveness, and long-term durability of the MKS Black Aluminium HBL575 servo. Its premium design, featuring a CNC-machined aluminium case with a finned design for superior cooling and titanium gears, delivers top-notch performance for your most demanding projects.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Substantial torque for your RC models or vehicles
  • Lightning-fast speeds for precise control
  • Durable brushless motor along with robust titanium gears for long lasting performance
  • CNC-machined aluminium case with fins for effective heat dissipation and protection
  • High voltage operation (6.0v-8.4v)
  • Genuine MKS Product

In the box

  • 1x MKS Black Aluminium HBL575 24kg 8.4V Standard Brushless Titanium Geared Servo

Specifications

Torque18 kg-cm (6.0V) / 250 oz-in
Torque22 kg-cm (7.4V) / 305.5 oz-in
Torque24 kg-cm (8.4V) / 333.3 oz-in
Speed0.082 s (6.0V) / 0.066 s (7.4V) / 0.06 s (8.4V)
Weight71.4 g (2.51 oz)
Operating Voltage6.0V ~ 8.4V DC Volts
Bearing TypeDual Ball Bearing
Motor TypeBrushless
Operating TemperatureN/A
Refresh Rate333hz
Total Height (A)42.6 mm
Body Width (B)49.5 mm
Below Mount (C)27.3 mm
Above Mount (D)14.3 mm
Total Length (E)50 mm
Total Width (F)20 mm

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialTitanium
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium
Height (A)42.6mm
Body Length (B)49.5mm
Bottom to Under Mount (C)27.3mm
Top to Under Mount (D)14.3mm
Length (E)50mm
Width (F)20mm
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline18
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.082
7.4V Torque kg/cm22
7.4V Sec/60 Degrees0.066
8.4V Torque kg/cm24
8.4V Sec/60 Degrees0.06
Signal TypeDigital
