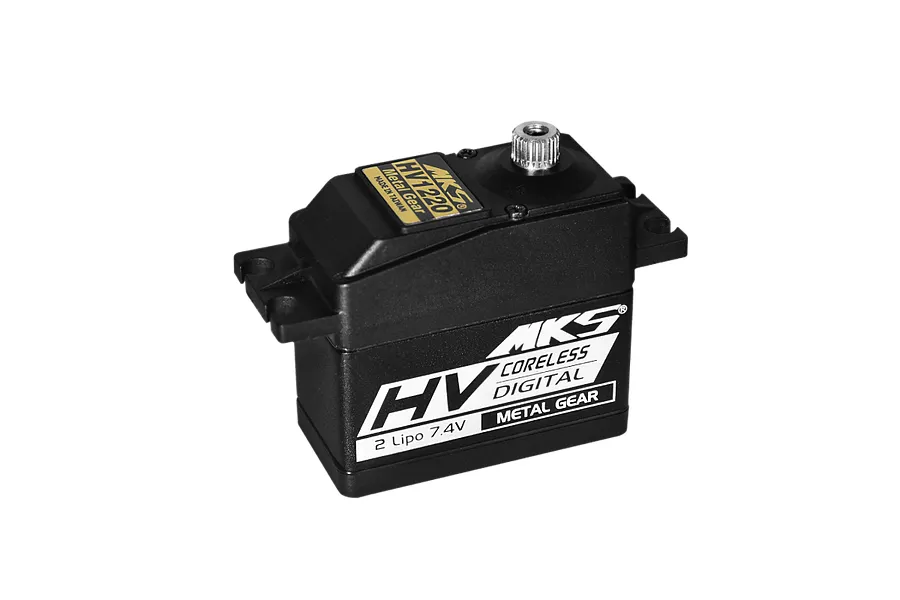

MKS Black Aluminium HV1220 Standard 23kg 8.4V Coreless Metal Geared Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Ideal for heavy-duty applications in giant-scale airplanes, robots, or vehicles, the MKS Black Aluminium S0024001 provides unparalleled torque, fast speeds, and the reliability of a coreless motor design.
- Immense torque output for the most demanding applications
- Responsive with lightning-fast speeds
- High performance coreless motor paired with robust metal gears for reliable operation
- Aluminium centre case for strength and efficient heat dissipation
- High voltage operation (6.0v - 8.4v)
- Genuine MKS Product
- Torque (6.0V): 16.6 kg-cm / 230.5 oz-in
- Torque (6.8V): 20.3 kg-cm / 281.9 oz-in
- Torque (7.4V): 22.1 kg-cm / 306.9 oz-in
- Torque (8.4V): 23 kg-cm / 319.4 oz-in
- Speed: 0.159 s (6.0V) / 0.140 s (6.8V) / 0.129 s (7.4V) / 0.115 s (8.4V)
- Weight: 57.64 g (2.03 oz)
- Operating Voltage: 6.0V ~ 8.4V DC Volts
- Bearing Type: Dual Ball Bearing
- Motor Type: Coreless
- Operating Temperature: N/A
- Refresh Rate: 333hz
- Total Height (A) = 42.15 mm
- Body Width (B) = 40 mm
- Below Mount (C) = 25.3 mm
- Above Mount (D) = 14.85 mm
- Total Length (E) = 50 mm
- Total Width (F) = 20 mm
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
| Description | QTY |
|---|---|
| MKS Black Aluminium S0024001 23kg 8.4V Standard Coreless Metal Geared Servo | 1 |
-
Servo Spline Count
- 25Tooth
-
Drive Motor Type
- Coreless
-
Total Width
- 20mm
-
Input Voltage Range
- 7.4VV, 6VV, 6.8VV, 8.4VV
-
6.8V Sec/60 Degrees
- 0.140
-
7.4V Sec/60 Degrees
- 0.129
-
Rotational Degrees
- 120° (Normal)
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.159
-
Signal Type
- Digital
-
Case Material
- Aluminium/Plastic
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 16.6
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
7.4V Torque kg/cm
- 22.1
-
Total Height
- 42.15mm
-
8.4V Torque kg/cm
- 23
-
Body Length
- 40mm
-
8.4V Sec/60 Degrees
- 0.115
-
Bottom to Under Mount
- 25.3mm
-
Top to Under Mount
- 14.85mm
-
Total Length
- 50mm
-
6.8V Torque kg/cm
- 20.3
-
SizeConventionally sized servo names
- Standard
