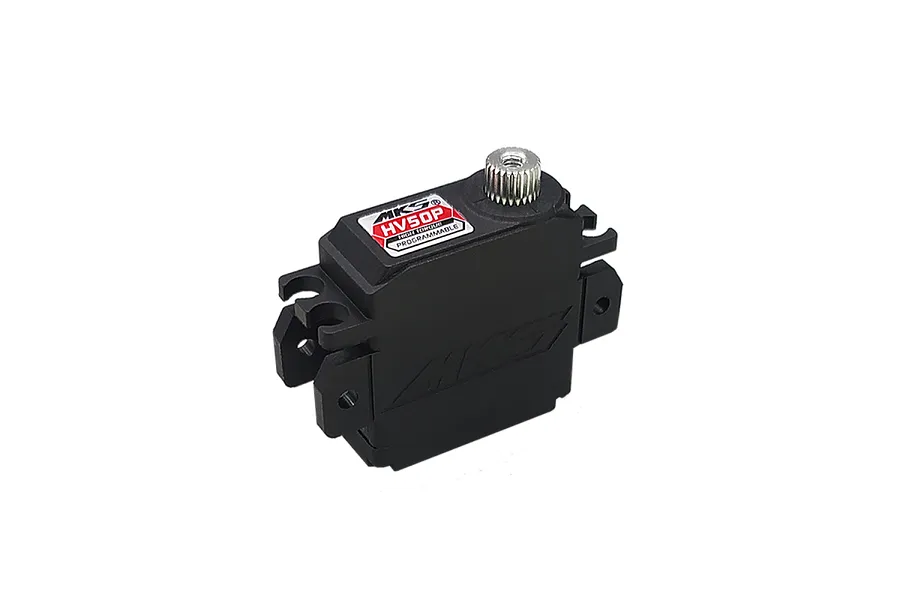

MKS HV50P Micro 8.3kg 8.4V Coreless Metal Geared Servo
MKS HV50P Micro 8.3kg 8.4V Coreless Metal Geared Servo
Brand:
MKS
|
MPN: S0030001
$164.99
or 4 fortnightly payments of $41.25 with
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Related Products
in 2 days
Description
The MKS HV50P delivers exceptional power, responsiveness, and long-term durability in a compact format. Ideal for small to medium-sized airplanes, robots, or vehicles, its coreless motor and robust design provide reliable performance even under demanding conditions.
Features
- Substantial torque output (up to 8.3kg-cm at 8.4V) in a compact size
- Responsive with lightning-fast speeds as quick as 0.071 seconds at 8.4V
- High performance coreless motor paired with robust metal gears
- Plastic casing for lightweight applications
- High voltage operation (3.7V - 8.4V)
- Genuine MKS Product
Included Items
- 1x MKS HV50P 8.3kg 8.4V Micro Coreless Metal Geared Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Specifications
-
Torque (3.7V)
- 3.75 kg-cm / 52.08 oz-in
-
Torque (6.0V)
- 6.1 kg-cm / 84.71 oz-in
-
Torque (7.4V)
- 7.5 kg-cm / 104.16 oz-in
-
Torque (8.4V)
- 8.3 kg-cm / 115.27 oz-in
-
Speed
- 0.157 s (3.7V) / 0.097 s (6.0V) / 0.079 s (7.4V) / 0.071 s (8.4V)
-
Weight
- 18.1 g (0.64 oz)
-
Operating Voltage
- 3.7 ~ 8.4 V DC Volts
-
Bearing Type
- Dual Bearing
-
Motor Type
- Coreless Motor
-
Operating Temperature
- N/A
-
Refresh Rate
- 333hz
-
Total Height (A)
- N/A mm
-
Body Width (B)
- 27 mm
-
Below Mount (C)
- 20.4 mm
-
Above Mount (D)
- N/A mm
-
Total Length (E)
- 39 mm
-
Total Width (F)
- 12.1 mm
Servo
-
Body Length (B)
- 27mm
-
Bottom to Under Mount (C)
- 20.4mm
-
Length (E)
- 39mm
-
Width (F)
- 12.1mm
-
SizeConventionally sized servo names
- Micro
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 3.7V, 6V, 7.4V, 8.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 6.1
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.097
-
7.4V Torque kg/cm
- 7.5
-
7.4V Sec/60 Degrees
- 0.079
-
8.4V Torque kg/cm
- 8.3
-
8.4V Sec/60 Degrees
- 0.071
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
