MKS

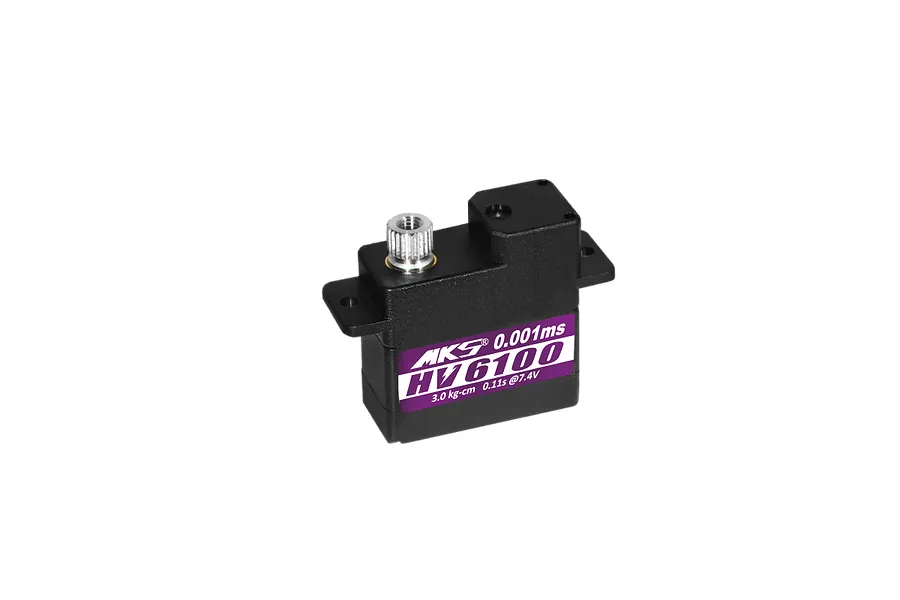

MKS HV6100 Micro 3.4kg 8.4V Coreless Metal Geared Servo

Part no. S0022005

1 in stockNo reviews yet

$94.99

or 4 fortnightly payments of $23.75 with afterpay or PayPal, or zip

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Ships Thursday · order by Thursday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

Get the power, speed, and precision you need without sacrificing weight. The MKS HV6100 offers substantial torque and lightning-fast response in an incredibly lightweight package, making it the ultimate choice where every gram matters.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Extreme performance with minimal weight (only 10g!)
  • Responsive with lightning-fast speeds
  • High performance coreless motor paired with robust metal gears for reliable operation
  • Ideal for weight-critical applications
  • High voltage operation (6.0V - 8.4V)
  • Genuine MKS Product

In the box

  • 1x MKS HV6100 3.4kg 8.4V Micro Coreless Metal Geared Servo

Specifications

Torque (6.0V)2.6 kg-cm / 36.1 oz-in
Torque (7.4V)3.0 kg-cm / 41.7 oz-in
Torque (8.2V)3.4 kg-cm / 47.2 oz-in
Speed0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight10 g (0.35 oz)
Operating Voltage6.0V ~ 8.4V DC Volt
Bearing Type1 Oil Retaining, 1 Jewel Bearing
Motor TypeCoreless Motor
Operating TemperatureN/A
Refresh Rate333hz
Total Height (A)24.5 mm
Body Width (B)22.5 mm
Below Mount (C)15.1 mm
Above Mount (D)10.6 mm
Total Length (E)31 mm
Total Width (F)10 mm

Servo

Servo
SizeConventionally sized servo namesMicro
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialPlastic
Height (A)24.5mm
Body Length (B)22.5mm
Bottom to Under Mount (C)15.1mm
Top to Under Mount (D)10.6mm
Length (E)31mm
Width (F)10mm
Drive Motor TypeCoreless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline2.6
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.41
7.4V Torque kg/cm3
7.4V Sec/60 Degrees0.11
8.4V Torque kg/cm3.4
8.4V Sec/60 Degrees0.10
Signal TypeDigital
