MKS

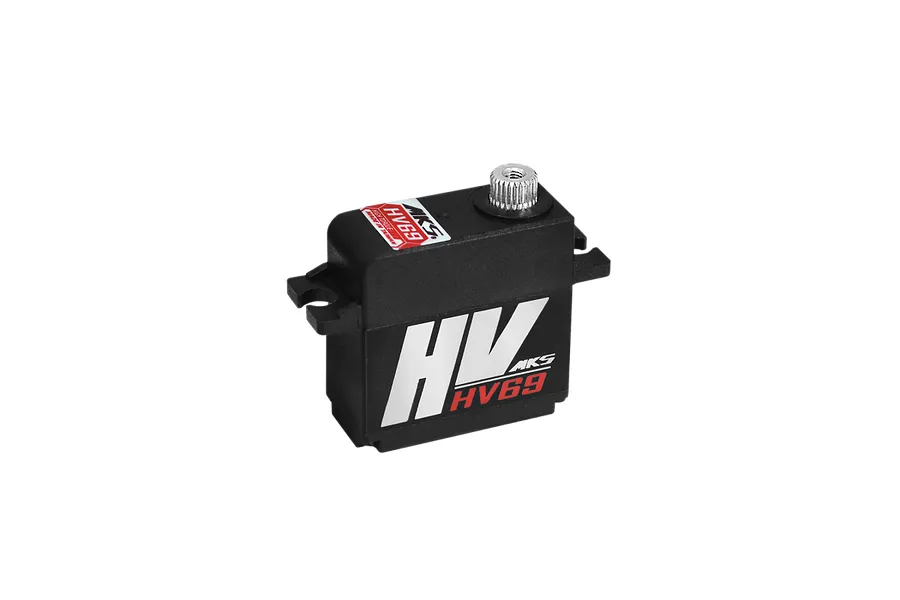

MKS HV69 Micro 10.2kg 8.4V Coreless Metal Geared Servo

Part no. S0022012

Expected 1 DecNo reviews yet

$129.99

or 4 fortnightly payments of $32.50 with afterpay or PayPal, or zip

In stock now: similar

Overview

The MKS HV69 (S0022012) delivers robust torque and speed in a compact and lightweight package. Its coreless design and high-voltage operation make it an excellent choice for various demanding applications.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Substantial torque output in a compact package
  • Responsive with lightning-fast speeds
  • High performance coreless motor paired with robust metal gears for reliable operation
  • Plastic casing for lightweight applications
  • High voltage operation (4.8V - 8.4V)
  • Genuine MKS Product

In the box

  • 1x MKS HV69 (S0022012) 10.2kg 8.4V Micro Coreless Metal Geared Servo

Specifications

Torque (4.8V)6.0 kg-cm / 83.3 oz-in
Torque (6.0V)7.5 kg-cm / 104.2 oz-in
Torque (7.4V)9.2 kg-cm / 127.8 oz-in
Torque (8.4V)10.2 kg-cm / 141.7 oz-in
Speed0.17 s (4.8V) / 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.4V)
Weight21 g (0.74 oz)
Operating Voltage4.8V ~ 8.4V DC
Bearing TypeN/A
Motor TypeCoreless Motor
Operating TemperatureN/A
Refresh RateN/A
Total Height (A)32.3 mm
Body Width (B)29 mm
Below Mount (C)18.6 mm
Above Mount (D)14.2 mm
Total Length (E)45 mm
Total Width (F)13 mm

Servo

Servo
SizeConventionally sized servo namesMicro
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingNo
Input Voltage Range4.8V, 6V, 7.4V, 8.4V
Case MaterialPlastic
Height (A)32.3mm
Body Length (B)29mm
Bottom to Under Mount (C)18.6mm
Top to Under Mount (D)14.2mm
Length (E)45mm
Width (F)13mm
Drive Motor TypeCoreless
Rotational Degrees120° (Normal)
4.8V Torque kg/cm6
4.8V Sec/60 Degrees0.17
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline7.5
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.13
7.4V Torque kg/cm9.2
7.4V Sec/60 Degrees0.11
8.4V Torque kg/cm10.2
8.4V Sec/60 Degrees0.10
Signal TypeDigital
