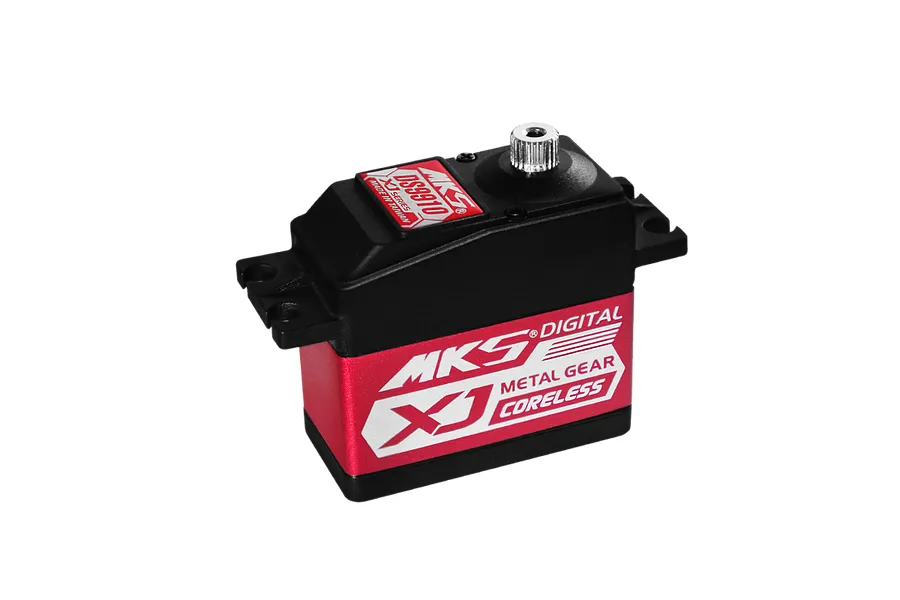

MKS Red Aluminium DS9910 Standard 26kg 6V Coreless Metal Geared Servo
Videos
MKS Red Aluminium DS9910 Standard 26kg 6V Coreless Metal Geared Servo
Brand:
MKS
|
MPN: S0029001
Now $129.99
or 4 fortnightly payments of $32.50 with
Pay later with
We'll send it today
When ordered within the next
hms
What does Next Dispatch mean?
Pay before 1:00pm Melbourne time on a dispatch day and your order ships the same day.
This is dispatch time, not delivery time — couriers still take their usual transit days.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description
The MKS DS9910 (S0029001) is a top choice for demanding applications in large-scale airplanes, robots, or vehicles where its combination of torque and robust construction ensure reliable performance.
Features
- Powerful torque for demanding applications
- Responsive with good speeds
- Durable metal gears
- Coreless motor for efficiency and smooth operation
- Wide operating voltage range
- Genuine MKS Product
Included Items
- 1x MKS DS9910 (S0029001) 26kg 6V Standard Coreless Metal Geared Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Videos
Specifications
-
Torque (4.8V)
- 21 kg-cm / 291.6 oz-in
-
Torque (6.0V)
- 26 kg-cm / 361.1 oz-in
-
Speed
- 0.198 s (4.8V) / 0.159 s (6.0V)
-
Weight
- 58 g (2.04 oz)
-
Operating Voltage
- 4.8V ~ 7.0V DC
-
Bearing Type
- Dual Ball Bearing
-
Motor Type
- Coreless
-
Operating Temperature
- N/A
-
Refresh Rate
- 333 Hz
-
Total Height (A)
- 43.15 mm
-
Body Width (B)
- 40 mm
-
Below Mount (C)
- 26.3 mm
-
Above Mount (D)
- 16.85 mm
-
Total Length (E)
- 50 mm
-
Total Width (F)
- 20 mm
Servo
-
Height (A)
- 43.15mm
-
Body Length (B)
- 40mm
-
Bottom to Under Mount (C)
- 26.3mm
-
Top to Under Mount (D)
- 16.85mm
-
Length (E)
- 50mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 4.8V, 6V
-
4.8V Torque kg/cm
- 21
-
4.8V Sec/60 Degrees
- 0.198
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 26
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.159
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Aluminium/Plastic
-
Rotational Degrees
- 120° (Normal)
