MKS Red Aluminium HBL665 Standard 16.7kg 8.4V Brushless Metal Geared Servo

Name: MKS Red Aluminium HBL665 Standard 16.7kg 8.4V Brushless Metal Geared Servo
Brand: MKS RC Servo Motors
SKU: MKS-S0010007
Price: 149.99 AUD
Availability: InStock

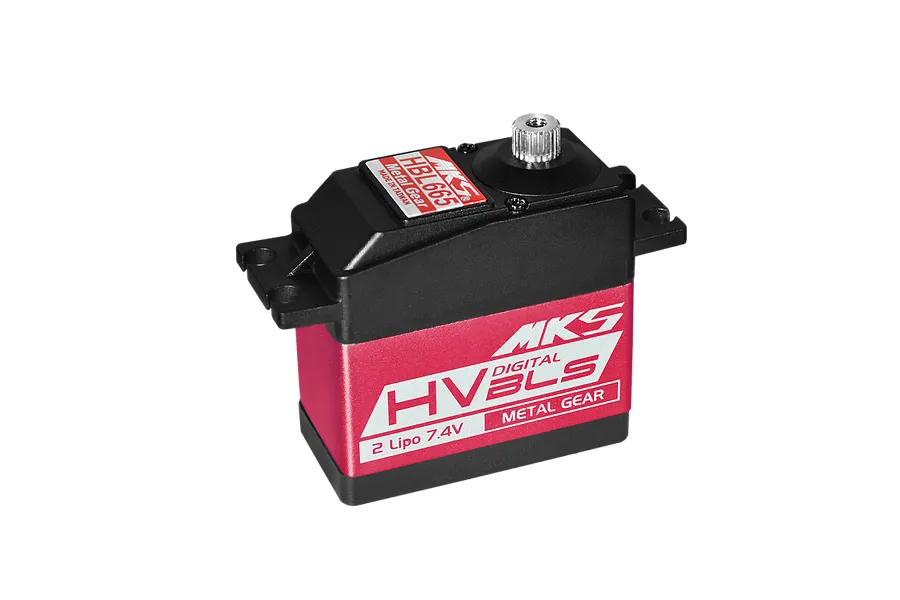

MKS HBL665 high-voltage digital brushless metal gear servo with a red anodized aluminium case.

Videos

MKS Red Aluminium HBL665 Standard 16.7kg 8.4V Brushless Metal Geared Servo

Brand: MKS | MPN: S0010007

3+ in stock

write a review

Now $149.99

~~$185.99~~

You Save $36.00

or 4 fortnightly payments of $37.50 with

Pay later with

Enter your suburb or postcode for delivery options

Enter your country for international delivery options

Description

Experience the power, responsiveness, and long-term durability needed for demanding projects with the MKS Red Aluminium HBL665. Its hybrid construction ensures strength and efficient heat dissipation.

Features

Substantial torque output perfect for demanding applications
Responsive with fast speeds
Durable brushless motor along with robust metal gears for long lasting performance
Centre case is anodised in a bright brilliant red
Hybrid construction with a metal centre case for strength and efficient heat dissipation
Genuine MKS Product

Specifications

Torque (6.0V): 12.2 kg-cm / 169.4 oz-in
Torque (7.4V): 15.2 kg-cm / 211 oz-in
Torque (8.2V): 16.7 kg-cm / 231.9 oz-in
Speed: 0.13 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)
Weight: 63 g (2.22 oz)
Operating Voltage: 6.0V ~ 8.2V DC Volts
Bearing Type: Dual Ball Bearing
Motor Type: Brushless
Operating Temperature: N/A
Refresh Rate: 333hz
Total Height (A): 43.3 mm
Body Width (B): 40 mm
Below Mount (C): 28 mm
Above Mount (D): 10.3 mm
Total Length (E): 50 mm
Total Width (F): 20 mm

Included Items

1x MKS Red Aluminium HBL665 16.7kg 8.4V Standard Brushless Metal Geared Servo

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Videos

Specifications

Servo

Height (A): 43.3mm
Body Length (B): 40mm
Bottom to Under Mount (C): 28mm
Top to Under Mount (D): 10.3mm
Length (E): 50mm
Width (F): 20mm
Size Conventionally sized servo names: Standard
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
Input Voltage Range: 6V, 7.4V, 8.4V
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 12.2
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.13
7.4V Torque kg/cm: 15.2
7.4V Sec/60 Degrees: 0.10
8.4V Torque kg/cm: 16.7
8.4V Sec/60 Degrees: 0.09
Signal Type: Digital
Drive Motor Type: Brushless
Case Material: Aluminium/Plastic
Rotational Degrees: 120° (Normal)
