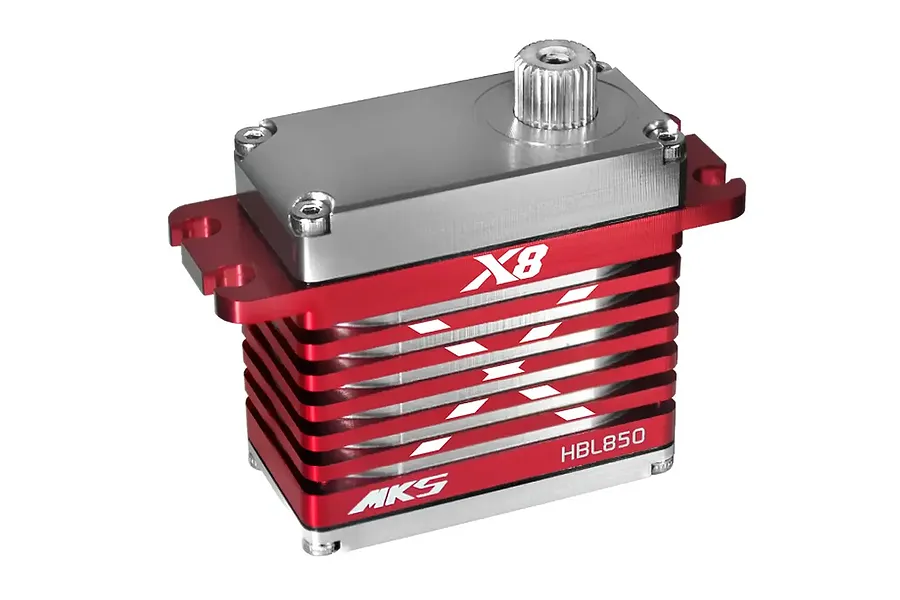

MKS Red Aluminium HBL850 Standard 24.9kg 8.4V Brushless Metal Geared Servo

  • Brushless

Part no. S0010009

Expected 1 DecNo reviews yet

Videos

$299.99

or 4 fortnightly payments of $75.00 with afterpay or PayPal, or zip

In stock now: similar

Videos

Overview

Ideal for heavy-duty applications in giant-scale airplanes, robots, or vehicles, the MKS Red Aluminium HBL850 provides unparalleled torque, fast speeds, and the durability of a brushless motor.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Immense torque output for the most demanding applications
  • Responsive with lightning-fast speeds
  • Durable brushless motor along with robust metal gears for long lasting performance
  • All aluminium finned case for efficient heat dissipation and strong protection
  • High voltage operation (6.0v - 8.2v)
  • Genuine MKS Product

In the box

  • 1x MKS Red Aluminium HBL850 24.9kg 8.4V Standard Brushless Metal Geared Servo

Specifications

Torque (6.0V)18.2 kg-cm / 252.8 oz-in
Torque (7.4V)22.5 kg-cm / 312.5 oz-in
Torque (8.2V)24.9 kg-cm / 345.8 oz-in
Speed0.10 s (6.0V) / 0.079 s (7.4V) / 0.071 s (8.2V)
Weight73 g (2.57 oz)
Operating Voltage6.0V ~ 8.2V DC Volts
Bearing TypeDual Ball Bearing
Motor TypeBrushless
Operating TemperatureN/A
Refresh Rate333hz
Total Height (A)44.5 mm
Body Width (B)40 mm
Below Mount (C)28.3 mm
Above Mount (D)14.2 mm
Total Length (E)50 mm
Total Width (F)20 mm
Spline Diameter8mm - 25T

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium
Height (A)44.5mm
Body Length (B)40mm
Bottom to Under Mount (C)28.3mm
Top to Under Mount (D)14.2mm
Length (E)50mm
Width (F)20mm
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline18.2
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.10
7.4V Torque kg/cm22.5
7.4V Sec/60 Degrees0.079
8.4V Torque kg/cm24.9
8.4V Sec/60 Degrees0.071
Signal TypeDigital
