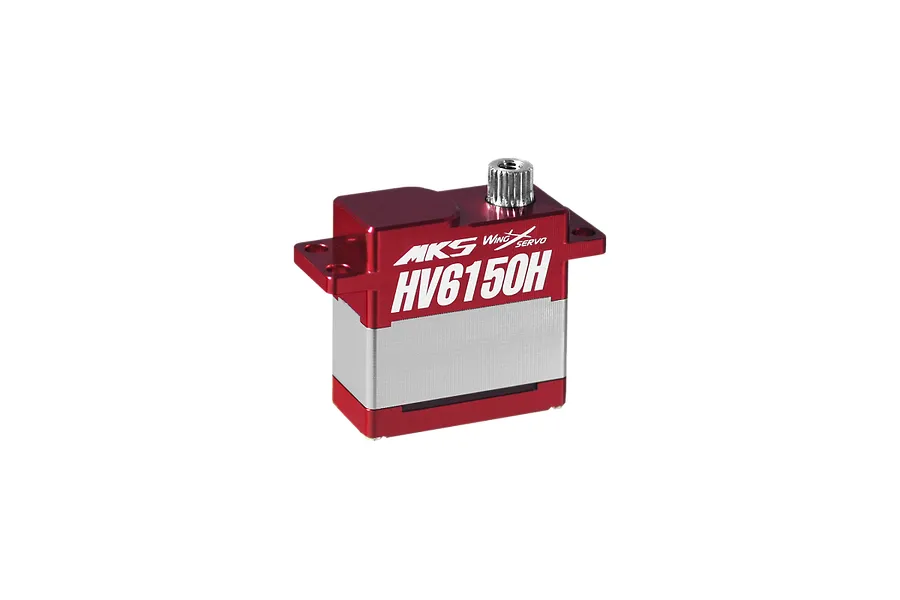

MKS Red/Silver Aluminium 6150H Micro 10.9kg 8.4V Coreless Metal Geared Servo
MKS Red/Silver Aluminium 6150H Micro 10.9kg 8.4V Coreless Metal Geared Servo
Brand:
MKS
|
MPN: S0022017
$129.99
or 4 fortnightly payments of $32.50 with
Pay later with
We'll send it today
When ordered within the next
hms
What does Next Dispatch mean?
Pay before 1:00pm Melbourne time on a dispatch day and your order ships the same day.
This is dispatch time, not delivery time — couriers still take their usual transit days.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description
Experience the power, speed, and long-lasting reliability you need in a micro format with the MKS Red/Silver Aluminium 6150H. Its robust construction and coreless design are engineered to excel in challenging projects where space is at a premium.
Features
- Substantial torque output in its micro size
- Responsive with lightning-fast speeds
- Robust all-aluminium construction protects the servo and provides high level heat dissipation
- High performance coreless motor paired with robust metal gears
- High voltage operation (4.8V - 8.4V)
- Genuine MKS Product
Included Items
- 1x MKS Red/Silver Aluminium 6150H 10.9kg 8.4V Micro Coreless Metal Geared Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Specifications
-
Torque (4.8V)
- 6.3 kg-cm / 87.4 oz-in
-
Torque (6.0V)
- 8.2 kg-cm / 113.8 oz-in
-
Torque (7.4V)
- 9.8 kg-cm / 136.1 oz-in
-
Torque (8.4V)
- 10.9 kg-cm / 151.3 oz-in
-
Speed
- 0.274 s (4.8V) / 0.190 s (6.0V) / 0.176 s (7.4V) / 0.159 s (8.4V)
-
Weight
- 17.4 g (0.61 oz)
-
Operating Voltage
- 4.8V ~ 8.4V DC
-
Bearing Type
- 2 Oil-retaining, 2 Jewel Bearing
-
Motor Type
- Coreless Motor
-
Operating Temperature
- N/A
-
Refresh Rate
- 333 Hz
-
Total Height (A)
- 28 mm
-
Body Width (B)
- 23.5 mm
-
Below Mount (C)
- 18 mm
-
Above Mount (D)
- 10 mm
-
Total Length (E)
- 32.5 mm
-
Total Width (F)
- 11 mm
Servo
-
Height (A)
- 28mm
-
Body Length (B)
- 23.5mm
-
Bottom to Under Mount (C)
- 18mm
-
Top to Under Mount (D)
- 10mm
-
Length (E)
- 32.5mm
-
Width (F)
- 11mm
-
SizeConventionally sized servo names
- Micro
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 4.8V, 6V, 7.4V, 8.4V
-
4.8V Torque kg/cm
- 6.3
-
4.8V Sec/60 Degrees
- 0.274
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 8.2
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.190
-
7.4V Torque kg/cm
- 9.8
-
7.4V Sec/60 Degrees
- 0.176
-
8.4V Torque kg/cm
- 10.9
-
8.4V Sec/60 Degrees
- 0.159
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
