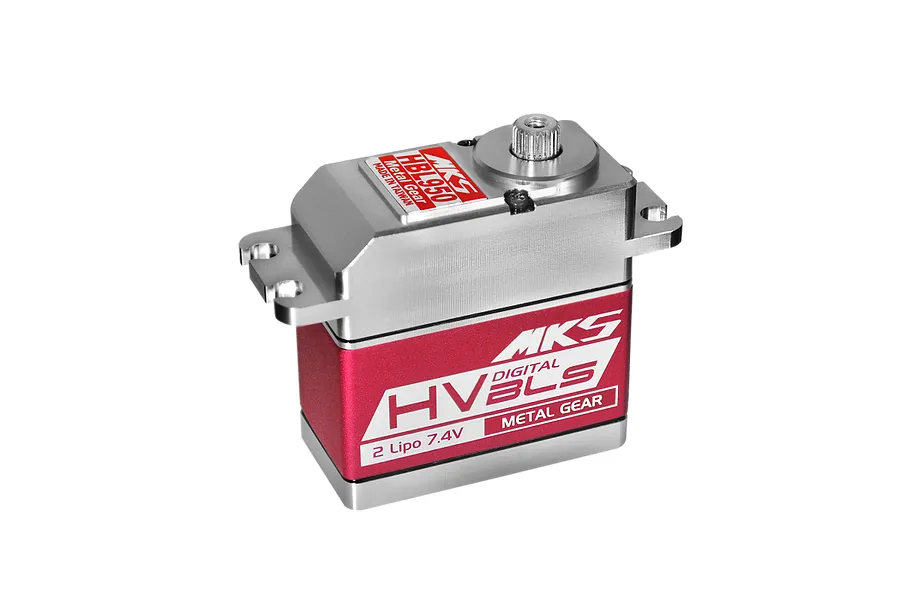

MKS Silver/Red Aluminium HBL950 Standard 18.18kg 8.4V Brushless Metal Geared Servo
Brand: MKS
|
SKU: S0010005
Videos
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The MKS Silver/Red Aluminium S0010005 delivers ample torque and responsive speed for demanding use. Its brushless motor and durable construction ensure reliability and consistent operation.
Video
Features
- Substantial torque output for tackling demanding applications
- Swift response speeds for precise control
- Durable brushless motor pairs with the metal gears for unparalleled long-term performance
- All aluminium case for efficient heat dissipation and strong protection
- High voltage operation (6.0v - 8.4v)
- Genuine MKS Product
Specifications
- Torque (6.0V): 13.3 kg-cm / 184.7 oz-in
- Torque (7.4V): 16.5 kg-cm / 229.1 oz-in
- Torque (8.4V): 18.18 kg-cm / 252.5 oz-in
- Speed: 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.4V)
- Weight: 70.29 g (2.48 oz)
- Operating Voltage: 6.0V ~ 8.4V DC Volts
- Bearing Type: Dual Ball Bearing
- Motor Type: Brushless
- Operating Temperature: N/A
- Refresh Rate: 333hz
Servo Dimensions
- Total Height (A) = 44.5 mm
- Body Width (B) = 40 mm
- Below Mount (C) = 29.35 mm
- Above Mount (D) = 14.15 mm
- Total Length (E) = 50 mm
- Total Width (F) = 20 mm
How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Included items
| Description | QTY |
|---|---|
| MKS Silver/Red Aluminium S0010005 18.18kg 8.4V Standard Brushless Metal Geared Servo | 1 |
Specifications
| Servo | |
|---|---|
| Size: | Standard |
| 6.0v Torque: | 13.3kg |
| 6.0v Speed: | 0.12s |
| Gear Material: | Metal |
| Waterproof Casing: | Yes |
| Servo Spline Count: | 25tooth |
| Signal Type: | Digital |
| Input Voltage Range: | 6V, 7.4V, 8.4V |
| Drive Motor Type: | Brushless |
| Case Material: | Aluminium |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | 44.50mm |
| Body Length: | 40mm |
| Bottom to Under Mount: | 29.35mm |
| Top to Under Mount: | 14.15mm |
| Total Length: | 50mm |
| Total Width: | 20mm |
| 7.4V Torque kg/cm: | 16.5 |
| 8.4V Torque kg/cm: | 18.18 |
| 7.4V Sec/60 Degrees: | 0.10 |
| 8.4V Sec/60 Degrees: | 0.09 |
