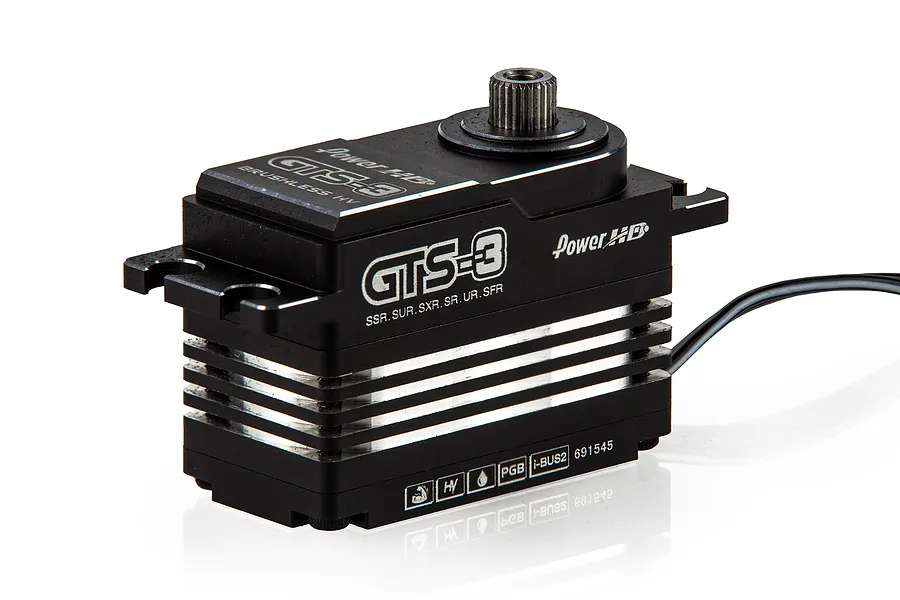

Power HD Black Aluminium GTS-3 Standard 30kg 8.4V HV Brushless Metal Geared Servo
Power HD GTS-3 high-voltage brushless servo — 30kg torque at 8.4V, FLYSKY i-BUS2 compatible, waterproof, with data monitoring.
- 30kg torque at 8.4V with 4-pole brushless motor
- High-voltage operation: 6V–8.4V
- Supports FLYSKY i-BUS2 protocol; programmable via Power HD program box (sold separately)
- Data monitoring records voltage, temperature, and signal information
- Waterproof construction
Introducing the Power HD GTS series servo — a high-voltage brushless powerhouse designed for RC enthusiasts. With 8.4V and 30kg torque, it delivers unparalleled strength and precision. Compatible with FLYSKY i-BUS2 protocol, it supports high-speed modes and can be easily programmed using the Power HD program box. Featuring a 4-pole brushless motor, it offers exceptional performance, extended lifespan, and rapid response. The servo's data monitoring function records voltage, temperature, and signal information for up to an hour. It is also waterproof, ensuring durability for outdoor adventures.
- New high-voltage brushless GTS series servo by Power HD
- Supports FLYSKY i-BUS2 protocol for seamless integration
- GTS-3, GTS-5, GTS-6, GTS-7 models available
- Alliance between Power HD and FLYSKY for enhanced performance
- High-speed modes and programming with Power HD program box (sold separately)
- 4-pole brushless motor for superior performance and durability
- Long lifespan and heat-resistant design for reliable operation
- Faster response time for precise RC manoeuvres
- Data monitoring function records voltage, temperature, and signal information
- Waterproof construction for outdoor use and added durability
- Torque (6.0V): 20 kg-cm (277.7 oz-in)
- Torque (7.4V): 26 kg-cm (361.1 oz-in)
- Torque (8.4V): 30 kg-cm (416.6 oz-in)
- Speed: 0.083 sec (6V) | 0.067 sec (7.4V) | 0.055 sec (8.4V)
- Operating Voltage: 6V–8.4V
- Weight: 63g (2.22 oz)
- Bearing Type: Ball Bearing
- Motor Type: Brushless
- Operating Temperature: -20°C ~ 60°C
- Refresh Rate: 1520μs / 1666Hz
- Size: 41.0 x 20.0 x 29.0mm (1.61 x 0.79 x 1.14 in)
- Servo Dimensions — Total Height (A): 34mm | Body Width (B): 41mm | Below Mount (C): 19.7mm | Above Mount (D): 34mm | Total Length (E): 54.4mm | Total Width (F): 20mm
- 1x Power HD GTS-3 HV Servo
Servos are powered by the ESC's output to the receiver. If you are using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth current delivery. In some cases, you may need to install an external BEC.
-
Height (A)
- 34mm
-
Body Length (B)
- 41mm
-
Bottom to Under Mount (C)
- 19.7mm
-
Top to Under Mount (D)
- 34mm
-
Length (E)
- 54.4mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Steel
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V, 8.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 20
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.083
-
7.4V Torque kg/cm
- 26
-
7.4V Sec/60 Degrees
- 0.067
-
8.4V Torque kg/cm
- 30
-
8.4V Sec/60 Degrees
- 0.055
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
