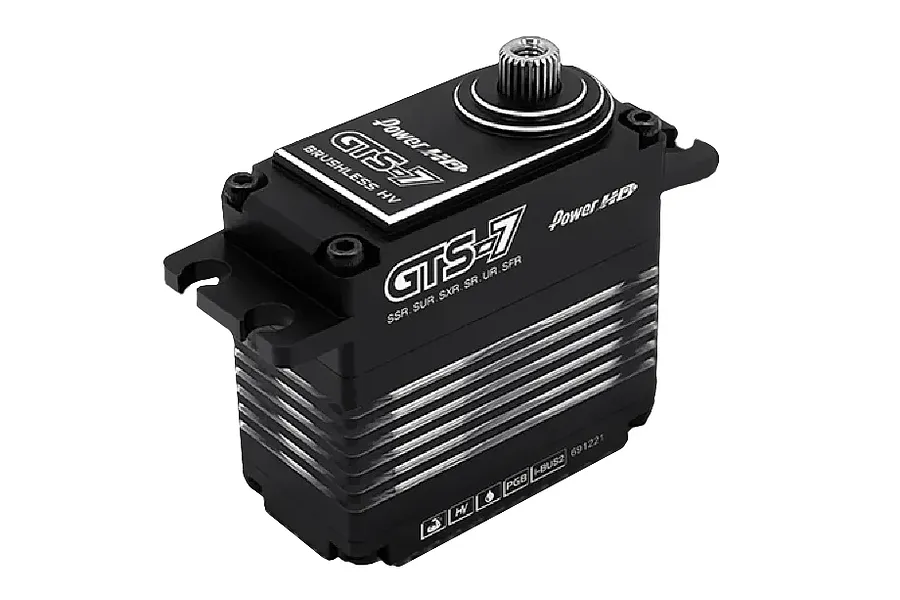

Power HD Black Aluminium GTS-7 Standard 70kg 8.4V HV Brushless Metal Geared Servo
Power HD GTS-7 high-voltage brushless servo — 70kg torque at 8.4V, FLYSKY i-BUS2 compatible, waterproof, with data monitoring.
- 70kg torque at 8.4V with 4-pole brushless motor
- High-voltage operation: 6V–8.4V
- Supports FLYSKY i-BUS2 protocol; programmable via Power HD program box (sold separately)
- Data monitoring records voltage, temperature, and signal information
- Waterproof construction
Introducing the Power HD GTS-7 — a high-voltage brushless servo delivering 70kg torque at 8.4V, designed for RC enthusiasts who demand maximum performance. Compatible with FLYSKY i-BUS2 protocol, it supports high-speed modes and can be programmed using the Power HD program box. Featuring a 4-pole brushless motor, it offers exceptional performance, extended lifespan, and rapid response. The servo's data monitoring function records voltage, temperature, and signal information. It is also waterproof for outdoor use.
- New high-voltage brushless GTS series servo by Power HD
- Supports FLYSKY i-BUS2 protocol for seamless integration
- GTS-3, GTS-5, GTS-6, GTS-7 models available
- Alliance between Power HD and FLYSKY for enhanced performance
- High-speed modes and programming with Power HD program box (sold separately)

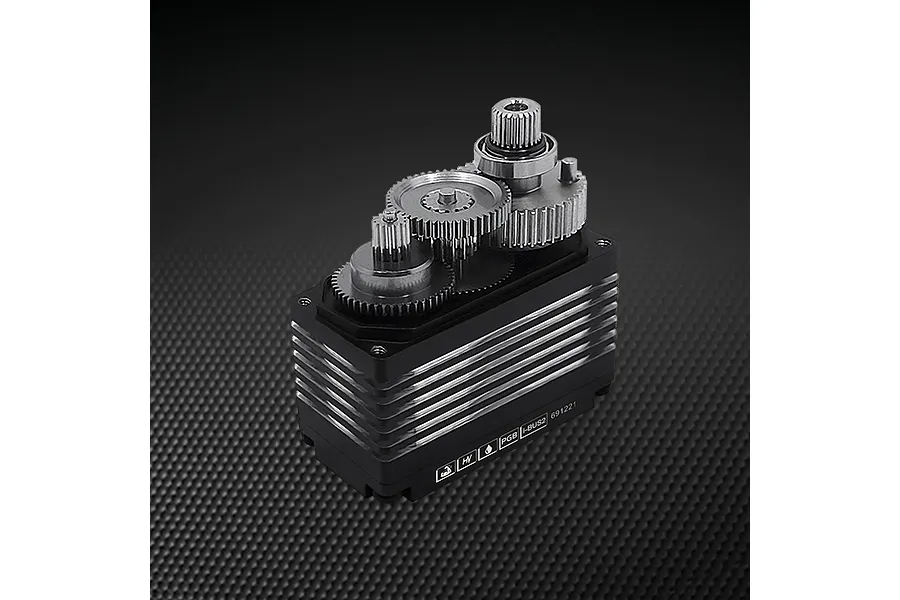

- 4-pole brushless motor for superior performance and durability
- Long lifespan and heat-resistant design for reliable operation
- Faster response time for precise RC manoeuvres
- Data monitoring function records voltage, temperature, and signal information
- Waterproof construction for outdoor use and added durability
- Torque (6.0V): 52.0 kg-cm (722.1 oz/in)
- Torque (7.4V): 66.0 kg-cm (916.6 oz/in)
- Torque (8.4V): 70.0 kg-cm (972.1 oz/in)
- Speed: 0.15 sec (6.0V) | 0.12 sec (7.4V) | 0.10 sec (8.4V)
- Operating Voltage: 6V–8.4V
- Weight: 78g (2.75 oz)
- Bearing Type: Ball Bearing
- Motor Type: Brushless
- Operating Temperature: -20°C ~ 60°C
- Refresh Rate: 1520μs / 1666Hz
- Servo Dimensions — Total Height (A): 44mm | Body Width (B): 40mm | Below Mount (C): 28.3mm | Above Mount (D): 10mm | Total Length (E): 54.2mm | Total Width (F): 20mm

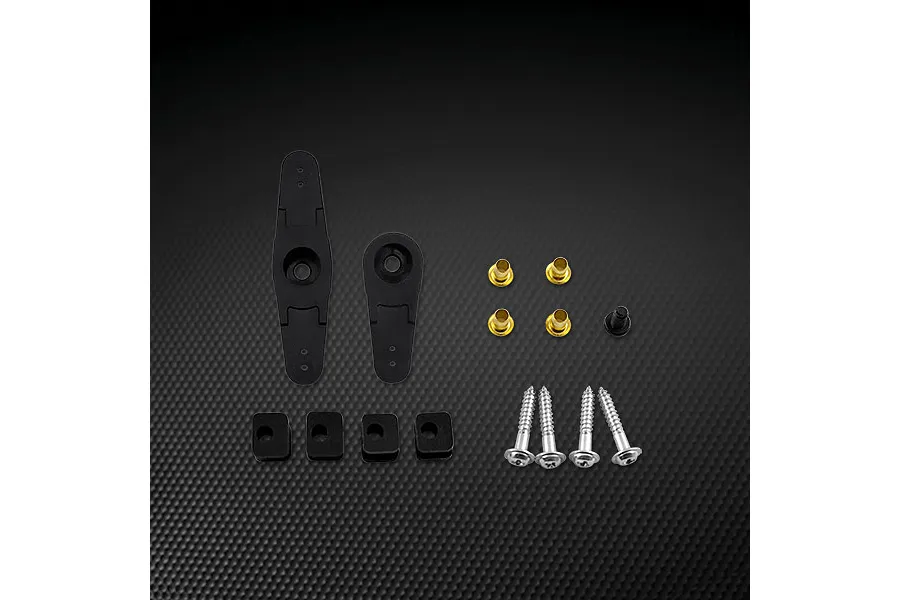

- 1x Power HD GTS-7 HV Servo
Servos are powered by the ESC's output to the receiver. If you are using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth current delivery. In some cases, you may need to install an external BEC.
-
Height (A)
- 44mm
-
Body Length (B)
- 40mm
-
Bottom to Under Mount (C)
- 28.3mm
-
Top to Under Mount (D)
- 10mm
-
Length (E)
- 54.2mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Steel
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V, 8.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 52
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.15
-
7.4V Torque kg/cm
- 66
-
7.4V Sec/60 Degrees
- 0.12
-
8.4V Torque kg/cm
- 70
-
8.4V Sec/60 Degrees
- 0.10
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
