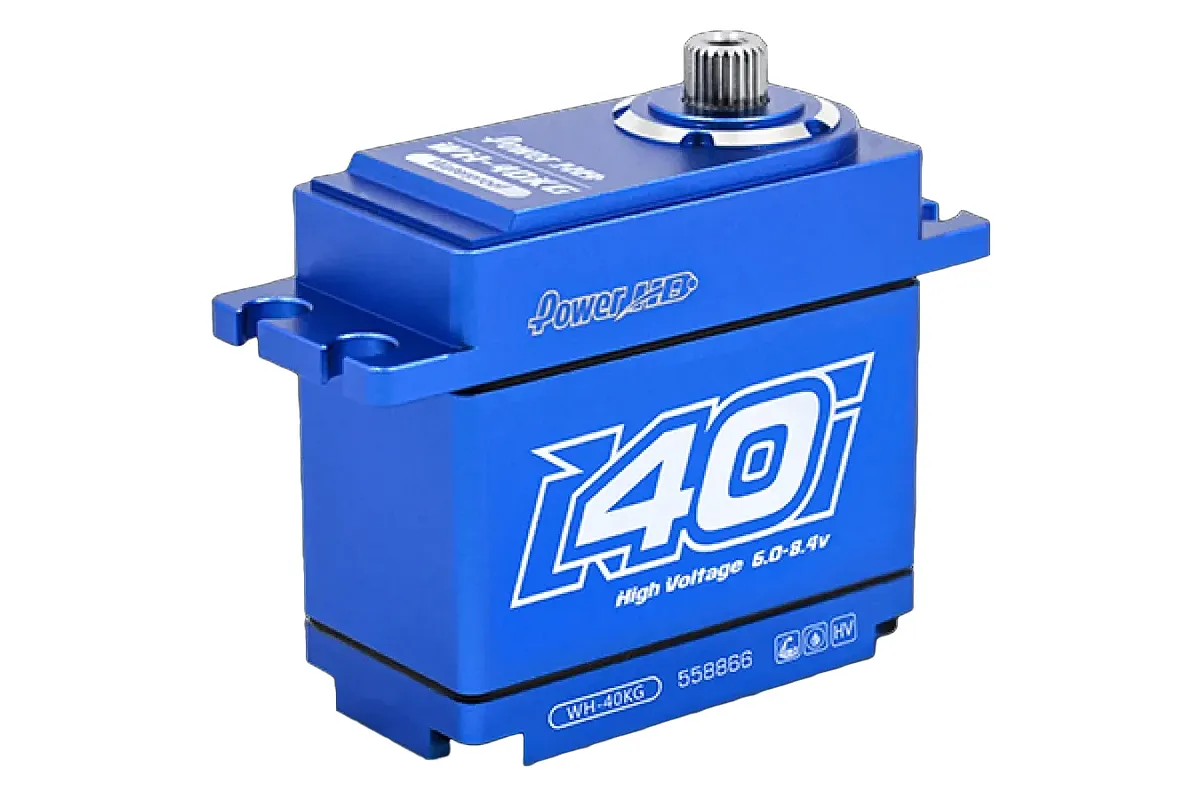

Power HD Blue Aluminium Standard Coreless 40kg 8.4v Steel Geared Waterproof Servo
Brand: Power HD
|
SKU: WH-40KG
Videos
Recommended Products
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

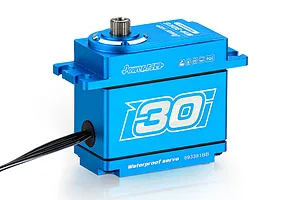

Power HD brings a range of crawler specific high-torque & high-voltage servos. With three variants; 40kg/cm, 30kg/cm, & 20kg/cm featuring a waterproof case & wiring system.
Features
- Servo case is CNC machined, ensuring higher quality
- Customised Power HD waterproofing system

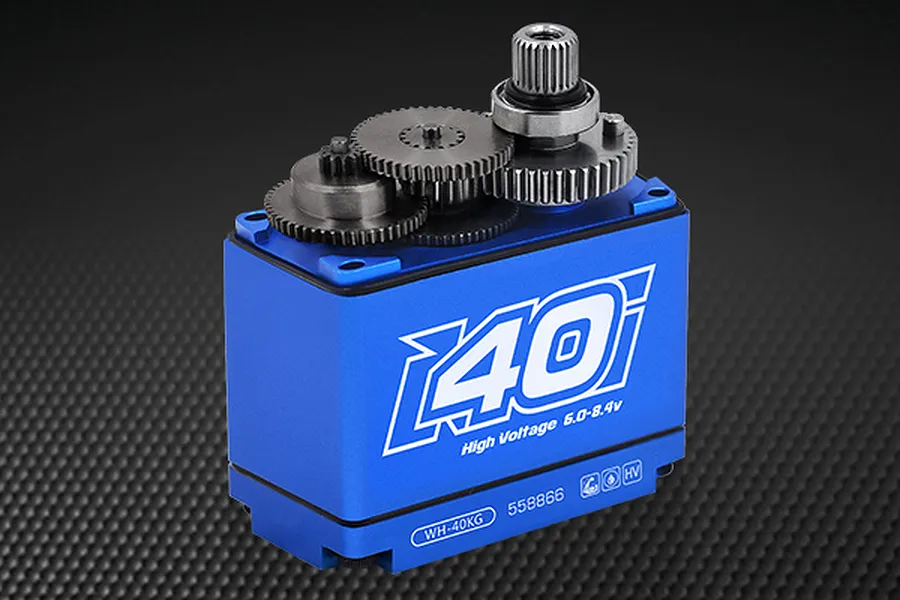

- Uses Hardened Steel Gears for extra strength and durability
- The 32-bit high-frequency MCU creates more precise operation with locked-rotor & power-on slow-start protection
- Casing is anodized in Blue
Specifications
- Torque(6.0V): 29.0 kg-cm (402.7 oz/in)
- Torque(7.4V): 35.0 kg-cm (486.1 oz/in)
- Torque(8.4V): 40.0 kg-cm (555.5 oz/in)
- Speed: 0.20 sec (6.0V) ? 0.18 sec (7.4V) ? 0.17 sec (8.4V)
- Operating Voltage?6.0 ~ 8.4V DC Volts
- Weight: 82 g (2.89 oz)
- Bearing Type?Ball Bearing x 2
- Motor Type?Coreless Motor
- Gear Type?Titanium & Steel
- Operating Temperature?-20?~60?
- Working frequence?1520?s / 333hz
- Size?40.7 x 20.5 x 38.5 mm (1.60 x 0.81 x 1.52 in)

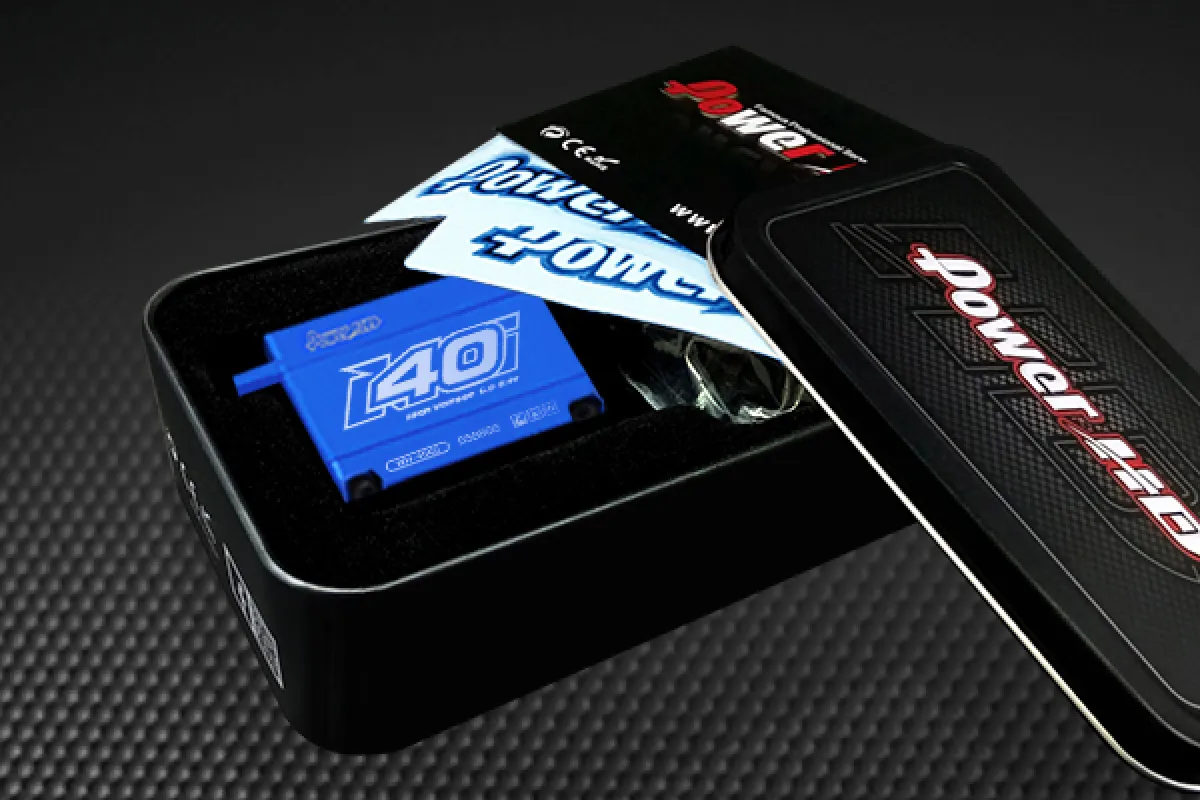

Included items
| Description | QTY |
|---|---|
| Blue Aluminium Standard Coreless 40kg 8.4v Steel Geared Waterproof Servo | 1 |

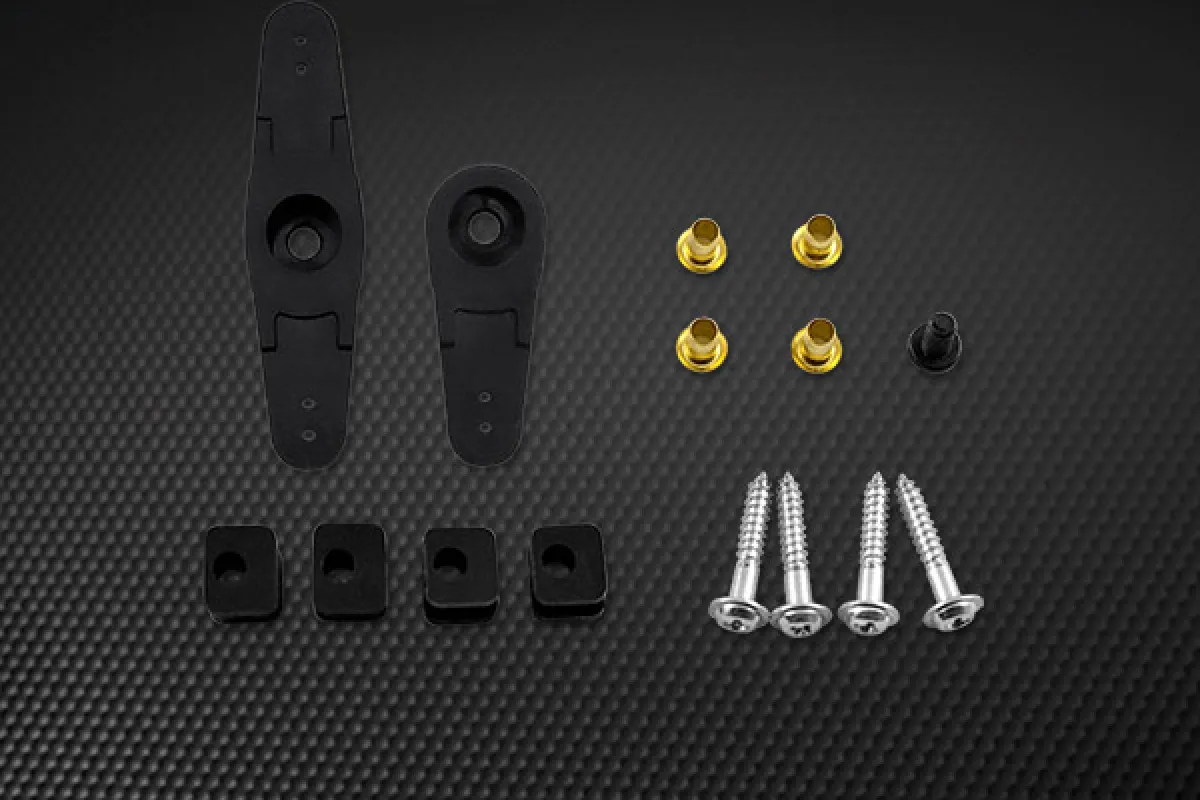

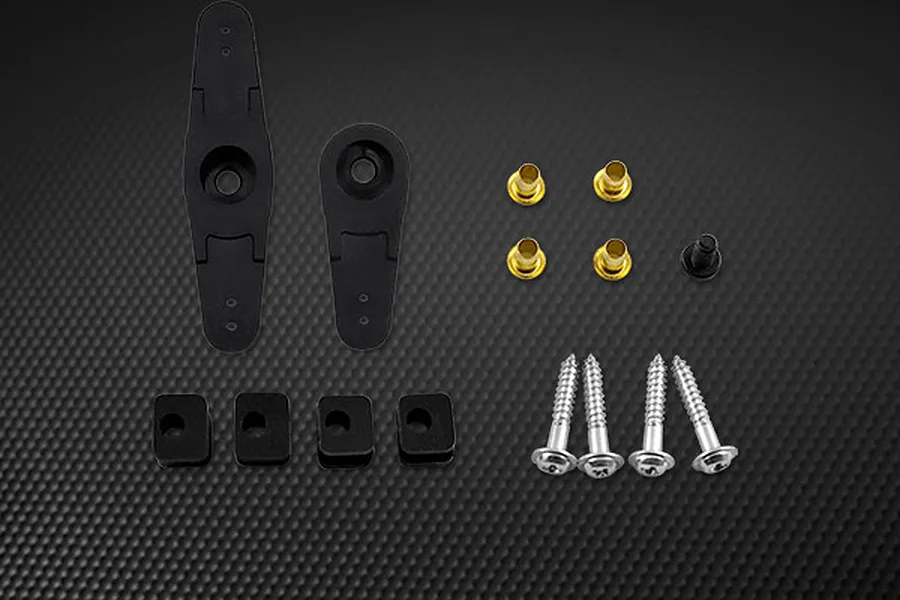

| Hardware Set | 1 |
| Decal Sheet | 1 |
Power HD WH-40KG Coreless Servo Dimensions
- Total Height (A) = 44mm
- Body Width (B) = 40.8mm
- Below Mount (C) = 27.7mm
- Above Mount (D) = 16.3mm
- Total Length (E) = 54.3mm
- Total Width (F) = 20.6mm
Specifications
| Servo | |
|---|---|
| Size: | Standard |
| 6.0v Torque: | 40kg |
| 6.0v Speed: | 0.20s |
| Gear Material: | Titanium & Steel |
| Waterproof Casing: | Yes |
| Servo Spline Count: | 25tooth |
| Signal Type: | Digital |
| Drive Motor Type: | Coreless |
| Case Material: | Aluminium |
| Total Height: | 44mm |
| Body Length: | 40.8mm |
| Bottom to Under Mount: | 27.7mm |
| Top to Under Mount: | 16.3mm |
| Total Length: | 54.3mm |
| Total Width: | 20.6mm |
