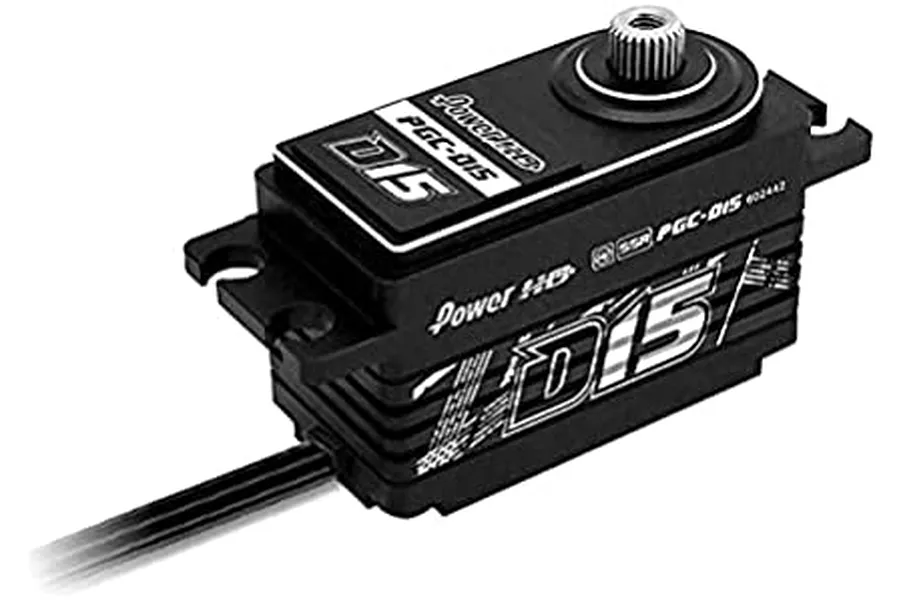

Power HD D15 15kg 8.4v Low Profile Digital Servo
Brand: Power HD
|
SKU: D15
Videos
sold out
ETA:
14th, Dec 2024
On order since:
Nov 22, 2024
$123.87
Price may change when stock arrives
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

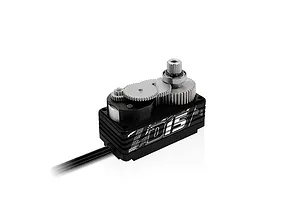

Power HD D15 15kg 8.4v Low Profile Digital Servo, High Performance Coreless Servo.
Features
- Suitable for RC cars 1/10 scale on/off road and drifting.
- HV Brushless Servo.
- High power Coreless Motor.
- Upper/middle/bottom: Aluminium Case.

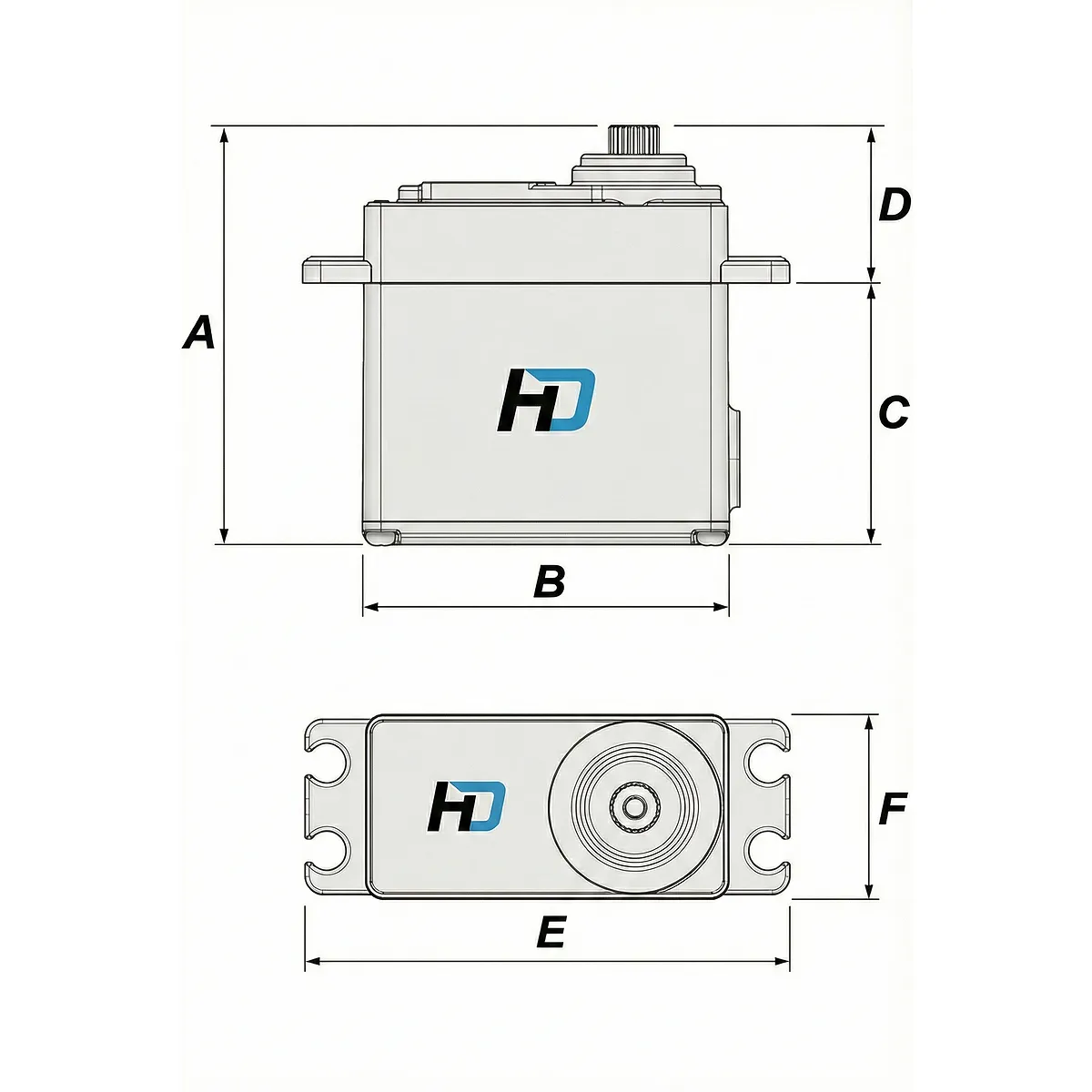

Servo Dimensions
- Total Height (A) = 31mm
- Body Width (B) = 41mm
- Below Mount (C) = 16mm
- Above Mount (D) = 12mm
- Total Length (E) 54mm
- Total Width (F) = 20mm
How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Specifications
| Specifications | 6.0V | 7.4V | 8.4V |
|---|---|---|---|
| Torque (kg-cm) | 13.5 | 16.5 | 18.0 |
| Torque (oz/in) | 187.5 | 229.1 | 250.0 |
| Speed (sec) | 0.10 | 0.095 | 0.085 |
| Operating Voltage (DCV) | 6.0 ~ 8.4 | ||
| Weight (g) | 55.0 | ||
| Bearing Type | Ball Bearing x 2 | ||
| Motor Type | Coreless Motor | ||
| Gear Type | Titanium & Steel | ||
| Operating Temperature (°C) | -20 to 60 | ||
| Working Frequency | 1520?s / 333Hz | ||
| Size (mm) | 41.0 x 20.0 x 26.3 | ||
| Size (in) | 1.61 x 0.79 x 1.04 | ||
Included items
| Description | QTY |
|---|---|
| Power HD D15 15kg 8.4v Low Profile Digital Servo | 1 |
| Accessory Pack | 1 |
Specifications
| Servo | |
|---|---|
| Size: | Low Profile |
| 6.0v Speed: | 0.10s |
| 6.0v Torque: | 13.5kg |
| 7.4V Sec/60 Degrees: | 0.095 |
| 7.4V Torque kg/cm: | 16.5 |
| 8.4V Sec/60 Degrees: | 0.085 |
| 8.4V Torque kg/cm: | 18 |
| Servo Spline Count: | 25tooth |
| Gear Material: | Titanium & Steel |
| Waterproof Casing: | Yes |
| Signal Type: | Analog |
| Input Voltage Range: | 6V, 7.4V, 8.4V |
| Drive Motor Type: | Coreless |
| Case Material: | Aluminium |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | 31mm |
| Body Length: | 41mm |
| Bottom to Under Mount: | 16mm |
| Top to Under Mount: | 12mm |
| Total Length: | 54mm |
| Total Width: | 20mm |
