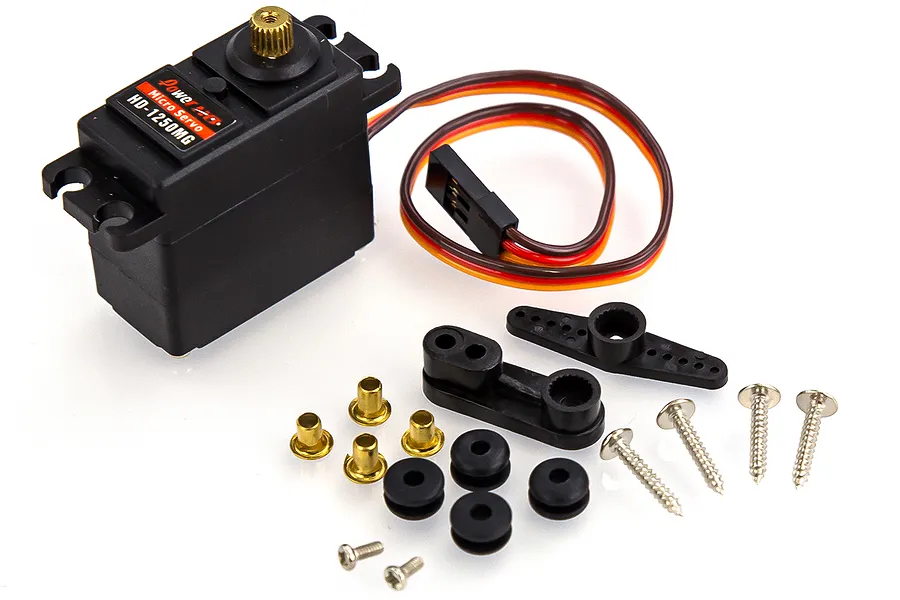

Power HD Micro HD-1250MG 3.5k Metal Geared Servo
Videos
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Power HD HD-1250MG Servo SpecificationsTotal Height (A) = 35.4mm
Body Width (B) = 31.3mm
Below Mount (C) = 21.2mm
Above Mount (D) = 14.2mm
Total Length (E) = 42.7mm
Total Width (F) = 16.3mm
Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
Specifications
Servo
-
Height (A)
- 35.4mm
-
Body Length (B)
- 31.3mm
-
Bottom to Under Mount (C)
- 21.2mm
-
Top to Under Mount (D)
- 14.2mm
-
Length (E)
- 42.7mm
-
Width (F)
- 16.3mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 3.5
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.14
-
Signal Type
- Analog
-
Drive Motor Type
- Brushed
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
Reviews
(1)
4 out of 5 stars
1 year ago
Mark
M
The unit has been pretty good, but the screw that goes into the cog at the bottom is tiny and too short. It has been really hard finding a replacement.
