Reefs RC 1400 SMART 101kg 16.6V Waterproof Brushless Servo / Winch
- Brushless
Part no. REEFS246
Reefs RC 1400 Smart Servo/Winch: High-torque, high-speed brushless servo with 101 kg-cm (1400 oz-in) @ 16.8V. Converts to a winch with Reefs Link V2.
- 101 kg-cm (1400 oz-in) of torque at 16.8V for powerful steering or winching
- Functions as a servo or winch (winch mode requires Reefs Link V2)
- Built-in preprogrammed winch controller
- Submarine waterproof with 7-point seals and heat sink
- 10V-16.8V operating voltage range
3 in stock · Ships Thursday · order by Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Overview
The Reefs RC 1400 Smart Servo/Winch is a versatile powerhouse that can handle the toughest steering or winching needs. Delivering an incredible 1400 oz-in (101 kg-cm) of torque at 16.8V, this brushless servo provides the muscle to conquer any terrain. Its smart functionality allows it to be used as a standard servo or converted to a powerful winch with the addition of the Reefs Link V2 (sold separately).
Built for extreme conditions, the 1400 Smart is submarine waterproof with 7-point seals and a heat sink for reliable performance. It features a magnetic angle sensor, 4-pole brushless motor, and all-metal gears for precision and durability. Whether you require a high-performance servo for steering or a powerful winch for recovery, the Reefs RC 1400 Smart is the ultimate solution.
Features
- High-torque, high-speed brushless servo/winch
- 101 kg-cm (1400 oz-in) torque @ 16.8V
- Functions as servo or winch (winch mode requires Reefs Link V2)
- Built-in preprogrammed winch controller
- Submarine waterproof (7-point seals)
- Heat sink for efficient cooling
- Military-grade construction
- Magnetic angle sensor
- 4-pole brushless motor
- Steel gears and aluminium casing
- 10V-16.8V operating voltage
- Genuine Reefs RC Product
In the box
- 1x Reefs RC 1400 Smart 16.8V Brushless Servo/Winch
You'll need
- Reefs Link V2 for Winch Mode
Specifications
Servo

| Size | Standard |
|---|---|
| Gear Material | Steel |
| Servo Spline Count | 25Tooth |
| Waterproof Casing | Yes |
| Input Voltage Range | 10V, 11.1V, 14.4V, 16.8V, 12.6V |
| Case Material | Aluminium |

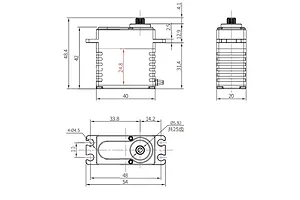

| Height (A) | 48.4mm |
| Body Length (B) | 40mm |
| Bottom to Under Mount (C) | 31.4mm |
| Top to Under Mount (D) | 12.9mm |
| Length (E) | 54mm |
| Width (F) | 20mm |
| Drive Motor Type | Brushless |
| Rotational Degrees | 360° |
| 12.6V Torque kg/cm | 82 |
| 12.6V Sec/60 Degrees | 0.15 |
| 14.8V Torque kg/cm | 88 |
| 14.8V Sec/60 Degrees | 0.13 |
| 16.8V Sec/60 Degrees | 0.11 |
| 16.8V Torque kg/cm | 101 |
| Signal Type | Digital |
