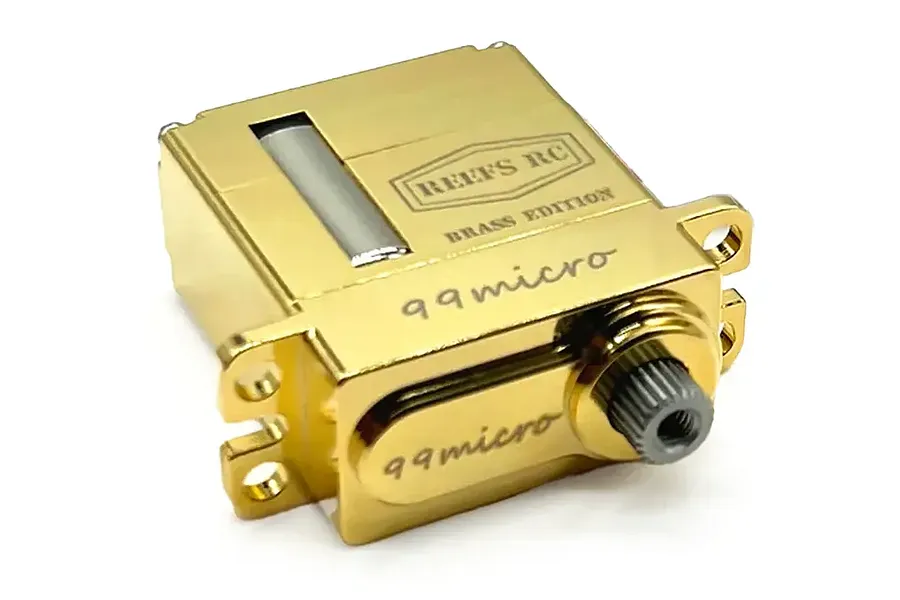

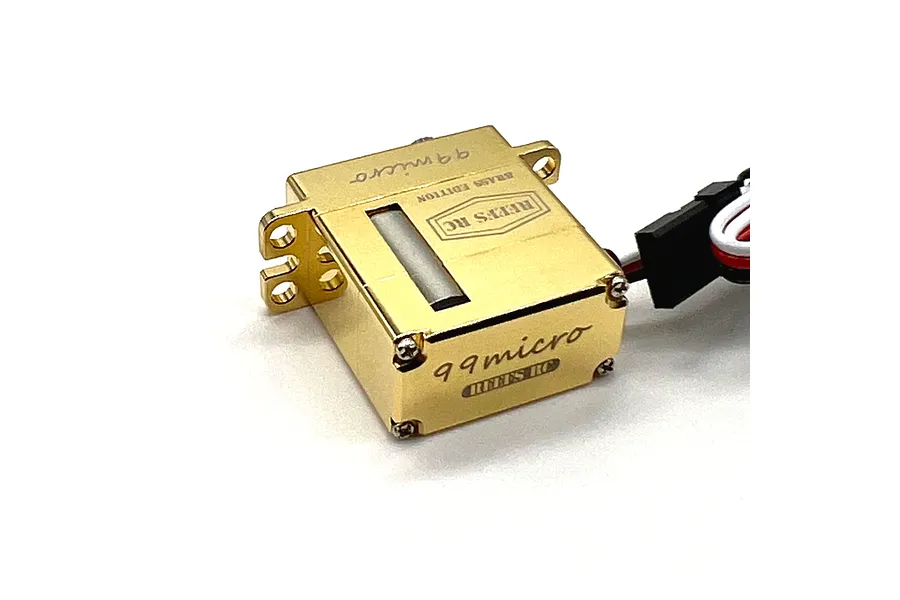

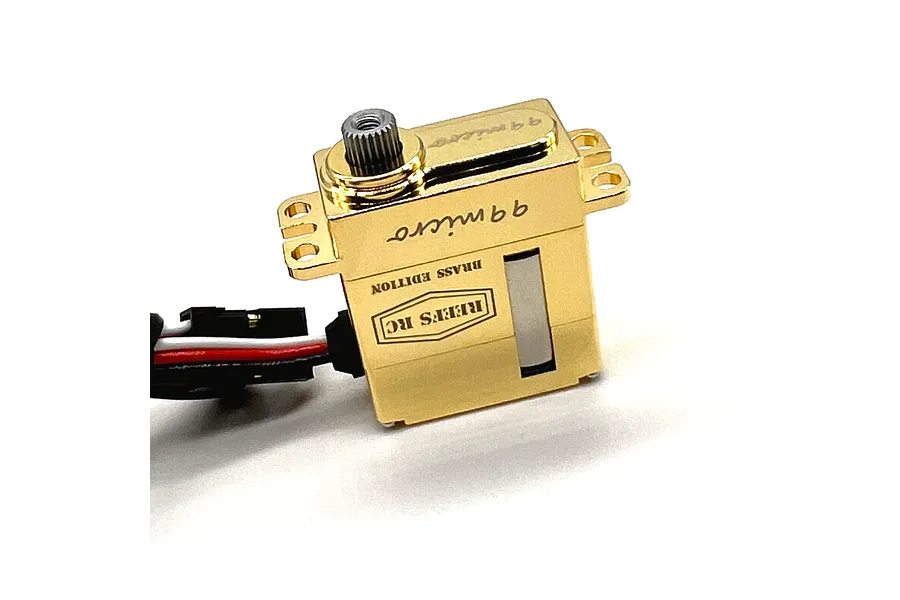

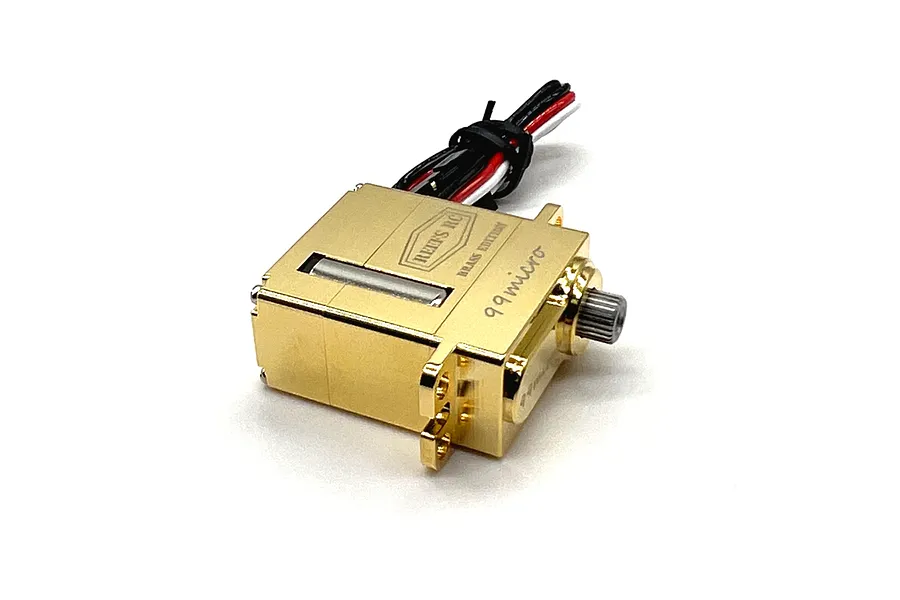

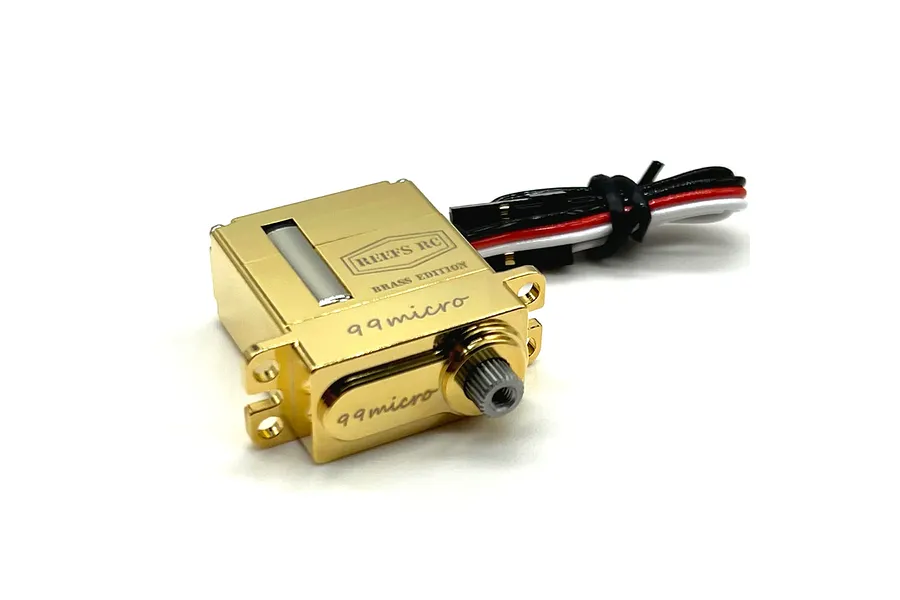

Reefs RC Brass 99MICRO Micro 8.3kg 8.4V Coreless Metal Gear Servo - Brass
Part no. REEFS162
Reefs RC 99 Micro Brass Edition 8.3kg RC Servo: High torque, high speed, and water-resistant.
- High torque of 8.3 kg-cm
- Water-resistant with precision metal gears
- Durable all-metal gears and CNC brass casing with ULTRA finish
- Compact size suitable for micro RC vehicles
- Voltage range: 6V - 8.4V
3+ in stock · Ships Thursday · order by Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Overview
The Reefs RC 99 Micro Brass Edition Servo is a top-tier choice for RC enthusiasts seeking high performance and reliability in a compact form. This digital coreless servo boasts impressive torque and speed, making it ideal for demanding applications. With a voltage range of 6V to 8.4V, it delivers consistent power and performance across various conditions.
Designed with durability in mind, the 99 Micro features precision metal gears and a CNC brass casing with an ULTRA finish, ensuring it can withstand rigorous use. The water-resistant design provides excellent protection against moisture, making it suitable for various environments. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC 99 Micro Brass Edition is a reliable and powerful addition to your RC setup.
Note
BEC is not required but recommended for maximum performance
Consult the manual for water-resistant standards and maintenance
Features
- High torque and speed digital coreless servo
- Strong torque @ 8.3 kg-cm (115 oz-in) and fast speed of 0.08 sec @ 8.4V
- Water-resistant with precision metal gears
- Pulse width modulation control
- Voltage range: 6V - 8.4V
- All-metal gears and CNC brass casing with ULTRA finish
- 2 ball bearings for smooth operation
- 22AWG wires
- Genuine Reefs RC product
In the box
- 1x Reefs RC 99 Micro Brass Edition Servo
Specifications
| Torque(6.0V) | 6.4 kg-cm (89 oz-in) |
|---|---|
| Torque(7.4V) | 7.1 kg-cm (99 oz-in) |
| Torque(8.4V) | 8.3 kg-cm (115 oz-in) |
| Speed | 0.11 sec (6.0V), 0.09 sec (7.4V), 0.08 sec (8.4V) |
| Operating Voltage | 6V - 8.4V |
| Weight | 36g (1.27oz) |
| Bearing Type | 2 Ball Bearings |
| Motor Type | Coreless Motor |
| Gear Type | Precision Metal Gears |

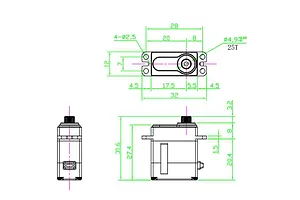

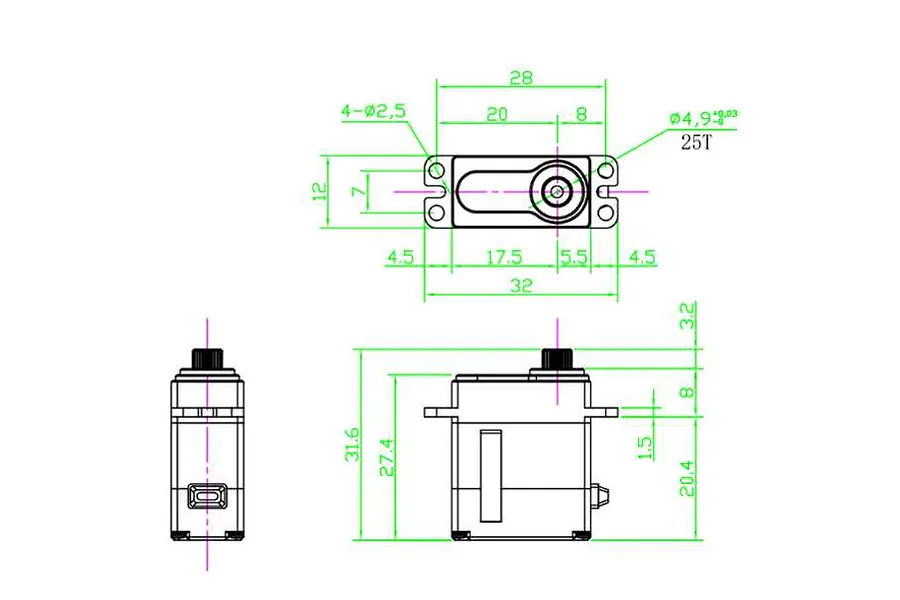

| Size | 22.9x11.9x27.4mm (0.90x0.47x1.08") |
Servo
| Size | Micro |
|---|---|
| Gear Material | Metal |
| Servo Spline Count | 25Tooth |
| Waterproof Casing | Splash Proof |
| Input Voltage Range | 6V, 7.4V, 8.4V |
| Case Material | Brass |
| Drive Motor Type | Coreless |
| Rotational Degrees | 120° (Normal) |
| 6V Torque kg/cm | 6.4 |
| 6V Sec/60 Degrees | 0.11 |
| 7.4V Torque kg/cm | 7 |
| 7.4V Sec/60 Degrees | 0.09 |
| 8.4V Torque kg/cm | 8.3 |
| 8.4V Sec/60 Degrees | 0.08 |
| Signal Type | Digital |
