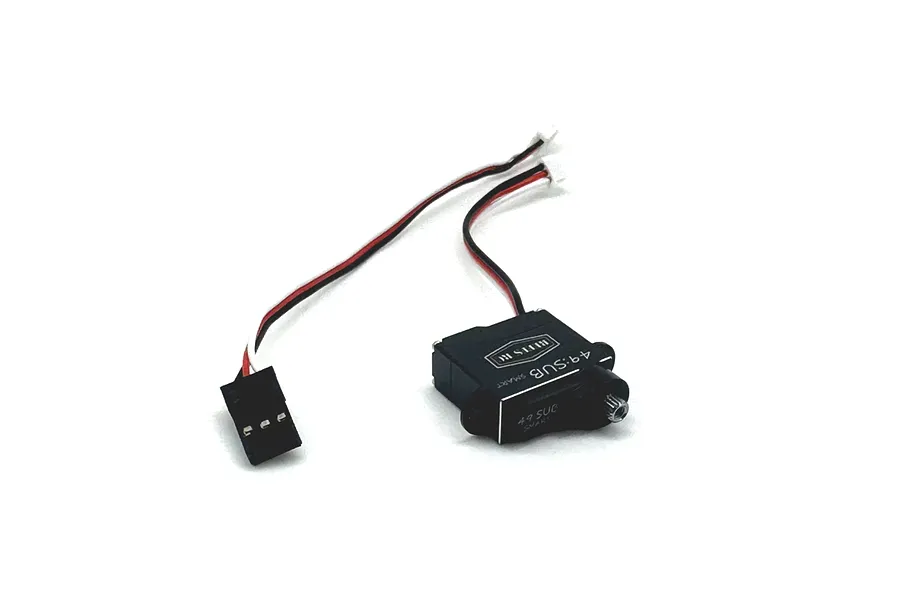

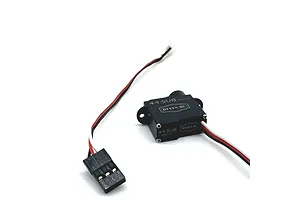

Reefs RC SUB Micro 3.52kg SMART 8.4V Metal Geared Servo/Winch - Black

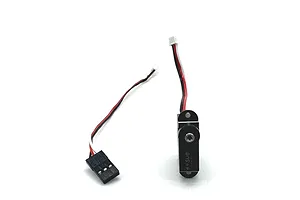

Reefs RC SUB Micro 3.52kg SMART 8.4V Metal Geared Servo/Winch - Black image 101601

Reefs RC SUB Micro 3.52kg SMART 8.4V Metal Geared Servo/Winch - Black

Brand: Reefs RC | SKU: REEFS207

2 in stock

write a review

$109.96

Reefs RC SUB Micro 3.52kg SMART Servo/Winch: High-torque, high-speed micro servo with metal gears, CNC aluminium casing, and SMART chip technology

High torque output of up to 3.52kg-cm (49oz-in) at 8.4V for demanding applications
Fast operating speed of up to 0.05 sec/60° at 8.4V for precise control
Durable metal gears and CNC aluminium casing for increased strength and longevity
SMART chip technology allows for programming with REEFS LINK (sold separately)

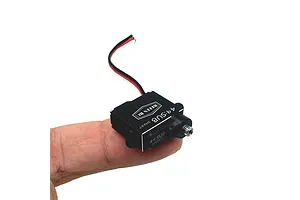

Compact SUB Micro size for installations with limited space

Pay later with

Recommended Products

Reefs RC Aluminium Sub Micro Tabs 2Pcs - Black

0 reviews

$15.95

Description

The Reefs RC SUB Micro 3.52kg SMART Servo/Winch is a powerful and versatile micro servo designed for various RC applications, including winching. Its high torque and speed make it suitable for demanding tasks, while its compact size allows for installation in tight spaces. The servo boasts a robust construction, featuring durable metal gears, a CNC machined aluminium casing, and sealed bearings for protection against the elements. The integrated SMART chip technology allows for custom programming and fine-tuning using the optional REEFS LINK programming tool.

Operating within a voltage range of 4.8V to 8.4V, this servo delivers impressive performance. At 8.4V, it achieves a torque of 3.52kg-cm (49oz-in) and a speed of 0.05 sec/60°. The 20Tφ4.0mm spline ensures compatibility with a wide range of servo horns and accessories. While a BEC is not strictly required, it is recommended for maximum performance. For multi-use installations, 49SubMicro Tabs are recommended (sold separately). This servo can also be used as a winch with the appropriate spool kit.

Features

High torque and high speed operation
Military-grade construction
Pulse Width Modulation (PWM) control
SMART chip technology (requires REEFS LINK for programming)
Metal gears for durability
CNC aluminium casing
Sealed bearings
Wide operating voltage range (4.8V - 8.4V)
180°±10° operating travel
20Tφ4.0mm spline
Genuine Reefs RC Product

Specifications

Voltage: 4.8V - 8.4V
Gears: Metal
Casing: CNC Aluminium
Weight: 7g (0.24oz)

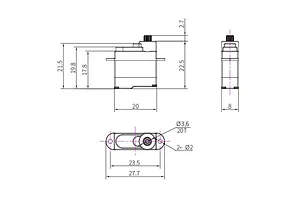

Dimensions: 20 x 8 x 17.8 mm (LWH)
Torque: 37oz-in (2.66kg-cm) @ 6.0V, 43oz-in (3.09kg-cm) @ 7.4V, 49oz-in (3.52kg-cm) @ 8.4V
Speed: 0.075 sec/60° @ 6.0V, 0.058 sec/60° @ 7.4V, 0.05 sec/60° @ 8.4V
Spline: 20Tφ4.0mm
Dead Band Width: 2µs

Included Items

1x Reefs RC SUB Micro 3.52kg SMART Servo/Winch

Specifications

Servo

Total Length: 27.7mm
Total Width: 8mm
Drive Motor Type: Brushless
Top to Under Mount: mm
8.4V Sec/60 Degrees: 0.05
Input Voltage Range: 7.4VV, 6VV, 8.4VV
Rotational Degrees: 180°
8.4V Torque kg/cm: 3.52
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 2.66
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 20Tooth
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.075
7.4V Torque kg/cm: 3.09
Total Height: 29.7mm
7.4V Sec/60 Degrees: 0.058
Body Length: 20mm
Bottom to Under Mount: 17.8mm
Size Conventionally sized servo names: Micro
