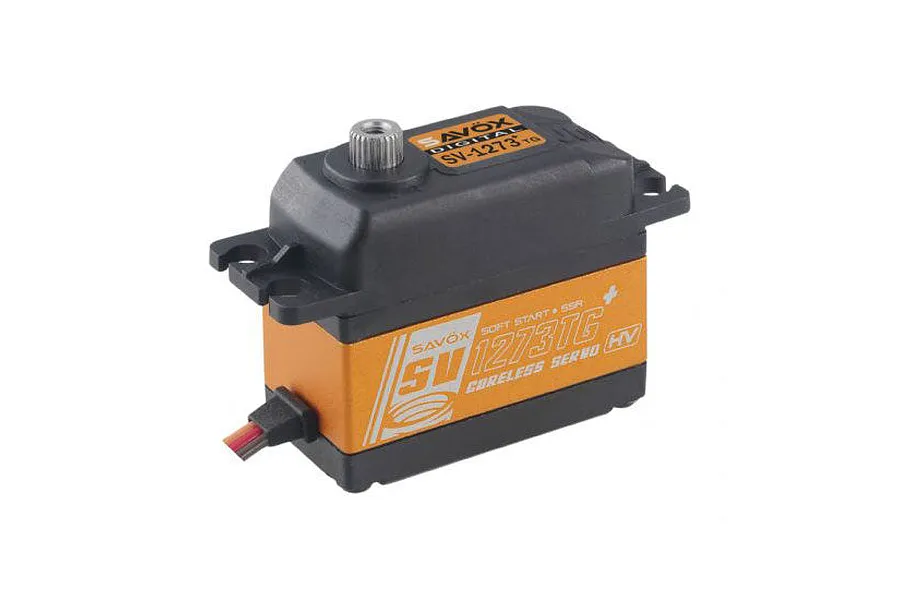

Savox Orange Aluminium 25kg 8.4V HV Plus Standard Coreless Metal Geared Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The Savox SV-1273TG Plus Ultra Speed High Voltage Titanium Gear Digital Servo is a top-of-the-line servo that delivers exceptional speed and torque, making it ideal for a wide range of applications. The "Plus" series adds two more advantages: Soft Start for smoother operation and Sanwa SSR compatibility for expanded compatibility.
- Utilises impressive titanium gearing for incredible strength and longevity
- Aluminium middle case provides protection and cooler operation
- Capable of High Voltage usage
- Employs a super high refresh rate to ensure a super smooth operation
- Plus series includes Soft start and Sanwa SSR compatibility
- Ideal for 1/10 Buggies and some helicopter applications
- Spline size: 25T Spline
- Servo Technology: Digital
- Operating Voltage: 7.4V - 8.4V
- Motor Type: Coreless Motor
- Weight: 64g
- Gear Type: Titanium Gears
- Refresh Rate: 333 Hz
- Servo Case: Orange Aluminium Middle w/ Plastic Top & Bottom
- Torque @ 7.4V: 20 kg-cm (277.7 oz-in)
- Torque @ 8.4V: 25 kg-cm (347.2 oz-in)
- Speed @ 7.4V: 0.065 sec/60 deg
- Speed @ 8.4V: 0.055 sec/60 deg
- Connector type: JR/Futaba

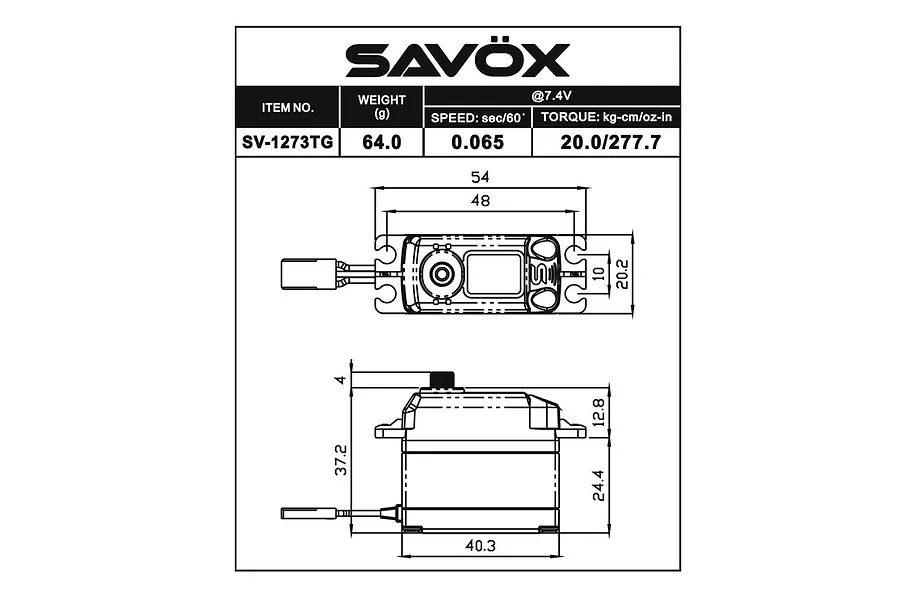

- Total Height (A) = 41.2mm
- Body Width (B) = 40.3mm
- Below Mount (C) = 24.4mm
- Above Mount (D) = 12.8mm
- Total Length (E) = 54mm
- Total Width (F) = 20.2mm
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
| Description | QTY |
|---|---|
| Savox Orange Aluminium 25kg 8.4V HV Plus Standard Coreless Metal Geared Servo | 1 |
| Servo | |
|---|---|
| Size: | Standard |
| 7.4V Torque kg/cm: | 20 |
| 7.4V Sec/60 Degrees: | 0.065 |
| 8.4V Torque kg/cm: | 25 |
| 8.4V Sec/60 Degrees: | 0.055 |
| Servo Spline Count: | 25Tooth |
| Gear Material: | Titanium |
| Waterproof Casing: | No |
| Signal Type: | Digital |
| Input Voltage Range: | 7.4VV, 8.4VV |
| Drive Motor Type: | Coreless |
| Case Material: | Aluminium |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | 41.2mm |
| Body Length: | 40.3mm |
| Bottom to Under Mount: | 24.4mm |
| Top to Under Mount: | 12.8mm |
| Total Length: | 54mm |
| Total Width: | 20.2mm |
