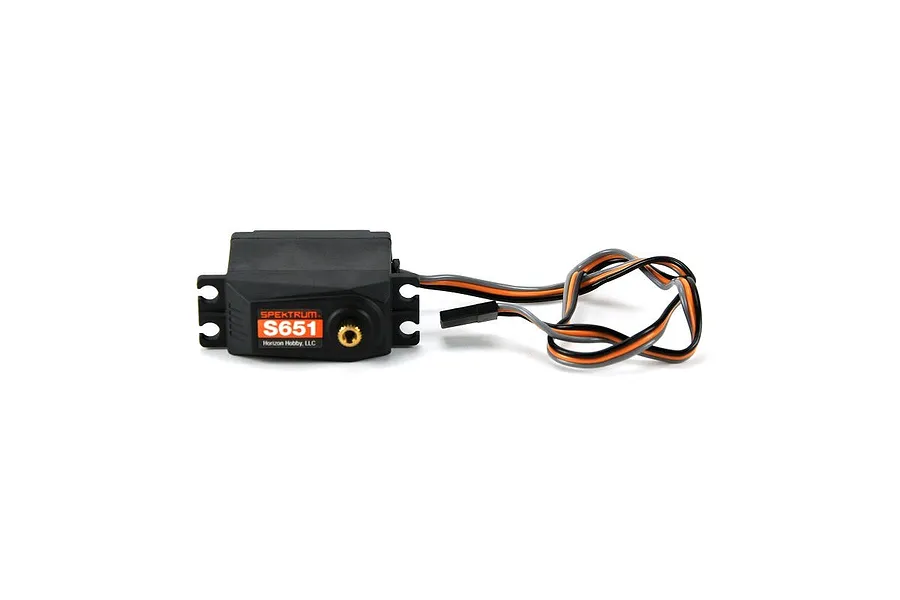

Spektrum SPMS651 Standard 7kg 7.2V Metal Geared Waterproof Servo
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Spektrum S651 7kg Servo with 15% more torque than the previous ADS-7M servo for enhanced steering.
SpecificationsGear Material: Brass
Speed: 0.143 @ 6V - 0.122 @ 7.2V
Torque: 6.37 @ 6V, 7.42kg @ 7.2V
Voltage: 6V/7.2V
Waterproof: Yes
Spline Count: 23T
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Spektrum S651 Servo Dimensions
Total Height (A) = 43mm
Body Width (B) = 40.5mm
Below Mount (C) = 25mm
Above Mount (D) = 18mm
Total Length (E) = 54mm
Total Width (F) = 20mm
Included items
| Description | QTY |
|---|---|
| Standard SPMS651 7kg 7.2V Steel/Brass Geared Servo | 1 |
-
Height (A)
- 43mm
-
Body Length (B)
- 40.5mm
-
Bottom to Under Mount (C)
- 25mm
-
Top to Under Mount (D)
- 18mm
-
Length (E)
- 54mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Steel & Brass
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 23Tooth
-
Input Voltage Range
- 6VV
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 7
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.143
-
Signal Type
- Digital
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
