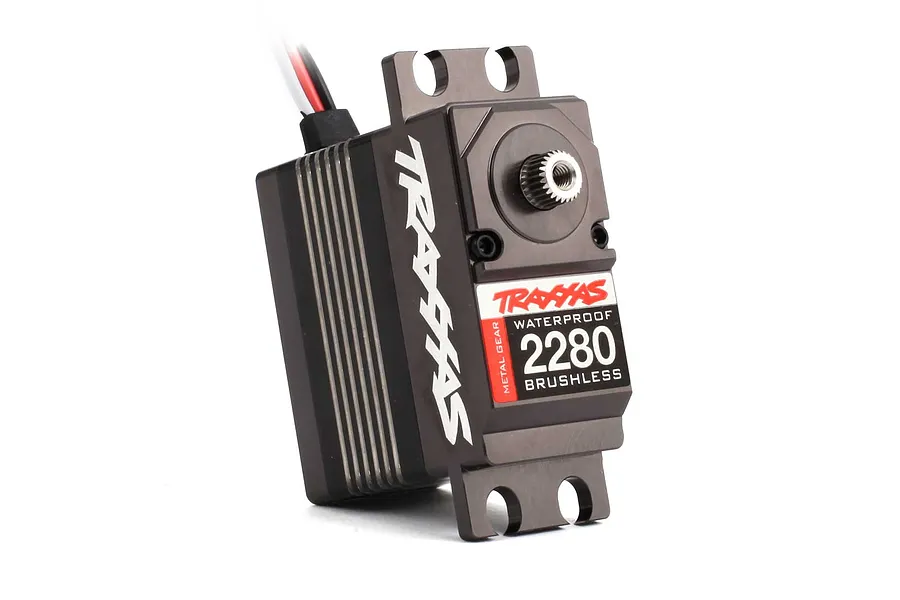

Traxxas High-Torque Maxx 50kg 6V Brushless Metal Gear Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Forget wimpy steering. The Traxxas High-Torque 600 is a beast, packing 36 kg of punch at 6 volts and an insane 50 kg at 7.4V. Heavy trucks? No problem! Full steel gears, silky-smooth bearings, and a cool-running aluminium case keep you in command, turn after turn.
- Designed to bolt straight into a wide range of 1/10 and 1/8 scale traxxas vehicles
- Fully waterproof design
- Compatible with Traxxas stability management
- Brushless Motor technology

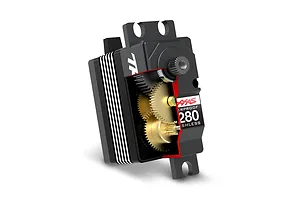

- Equipped with full steel gears for maximum durability
- Equipped with Ball bearings for minimal friction
- Finned aluminium case provides a durable centre and keeps the servo cool
Video
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Servo Dimensions
- Total Height (A) = N/A
- Body Width (B) = N/A
- Below Mount (C) = N/A
- Above Mount (D) = N/A
- Total Length (E) = N/A
- Total Width (F) = N/A
- Torque(6V): 36 kg-cm (580 oz-in)
- Torque(7.4V): 50 kg-cm (705 oz-in)
- Speed: 0.13sec (6V)
- Speed: 0.09sec (7.4V)
- Operating Voltage: 6V - 7.4V
- Weight: 64 g (2.25 oz)
- Bearing Type: Ball Bearing
- Motor Type: Brushless
- Operating Temperature: N/A
- Refresh Rate: N/A
- Size: Standard
| Description | QTY |
|---|---|
| Traxxas High-Torque Maxx 50kg 6V Brushless Metal Gear Servo | 1 |
-
Servo Spline Count
- 25Tooth
-
Total Length
- mm
-
Total Width
- mm
-
Bottom to Under Mount
- mm
-
Top to Under Mount
- mm
-
Input Voltage Range
- 6VV, 7.4VV
-
Drive Motor Type
- Brushless
-
Rotational Degrees
- 120° (Normal)
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.13
-
Signal Type
- Digital
-
Case Material
- Aluminium
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 36
-
Gear Material
- Steel
-
Waterproof Casing
- No
-
7.4V Torque kg/cm
- 50
-
Total Height
- mm
-
7.4V Sec/60 Degrees
- 0.09
-
Body Length
- mm
-
SizeConventionally sized servo names
- Standard
