Description

&nbspServos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

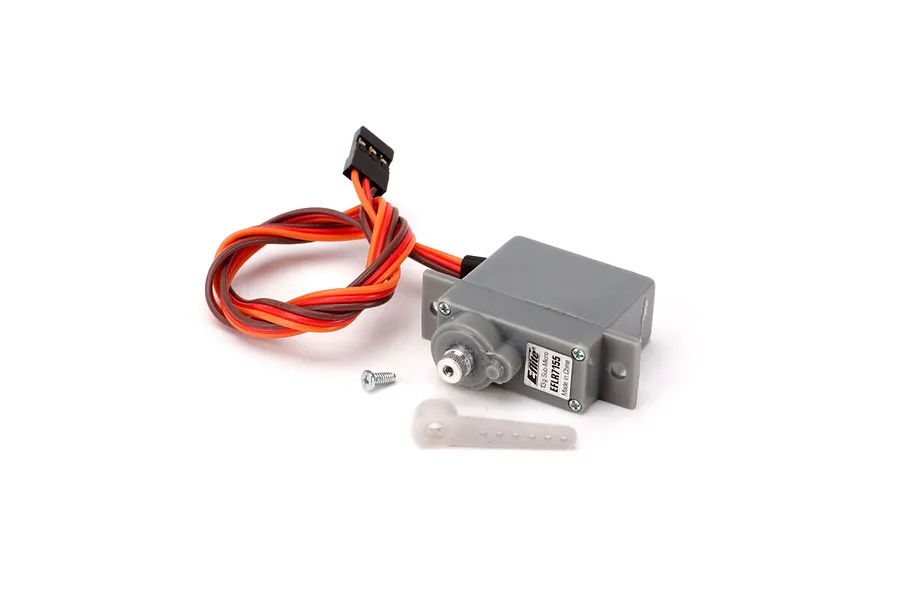

E-Flite 13g Metal Geared Servo.

Specifications

Gear Material: Metal
Case Material: Plastic

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

E-Flite 13g Micro Servo Dimensions

Total Height (A) = 33mm
Body Width (B) = 26.5mm
Below Mount (C) = 18mm
Above Mount (D) = 15mm
Total Length (E) = 39mm
Total Width (F) = 12.6mm

Included items

Description	QTY
E-Flite 13g Metal Geared Servo	1

Specifications

Servo

Height (A): 33mm
Body Length (B): 26.5mm
Bottom to Under Mount (C): 18mm
Top to Under Mount (D): 15mm
Length (E): 39mm
Width (F): 12.6mm
Size Conventionally sized servo names: Sub Micro
Gear Material: Metal
Waterproof Casing: No
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 0.13
Signal Type: Digital
Drive Motor Type: Brushed
Case Material: Plastic
Rotational Degrees: 120° (Normal)
