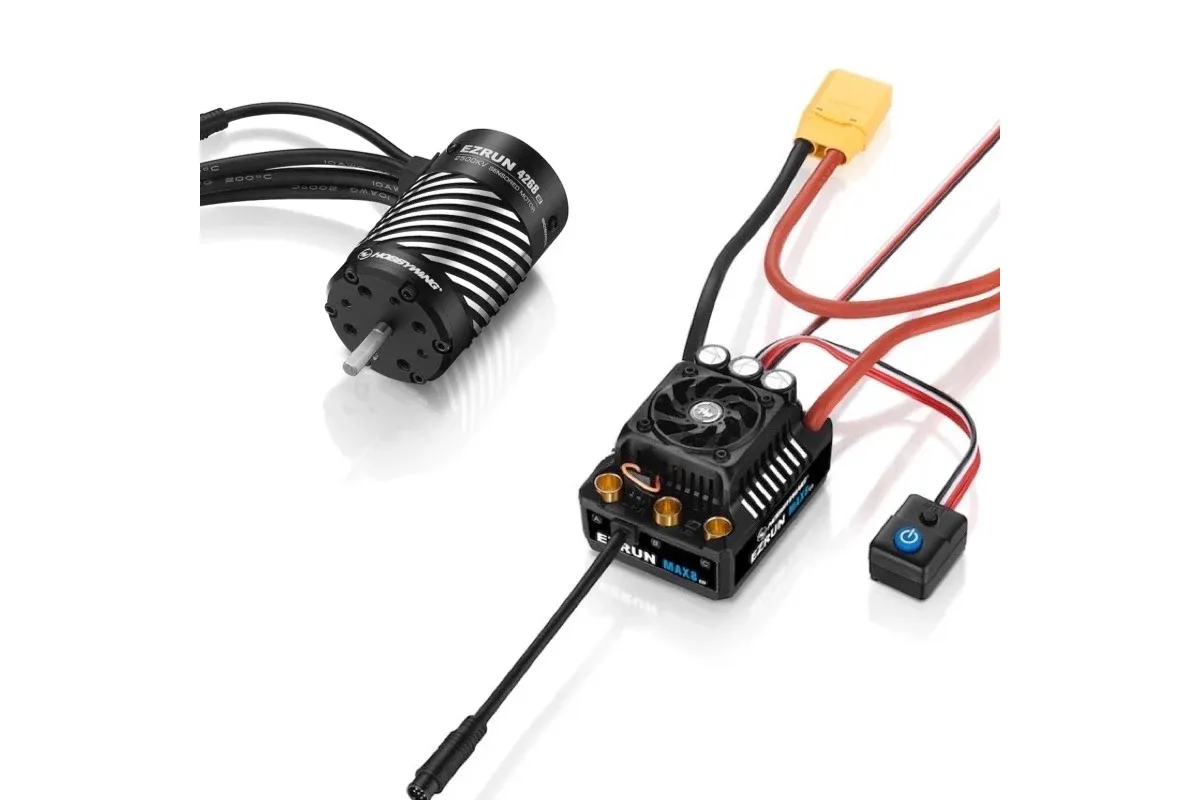

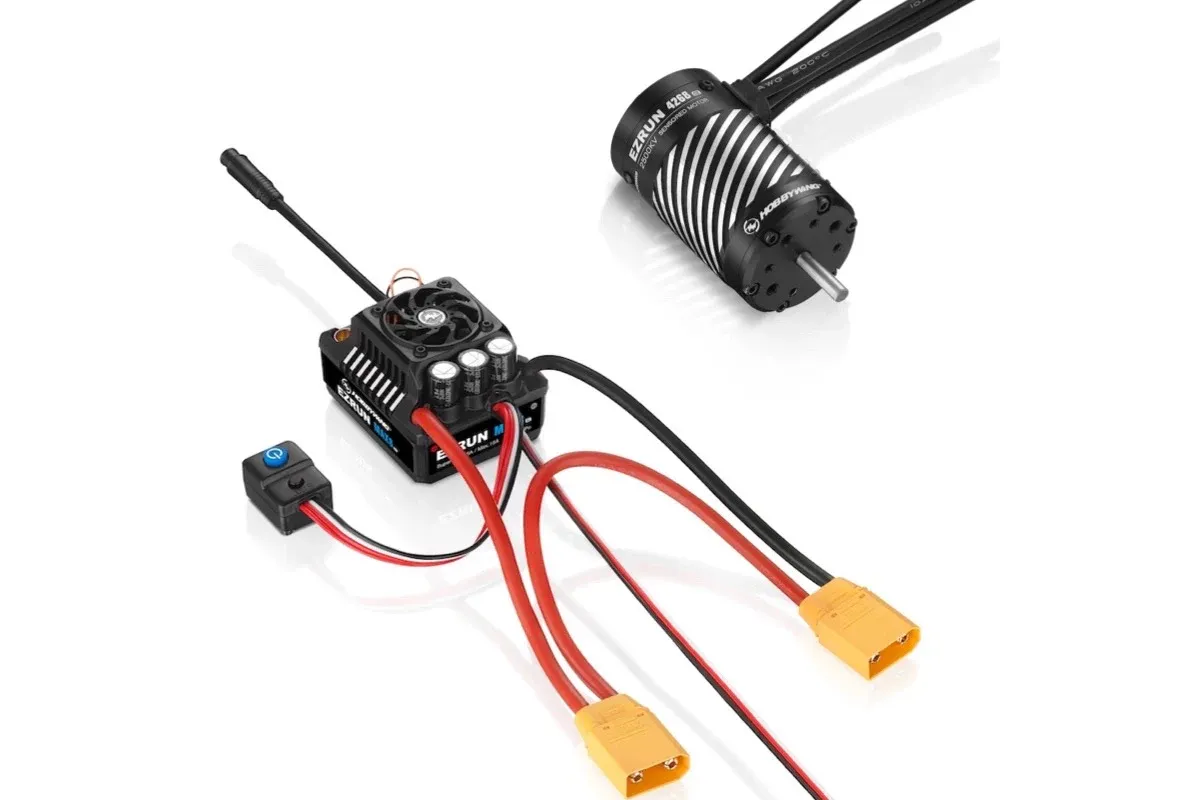

Name: Hobbywing EzRun Max8 G2 160A ESC & 4278SD 2250Kv Sensored Brushless Motor Combo
Brand: Hobbywing
SKU: HW-38020353
Price: 471.37 AUD
Availability: Discontinued

Recommended products

Discontinued

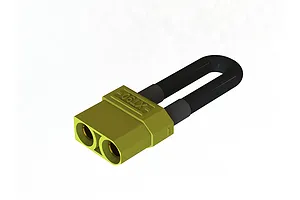

ARRMA ESC Female XT90 Loop Lead
$27.11
View

Overview

6S LiPo Compatibility

The Hobbywing MAX8 ESC manual notes that the warranty does not extend to issues resulting from 6S LiPo configurations. Please visit the Hobbywing website for information and consult the manual for proper operation guidelines.

This combo contains a built-in chip that works with the Hobbywing EZRun MAX8 G2 ESC, creating a pure and full sensor mode power system for better performance and smoother control. The rotor has four strong and heat-resistant magnets that provide super torque and explosive power. The encoder outputs a pure and stable sensor signal, avoiding interference. The motor also has high output efficiency, which reduces the temperature and increases the power.

The motor is made of high-quality materials including CNC machined aluminium, high-purity copper, stainless steel, and silicon steel. It has a new sensor interface and rubber cover bearing that are more waterproof and dustproof than traditional ones.

Note

Brushless electric motors and ESCs have large amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large or heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within safe operating limits.

Features

32 Degree Turbo Timing Setting: when used with the matching motor (such as EZRUN 4278SD), the maximum rpm can be increased by about 25% — requires OTA Programming Card (sold separately)
Innovative waterproof design to increase waterproofing and dust-proofing performance in different climates — handles sediment, ice, snow, and water accumulation
Built-in ultra-powerful switch mode BEC with support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos
Advanced electronic switch that protects against dust, humidity, and violent impacts
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection
Support for LED program card, LCD G2 program box, OTA programmer (optional) to set ESC parameters
Real-time data logging to view running data on the HW LINK app using the OTA Bluetooth module
Support for firmware upgrade of the ESC (multi-function LCD G2 program box or OTA Programmer required, sold separately)
Genuine Hobbywing Product

In the box

1x Hobbywing EZRun MAX8 160A G2 Sensored Brushless ESC
1x Hobbywing EZRun 4278SD 2250Kv Sensored Brushless Motor

Specifications

	ESC
Scale	1/8th
Continuous/Peak Current	160A / 1050A
Input	3–6S LiPo
Motor Limit	4S LiPo: KV≤3000; 6S LiPo: KV≤2400 (4278 size motor)
BEC Output	6V / 7.4V / 8.4V adjustable, continuous current 10A (switch-mode)
Switch Mode	Electronic
Waterproof	Yes
Dimensions	60mm (L) x 48mm (W) x 40.5mm (H)
Weight	192g
Input Connector	XT90; Output: 6.5mm gold plug (female)
	Motor
Poles	4
KV (no-load)	2250KV
Diameter x Length	42mm x 78mm
Shaft	5mm diameter, 18.5mm projecting
LiPo	3–6S
Weight	355g (no wire)
Applicable	1/8 Off-Road, 1/10 Truck, Crawler

Motor

Type	Brushless
KVRPM (Revolutions Per Minute) per Volt	2250KV
LengthLength of the motor can in mm	78mm
DiameterDiameter of the motor can	42mm
Shaft Diameter	5mm

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	22.2V
Waterproof Design	Yes
Continuous Amps	160A
Motor Connectors	6.5mm Bullet
Battery Connector	XT90
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Fan
BEC Voltage	6V, 7.4V, 8.4V
Dual Motor	No
