WARRANTY INFO: Your Castle ESC is warranted for one (1) year from date of purchase to be free from manufacturing and component defects. This warranty does not cover damages caused to your motor or controller from abuse. Abuse includes, but is not limited to, incorrect wiring, over-voltage, overloading, improper gearing, improper motor selection, incorrect controller settings, insufficient batteries, or inadequate connectors. Always monitor your ESC and motor temperatures during the first run after modifying your system to ensure they stay within the safe operating limits.WARNING: Drag and speed run setups are inherently abusive and exceedingly hard on all electronic components. Every component in the configuration can be strained, weakened or worse without extreme caution, an understanding of electric theory and advanced knowledge of all aspects of the RC hobby. High speed runs and drag racing are the most aggressive and volatile applications in the RC car hobby. Improper setup or use of this product can result in catastrophic failures of the motor, ESC and/or batteries. For this reason, Castle does NOT warranty products used in these abusive applications.

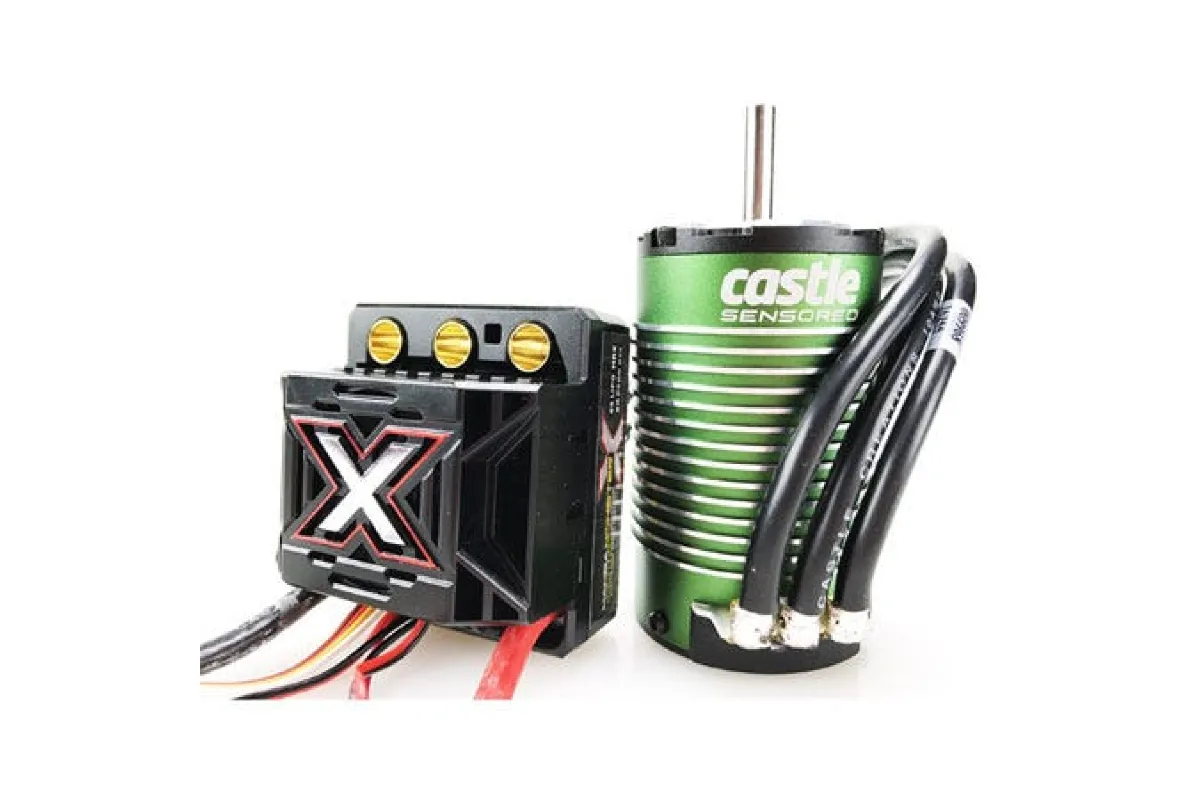

Overpower your 1/8 & 1/10 scale buggies and on-road cars (up to 9 lbs RTR) with the Castle Creations Monster X Brushless ESC w/ 2650kv 1512 Sensored Motor Combo. This combo offers smooth, sensor-based control and brutal power for demanding applications, all in a waterproof package.

Features

• Waterproof ESC design for all-weather bashing

• Sensor-based operation for smooth, precise throttle response

• Powerful 1512-2650Kv motor delivers massive torque

• Auxiliary wire for on-the-go adjustments

• Programmable with Castle Link software for custom tuning

• Data logging capability for performance analysis

• Audible alerts for easy troubleshooting

• Genuine Castle Creations product

SpecificationsESC Specifications

• Length: 53mm (2.09 in)

• Width: 49mm (1.93 in)

• Height: 36.4mm (1.44 in)

• Weight: 111g (3.92 oz)

• Continuous/Peak Current: N/A

• Waterproof: Yes

• Motor Limit: N/A

• BEC: 5.5V, 6.0V, 7.5V. or 8.0V

• Voltage Limit: 2-6S LiPo

• Programmable: Yes (Castle Link)

• Scale: 1/8 & 1/10

• Sensored: Yes

Motor Specifications

• Weight: 383g (13.6oz) (with wires)

• Diameter: 40mm (1.57 in) (41.4mm with fins)

• Length: 67.7mm (2.67 in)

• Shaft: 5mm (0.20 in)

• Max Voltage: 2-4S LiPo

• Case Material: Aluminium

• Waterproof: Yes

• Motor Type: Brushless Sensored

Included items

Description	QTY
Castle Creations Mamba Monster X Brushless ESC	1
Castle Creations 1512-2650Kv Sensored Motor	1
