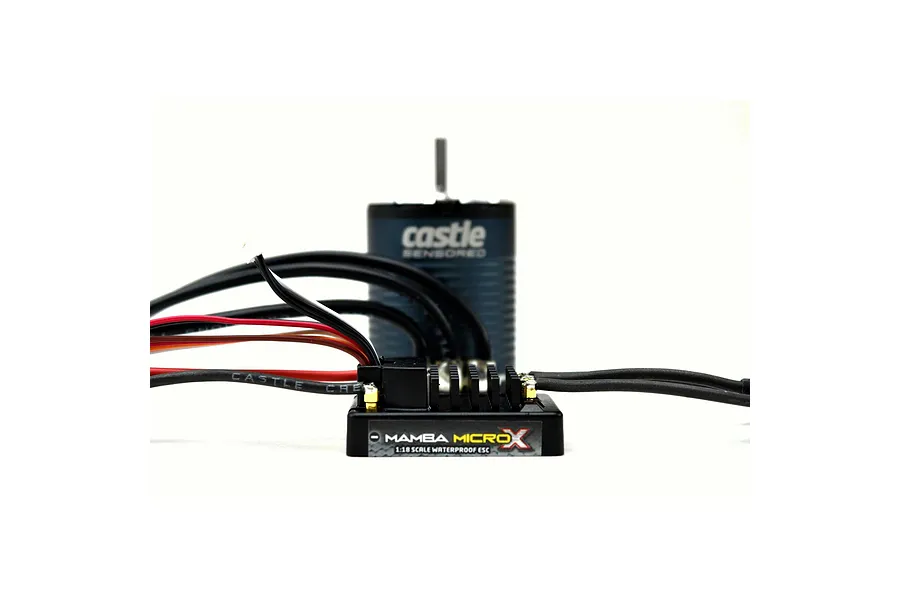

Castle Creations 1406-2280Kv 4-Pole Sensored Brushless Motor & Mamba Micro X Crawler Edition 3S ESC
Castle Creations 1406-2280Kv 4-Pole Sensored Brushless Motor & Mamba Micro X Crawler Edition 3S ESC
Castle Creations Mamba Micro X Crawler Edition ESC & 1406-2280kv sensored motor combo for vehicles up to 8 lbs on 2S–3S.
- Ideal for crawling/trail running in vehicles up to 8 lbs on 2S or 3S
- Special Edition with solder posts and 16 AWG motor wires
- 4-pole 12-slot sensored motor (1406-2280kv) included
- Waterproof ESC — no cooling fan needed
- Rebuildable motor design
The Mamba Micro X Crawler edition is Castle's latest offering for the crawling crowd. The 1406-2280kv sensored brushless motor is paired with the lightweight, small footprint Mamba Micro X ESC. This combo is ideal for low-speed crawling or trail running in vehicles weighing up to 8 lbs on 2S or 3S; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4 lbs. If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, Castle recommends the Mamba X ESC with the same motor. The ESC comes with V2.02 firmware enhanced for rock crawling and sensored operation. Use of an external BEC is recommended if running a high power or digital servo.
This Special Edition of the Mamba Micro X includes solder posts with 16 AWG wire for the motor connection, plus the matching 4mm female bullets to pair with the included 1406-2280kv sensored brushless motor.
- Improved 4-pole 12-slot design boasts exceptional efficiency and produces less heat
- Optimised design eliminates the need for mechanical timing adjustments; sensor alignment method delivers uniform timing and torque in both directions automatically
- Rebuildable design allows users to replace front end bell/bearing assembly or rotor/shaft assembly
- ROAR standard sensor port and labelled connections
- Updated modern and sleek design
ESC
- Input Voltage Range: MIN 2S LiPo, MAX 3S LiPo (12.6V)
- BEC Specifications: Adjustable 5.5V or 7.5V (2A Peak), default 5.5V. Use of external BEC is recommended if using a high torque/speed digital servo; the CC BEC or CC BEC 2.0 Waterproof is recommended
- Operating Environment: Waterproof* design allows for use in nearly any environment
- Brake: Proportional
- Reversible: Yes, but it can be disabled for racing
- On/Off Switch: Yes, waterproof*
- Cooling Fan: No
- Size: Length 1.6" (41mm), Width 0.75" (19mm), Height 1.1" (28mm)
- Weight (without wires): 1.20 oz. (34g)
- Programmability: Yes
- Telemetry Link: Yes
Motor
- Input Voltage Range: 2S–3S LiPo
- Kv: 2280
- Max. RPM: 100,000
- Size: Length 49.5mm, Diameter 36mm
- Weight (w/wires): 197g / 6.9oz
- Shaft Size: Length 15mm, Diameter 1/8" (3.17mm)
- Mounting Hole Specifications: M3 @ 25mm
- 1x Crawler Edition Mamba Micro X w/solder posts
- 1x 1406-2280kv sensored brushless motor
- 1x 210mm length sensor wire (for sensored operation)
- 1x Castle Sensor Harness adapter
- 1x Driver's Ed and Quick Start Guides
- 1x Castle decal sheet
Although the Mamba Micro X is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt. The cooling fan must be removed prior to driving in wet conditions.
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 2280KV
-
LengthLength of the motor can in mm
- 49.5mm
-
DiameterDiameter of the motor can
- 36mm
-
Shaft Diameter
- 3.175 (1/8")mm
-
For Motor Type
- Brushless
-
Max Voltage
- 11.1V
-
Waterproof Design
- Yes
-
Motor Connectors
- 4.0mm Bullet
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- ProgrammableV
-
Dual Motor
- No
