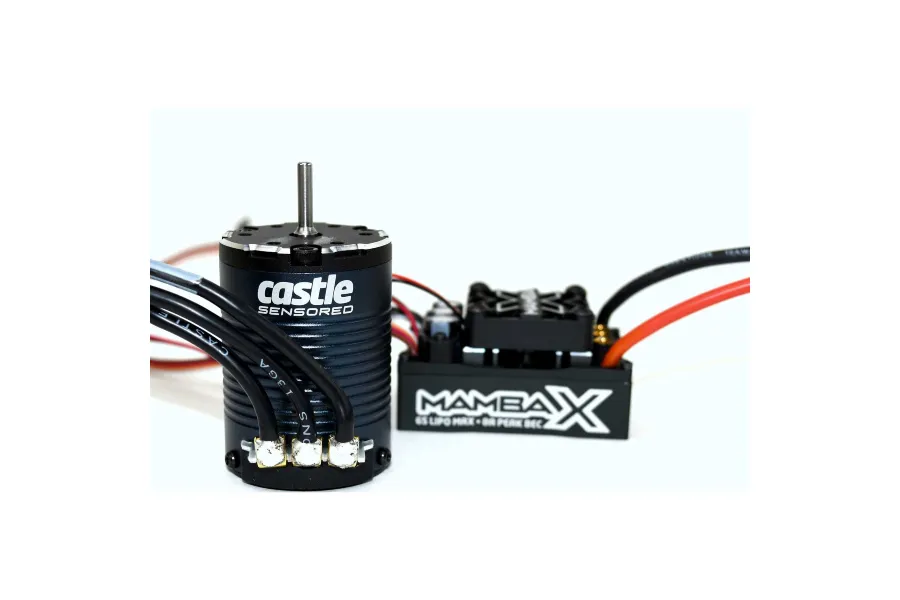

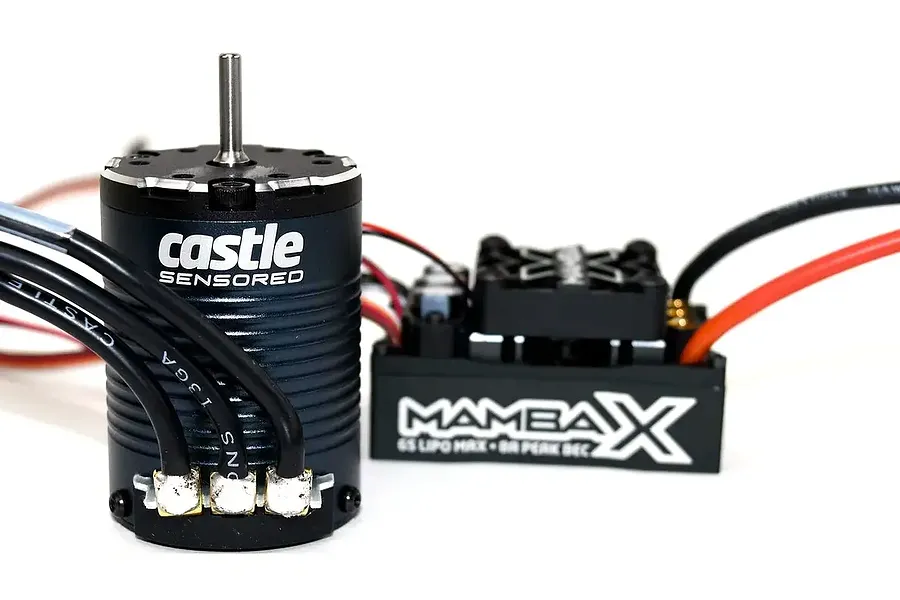

Castle Creations 1406-2850Kv 4-Pole Sensored Brushless Motor & Mamba X Waterproof 6S ESC Combo
Castle Creations 1406-2850Kv 4-Pole Sensored Brushless Motor & Mamba X Waterproof 6S ESC Combo
Castle Creations Mamba X Crawler Edition ESC & 1406-2850kv sensored motor combo for vehicles up to 9 lbs on 2S–4S LiPo.
- Ideal for crawling/trail running in vehicles up to 9 lbs on 2S–4S
- 4-pole 12-slot 1406-2850kv sensored motor included
- Waterproof CNC-machined aluminium ESC case
- SMARTSENSE™ for smooth sensored starts transitioning to efficient sensorless running
- Data logging and auxiliary wire on-the-fly tuning
The Mamba X Crawler edition pairs the 1406-2850kv low kv crawler motor with the high power, ultra reliable Mamba X ESC. This combo is ideal for low speed crawling or trail running in vehicles weighing up to 9 lbs on 2S to 4S; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5 lbs. The ESC comes with V2.02 firmware enhanced for rock crawling and sensored operation.
SMARTSENSE™ is enabled by default. The Mamba X uses the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ultra-efficient sensorless mode with electronic timing, automatically advancing timing for peak performance during all driving conditions.
- Input voltage range 2S–4S (with included motor) with internal 8A adjustable BEC (5.25V–8.0V)
- Rugged CNC-machined aluminium case potted in waterproof epoxy
- Removable 30mm cooling fan
- Recon G6 Certified
- Paired with improved 4-pole 12-slot sensored 1406-2850kv motor for precise throttle control and smooth starts
- Convenient transmitter programming for six common adjustable settings
- Firmware updates available via Castle Link USB and Castle Link Programming Suite
- Data logging captures and records performance data
- Auxiliary wire functionality for on-the-fly adjustments such as Rock Race/Crawler Mode
- SMARTSENSE™ software for smooth sensored startups and high-efficiency sensorless running
- QUIETSENSE™ for highest precision and most efficient startup
- Audible alerts for calibration and error condition notification
- Telemetry ready — compatible with Castle Creations Telemetry Link for Futaba T4PX or 7PX transmitters
ESC
- Input Voltage Range: MIN 2S LiPo, MAX 6S LiPo (25.2V) (4S max with included 2850kv motor)
- BEC Specifications: Adjustable 5.5V, 6.0V, 7.5V or 8.0V (8A Peak), default 5.5V
- Operating Environment: Waterproof
- Brake: Proportional
- Reversible: Yes, but may be disabled for racing
- On/Off Switch: Yes
- Cooling Fan: Yes, factory equipped (30mm)
- Size: Length 2.14" (54.4mm), Width 1.39" (35.2mm), Height 1.18" (30.0mm)
- Weight (with wires): 3.56 oz. (101g)
- Connectors: 4.0mm female bullets for motor connection
- Telemetry Link Capable: Yes
Motor
- Input Voltage Range: 2S–4S LiPo
- Kv: 2850
- Max. RPM: 100,000
- Size: Length 49.5mm, Diameter 36mm
- Weight (w/wires): 197g / 6.9oz
- Shaft Size: Length 15mm, Diameter 1/8" (3.17mm)
- Mounting Hole Specifications: M3 @ 25mm
- Connectors: 4mm male Castle Bullet Connectors on replaceable 13 gauge wire; includes 210mm length sensored wire
- 1x Mamba X Electronic Speed Controller
- 1x 1406-2850kv sensored brushless motor
- 1x 210mm length sensor wire (for sensored operation)
- 1x Castle Sensor Harness adapter
- 1x Driver's Ed and Quick Start Guides
- 1x Castle decal sheet
Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt. The cooling fan must be removed prior to driving in wet conditions.
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 2850KV
-
LengthLength of the motor can in mm
- 49.5mm
-
DiameterDiameter of the motor can
- 36mm
-
Shaft Diameter
- 3.175 (1/8")mm
-
For Motor Type
- Brushless
-
Max Voltage
- 22.2V
-
Waterproof Design
- Yes
-
Motor Connectors
- 4.0mm Bullet
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
Dual Motor
- No
