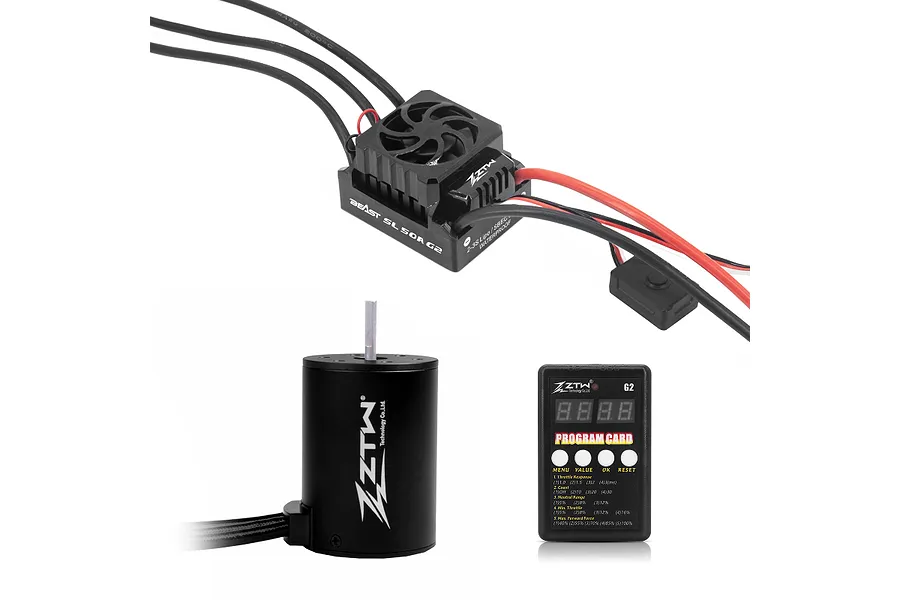

Name: ZTW Beast G2 SL 50A ESC & 3650 3450Kv Brushless Motor Combo
Brand: ZTW
SKU: ZTW-1105021
Price: 119.99 AUD
Availability: InStock
Rating: 5 (2 reviews)

Overview

Designed to be a budget-friendly ESC and motor combo, the ZTW range of combos certainly deliver on this, and does so while maintaining a high level of quality and features seen in higher end models.

Featuring a 32-bit microprocessor for fast and accurate motor output, waterproof design, a range of in-built protections, multiple programmable settings, and much, much more, the ZTW is sure to impress, and it is perfect for people new to the hobby and seasoned veterans on the 100th build.

With a range of motor and ESC combinations on offer, with a capable range of 7.4V–22.2V, there is sure to be something from the ZTW range that will be perfect for your next build.

Features

Program setting changes can be done through the ZTW LED program card
Low voltage, thermal cut off, locked rotor protection and throttle signal loss protection built in
4 pole brushless motor
32-Bit microprocessor provides an accurate motor output
Suitable for a wide range of 1/10 cars, buggies, monster trucks and more
14 Gauge input and output wires for minimal resistance
Can run up to an 11.1V (3S) LiPo Battery
NiMH and LiPo modes can be swapped between

In the box

1x ZTW Beast G2 SL 50A ESC
1x ZTW Beast 3650 3450Kv Brushless Motor

Specifications

Length	48 mm (1.89 in)
Width	38 mm (1.50 in)
Height	32.5 mm (1.28 in)
Weight	90 g (3.17 oz)
Continuous/Peak Current	50A/300A
Waterproof	Yes
Motor Limit	N/A
BEC	6V @ 3A
Combo Voltage Limit	11.1V
Programmable	Yes
Scale	1/10
Sensored	No

Motor

Type	Brushless
KVRPM (Revolutions Per Minute) per Volt	3450KV
LengthLength of the motor can in mm	50mm
DiameterDiameter of the motor can	36mm
Shaft Diameter	3.175mm (1/8")

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	7.4V
Waterproof Design	Yes
Continuous Amps	50A
Motor Connectors	4.0mm Bullet
Battery Connector	XT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Fan
BEC Voltage	6V
Dual Motor	No
