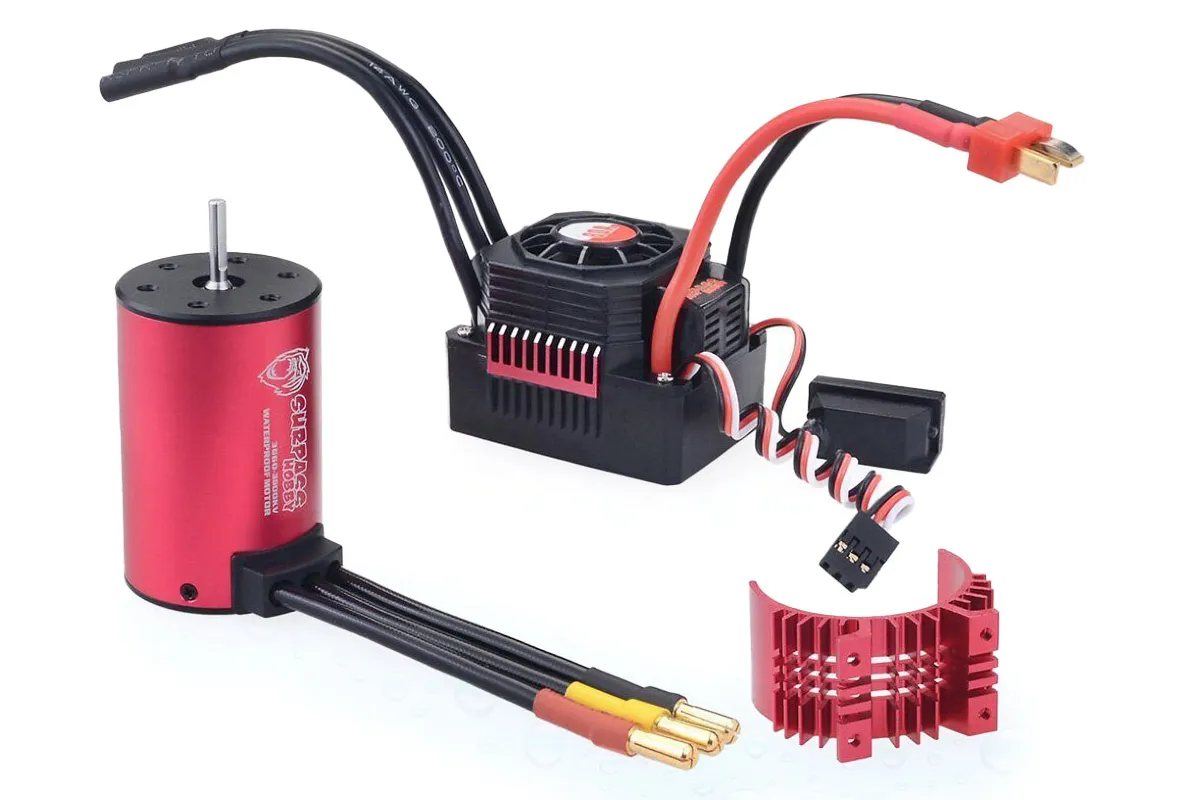

Surpass Supersonic 3660 3600kV Brushless Motor and 90A Waterproof ESC Combo
- Brushless
Part no. 036602-32
Sold outWrite a review
$134.13
or 4 fortnightly payments of $33.53 with afterpay
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Overview
Please Note:
This Combo comes with an XT60 Connector as standard. Included in the box is a XT60 to Deans Adaptor.
ESC Gearing
Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
The Surpass Supersonic 3660 3600kV Brushless Motor & 80A Waterproof ESC Combo is a powerful and reliable solution for your 1/10 scale RC car or truck. The brushless motor delivers smooth, consistent power, while the waterproof ESC ensures worry-free performance in all conditions.
Note
Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
Features
- Powerful 3600kV brushless motor
- 80A waterproof brushless ESC
- Multiple protection features for ESC and motor
- Suitable for 1/10 scale RC cars and trucks
- High-performance and reliable
- Easy to install and use
- Compatible with a variety of batteries
- Genuine Surpass Hobby product
In the box
- 1x Surpass Hobby Supersonic 3660 3600kV Brushless Motor
- 1x Surpass Hobby KK 80A Waterproof Brushless ESC
Specifications
| ESC Specifications | |
| Length | 51.5mm (2.03 in) |
| Width | 38.5mm (1.52 in) |
| Height | 38.5mm (1.52 in) |
| Weight | 84g (2.96 oz) |
| Continuous/Peak Current | 80A/480A |
| Waterproof | Yes |
| Motor Limit | 3670 <3000Kv |
| BEC | 6V @ 3A (Switch Mode) |
| Voltage Limit | 2-4S LiPo/4-12 Cells NiMH |
| Programmable | Yes (Optional LED program card) |
| Scale | 1/10th, 1/8th |
| Sensored | No |
| Motor Specifications | |
| Weight | N/A |
| Diameter | 36mm (1.42 in) |
| Length | 60mm (2.36 in) |
| Shaft | 3.175mm (0.125 in) |
| Max Voltage | 11.1V (3S LiPo) |
| Case Material | Aluminum |
| Waterproof | Yes |
| Motor Type | Brushless |
Motor
| Type | Brushless |
|---|---|
| KV | 3600KV |
| Length | 36mm |
| Diameter | 60mm |
| Shaft Diameter | 3.175mm (1/8") |
ESC (Electronic Speed Controller)
| For Motor Type | Brushless |
|---|---|
| Max Voltage | 11.1V |
| Waterproof Design | Yes |
| Burst Amps | 480A |
| Continuous Amps | 80A |
| Motor Connectors | 4.0mm Bullet |
| Battery Connector | XT60 |
| LVC | Yes |
| Programmable | Yes |
| Cooling Method | Fan |
| BEC Voltage | 6V |
| Dual Motor | No |
