Hobbywing

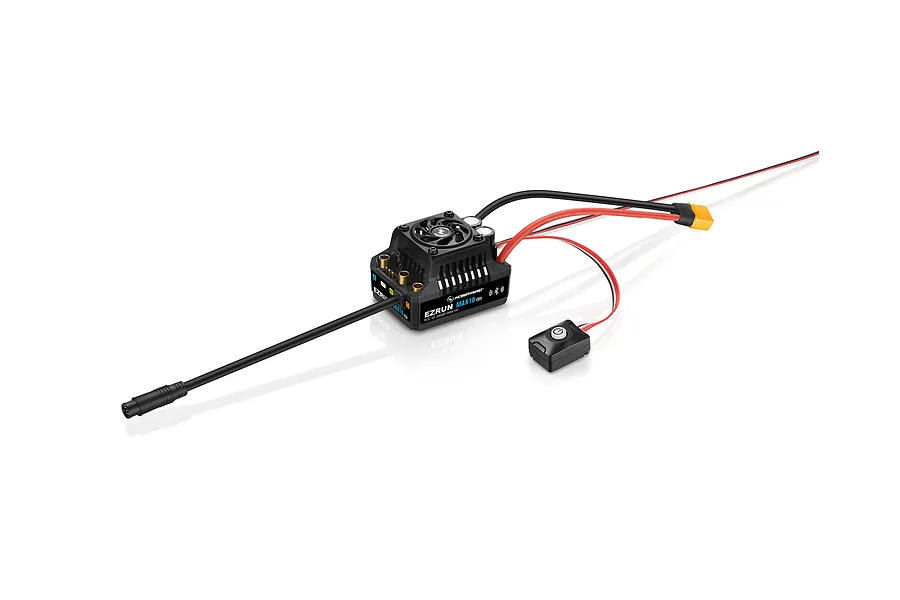

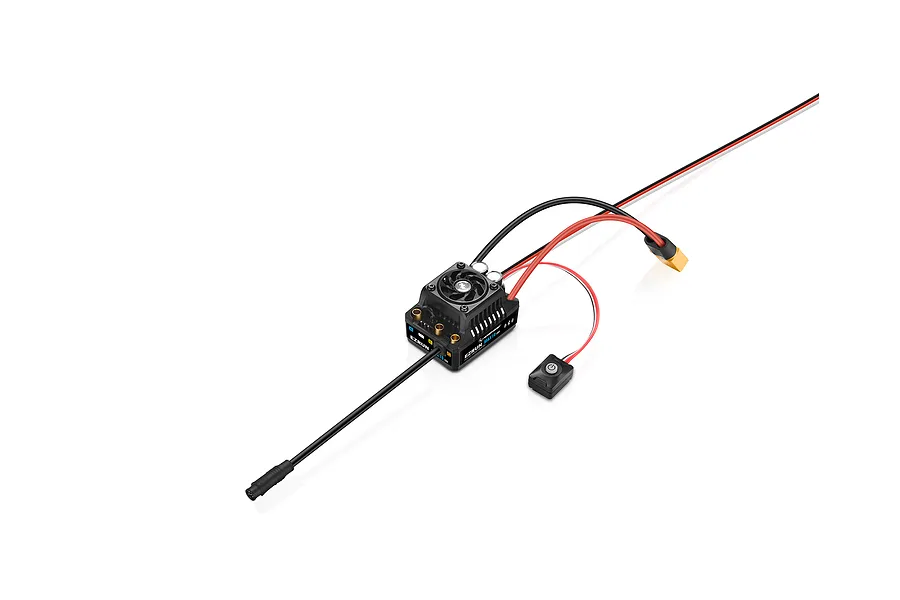

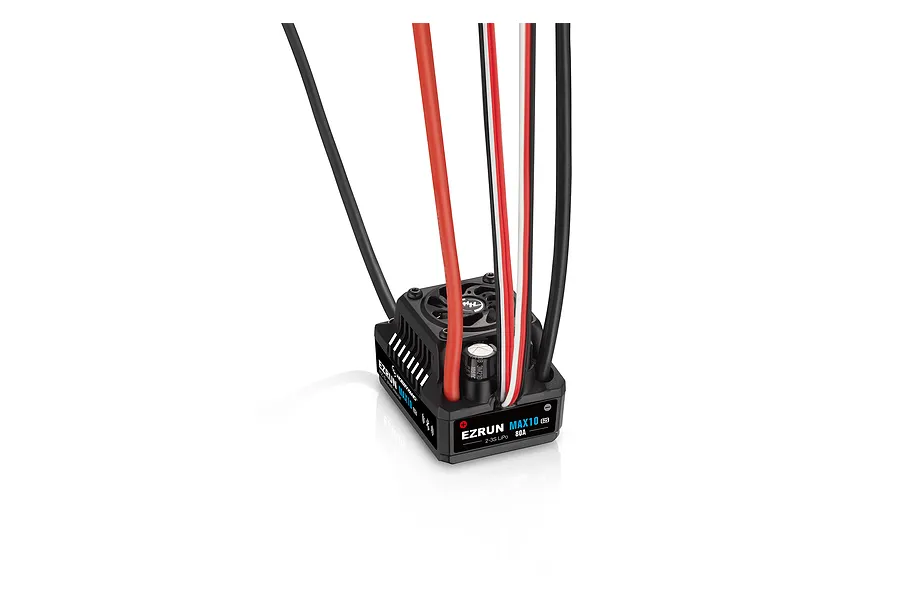

Hobbywing EzRun Max10 G2S 80A 2-3S Brushless ESC

  • Brushless

Part no. 30102700

New · 2 in stockNo reviews yet
1 / 3
1 / 3

$134.02

or 4 fortnightly payments of $33.50 with afterpay or PayPal, or zip

Hobbywing EzRun Max10 G2S 80A 2-3S Brushless ESC Upgrades Your 1/10 Scale Vehicle With Sensored Brushless Power

  • Sensored Brushless Technology Provides Smooth Linear Power
  • Built-In Bluetooth Module Allows Wireless Smartphone Tuning
  • IP67 Waterproof Rating Protects Against Harsh Weather
  • Adjustable High Voltage BEC Powers High-Torque Servos
  • Turbo Timing Technology Increases Maximum Top Speed

$134.02

Overview

Upgrade your 1/10 scale RC vehicle with this high-performance, sensorless brushless ESC. The Hobbywing EzRun Max10 G2S provides incredibly smooth and linear power output across the entire RPM range. This advanced system gives you aggressive launches off the line while maintaining perfect low-speed control through technical sections of the track.

Tuning your vehicle is incredibly simple thanks to the built-in Bluetooth module located inside the power switch. You can easily adjust parameters, review real-time data logs, and update firmware directly from your smartphone using the HW LINK app. The integrated high-voltage BEC supplies reliable power to your steering servo, while the IP67 waterproof rating keeps you running in harsh weather conditions.

Features

  • Sensored Brushless Technology Provides Smooth Linear Power
  • Built-In Bluetooth Module Allows Wireless Smartphone Tuning
  • IP67 Waterproof Rating Protects Against Harsh Weather
  • Adjustable High Voltage BEC Powers High-Torque Servos
  • Turbo Timing Technology Increases Maximum Top Speed
  • Intelligent Fan Control Reduces Noise And Power Consumption
  • Integrated Data Logging Records Your Track Performance
  • Capacitor Thermal Protection Prevents Costly Electrical Damage
  • Genuine Hobbywing Product

In the box

  • 1x Hobbywing EzRun Max10 G2S 80A 2-3S Brushless ESC

You'll need

  • 1x Compatible 1/10 Scale RC Vehicle
  • 1x Compatible Sensored Brushless Motor (3652 Size)
  • 1x Compatible 2S-3S LiPo Battery With XT60 Connector

Specifications

Weight125g (4.40oz)
Continuous Current80A
Peak Current520A
Input Voltage2-3S LiPo
BEC Output6V/7.4V/8.4V At 5A
Input ConnectorXT60
Output Connector4.0mm Gold Female
SpecificationCompatible Vehicles:
Specification1/10 Scale On-Road, Off-Road, Rally, And Short Course Trucks

Dimensions

Length53mm (2.08")
Width39.5mm (1.55")
Height37.2mm (1.46")

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage11.1V
Waterproof DesignYes
Burst Amps520A
Continuous Amps80A
Motor Connectors4.0mm Bullet
Battery ConnectorXT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.4V
Dual MotorNo
