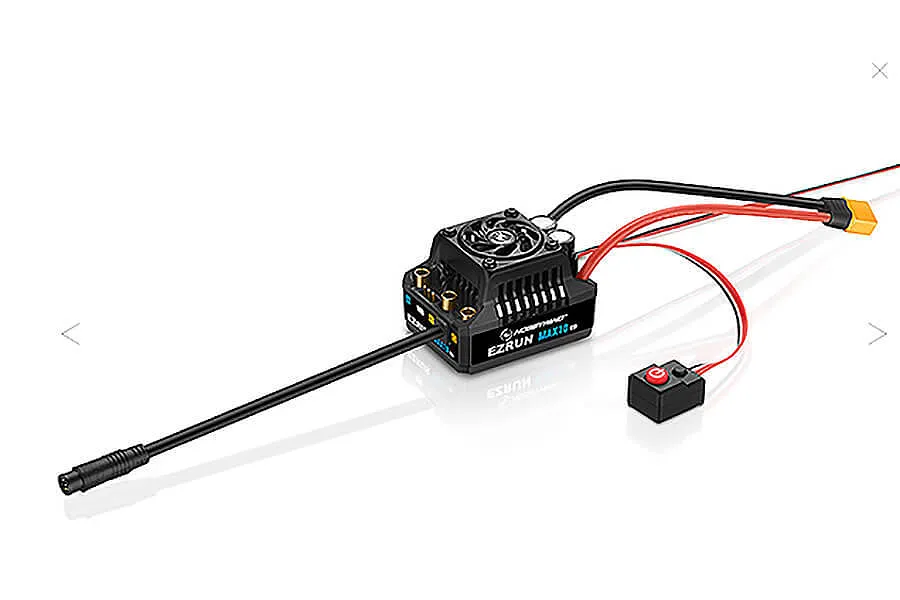

Hobbywing EzRun Max10 G2 80A Brushless ESC

Hobbywing EzRun Max10 G2 80A Brushless ESC

Hobbywing EzRun Max10 G2 80A Brushless ESC

Brand: Hobbywing | MPN: 30102604
sold out
$124.34
or 4 fortnightly payments of $31.08 with Afterpay

Hobbywing EzRun Max10 G2 80A waterproof brushless ESC for 1/10 scale, supporting 2-3S LiPo with full G2 programming options.

  • 80A continuous / 520A peak for capable 1/10 scale performance
  • Supports 2-3S LiPo input voltage
  • Waterproof construction for all-terrain reliability
  • Multiple programming options: LED box, LCD box (G2), OTA, and dedicated programming port
  • Firmware upgradeable for future-proofing
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

The Hobbywing EzRun Max10 G2 80A Brushless ESC is a waterproof 1/10th scale sensored/sensorless speed controller rated at 80A continuous and 520A peak, supporting 2-3S LiPo input. It supports multiple programming methods including LED program box, LCD program box (G2), OTA programmer, and a separate programming port, with firmware upgrade support.

Note

Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications
Scale
1/10th
Brushed/Brushless
Brushless
Sensored/Sensorless
Sensored/Sensorless (SD)
Waterproof
Yes
Continuous/Peak Current
80A / 520A
Input Voltage
2-3S LiPo
BEC Output
6V / 7.4V, 5A
Input Wires
Red 12AWG-159=0mm x1, Black 12AWG 150mm x1
Input Connectors
XT60
Output Connectors
4.0mm Gold (Female)
Fan Size
25x25x10mm
BEC Output Wires
5-7.4V, Powered by BEC
SET Button Programming
No
LED Program Box
Supported
LCD Program Box
Supported (G2)
OTA Programmer
Supported
Programming Port
Separate
Firmware Upgrade
Supported
Size
53mm x 39.5mm x 37.2mm
Weight
120g (with wires)

ESC (Electronic Speed Controller)
For Motor Type
Brushless
Max Voltage
11.1V
Waterproof Design
Yes
Continuous Amps
80A
Battery Connector
XT60
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Fan
BEC Voltage
6V, 7.4V
Dual Motor
No
