Hobbywing

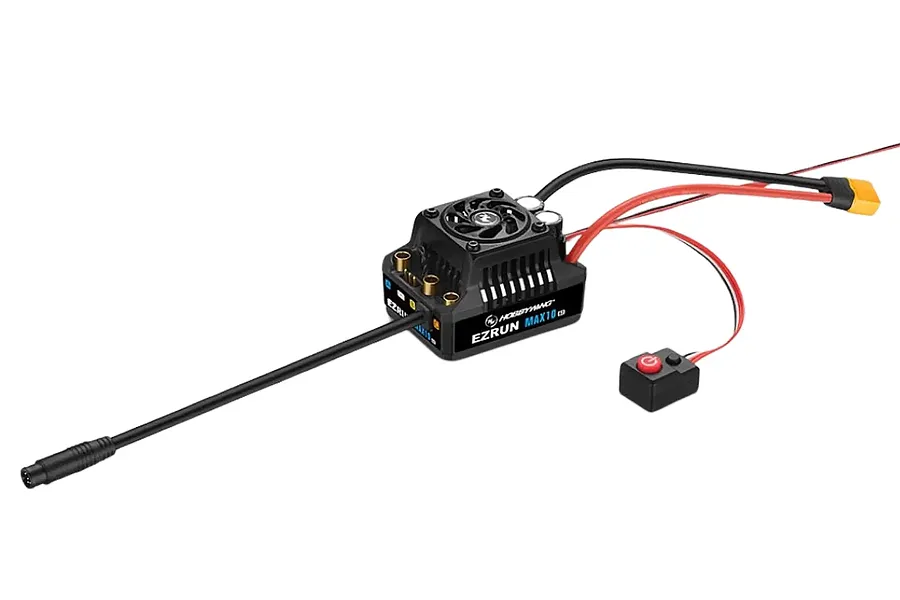

Hobbywing EzRun Max10 G2 140A Brushless ESC

  • Brushless

Part no. 30102603

Sold outNo reviews yet

$165.95

or 4 fortnightly payments of $41.49 with afterpay or PayPal, or zip

Hobbywing EzRun Max10 G2 140A waterproof brushless ESC for 1/10 scale, supporting 2-4S LiPo with full G2 programming options.

  • 140A continuous / 880A peak current rating for high-performance 1/10 scale builds
  • Supports 2-4S LiPo for versatile power configurations
  • Waterproof construction for all-terrain use
  • Multiple programming options: LED box, LCD box (G2), OTA, and dedicated programming port
  • Firmware upgradeable for future-proofing
Select Male Connector

Ordered 3 Nov · we're waiting on our supplier

Overview

The Hobbywing EzRun Max10 G2 140A Brushless ESC is a waterproof 1/10th scale sensored/sensorless speed controller rated at 140A continuous and 880A peak, supporting 2-4S LiPo input. It features multiple programming methods including an LED program box, LCD program box (G2), OTA programmer, and a separate programming port, with firmware upgrade support.

Note

Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications

Scale1/10th
Brushed/BrushlessBrushless
Sensored/SensorlessSensored/Sensorless (SD)
WaterproofYes
Continuous/Peak Current140A / 880A
Input Voltage2-4S LiPo
BEC Output6V / 7.4V, 5A
Input WiresRed 12AWG x1, Black 12AWG 150mm x1
Input ConnectorsXT60
Output Connectors4.0mm Gold (Female)
Fan Size30x30x10mm
BEC Output Wires5-7.4V, Powered by BEC
SET Button ProgrammingNo
LED Program BoxSupported
LCD Program BoxSupported (G2)
OTA ProgrammerSupported
Programming PortSeparate
Firmware UpgradeSupported
Size53mm x 39.5mm x 37.2mm
Weight120g (with wires)

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage11.1V
Waterproof DesignYes
Continuous Amps140A
Battery ConnectorXT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.4V
Dual MotorNo
