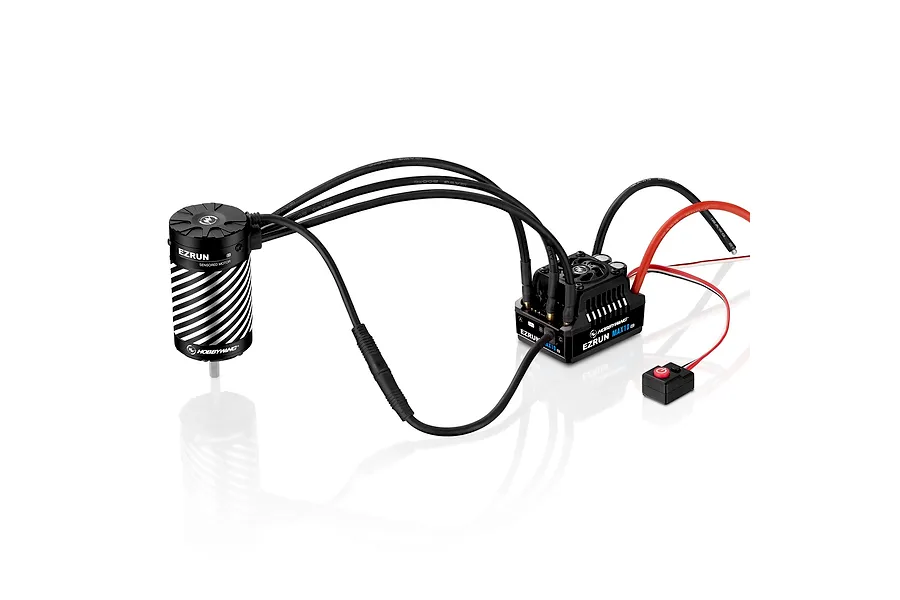

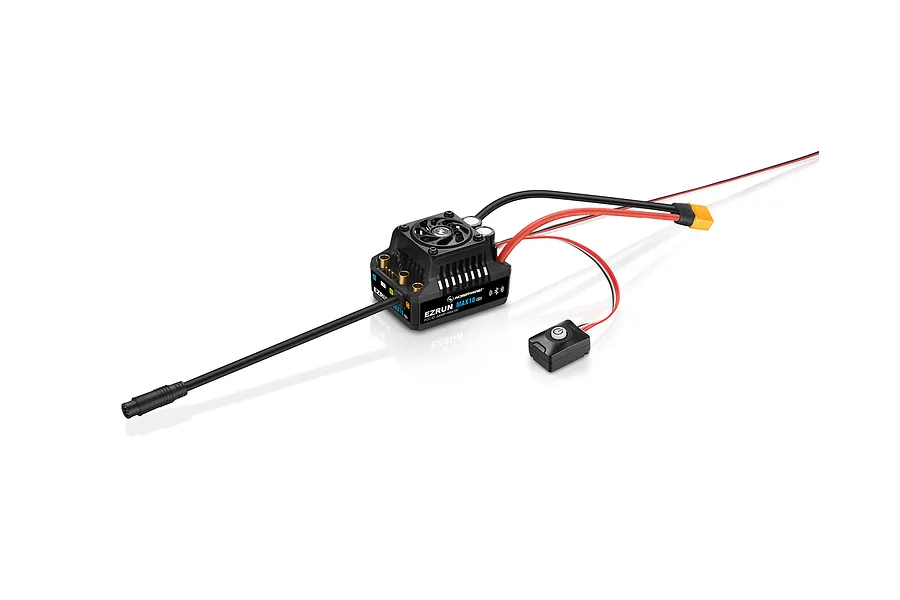

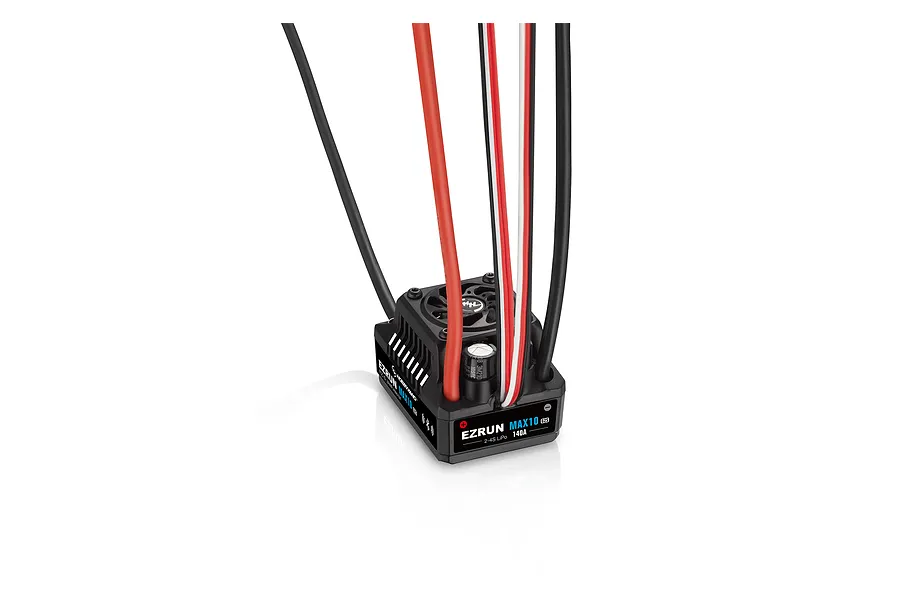

Hobbywing EzRun Max10 G2S 140A 2-4S ESC with 3665SD 2400kV G3 Brushless Sensored Motor Combo

  • Brushless

Part no. 38010209

New · Sold outDelayed, no new date yetNo reviews yet
1 / 3
1 / 3

$263.00

or 4 fortnightly payments of $65.75 with afterpay or PayPal, or zip

Hobbywing EzRun Max10 G2S 140A 3665SD 2400kV Brushless Combo Upgrades Your 1/10 Scale Monster Truck With Massive Sensored Power

  • Included 2400 kV Sensored Motor Provides Smooth Linear Power
  • Built-In Bluetooth Module Allows Wireless Smartphone Tuning
  • IP67 Waterproof Rating Protects Against Harsh Weather
  • Adjustable High Voltage BEC Powers High-Torque Servos
  • Massive 140A ESC Handles Aggressive Off-Road Driving
$263.00

Overview

Upgrade your 1/10 scale monster truck with this high-performance, sensor-led brushless motor and ESC combo. The Hobbywing EzRun Max10 G2S pairs perfectly with the included 3665SD 2400kV motor to provide incredibly smooth power output. This advanced 140A system gives you aggressive launches off the line while maintaining perfect low-speed control. Tuning your vehicle is incredibly simple thanks to the built-in Bluetooth module located inside the power switch. You can easily adjust parameters, review real-time data logs and update firmware directly from your smartphone. The integrated high-voltage BEC supplies reliable power to your steering servo, while the IP67 waterproof rating keeps you running in harsh weather conditions.

Features

  • Included 2400 kV Sensored Motor Provides Smooth Linear Power
  • Built-In Bluetooth Module Allows Wireless Smartphone Tuning
  • IP67 Waterproof Rating Protects Against Harsh Weather
  • Adjustable High Voltage BEC Powers High-Torque Servos
  • Massive 140A ESC Handles Aggressive Off-Road Driving
  • Turbo Timing Technology Increases Maximum Top Speed
  • Intelligent Fan Control Reduces Noise And Power Consumption
  • Integrated Data Logging Records Your Track Performance
  • Capacitor Thermal Protection Prevents Costly Electrical Damage
  • Genuine Hobbywing Product

In the box

  • 1x Hobbywing EzRun Max10 G2S 140A Brushless ESC
  • 1x Hobbywing EzRun 3665SD 2400kV G3 Brushless Motor

Specifications

Weight125g (4.40oz)
Continuous Current140A
Peak Current880A
Input Voltage2-4S LiPo
BEC Output6V/7.4V/8.4V At 5A
Input ConnectorXT60
Output Connector4.0mm Gold Female
Motor kV2400kV
Motor Size3665
SpecificationCompatible Vehicles:
Specification1/10 Scale Short Course Trucks And Monster Trucks

Dimensions

LengthLength of the motor can in mm37mm
Width39.5mm (1.55")
Height37.2mm (1.46")

Motor

Max Voltage3S (11.1V)
KVRPM (Revolutions Per Minute) per Volt2400KV
DiameterDiameter of the motor can66mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage14.8V
Waterproof DesignYes
Burst Amps880A
Continuous Amps140A
Motor Connectors4.0mm Bullet
Battery ConnectorXT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.4V
Dual MotorNo
