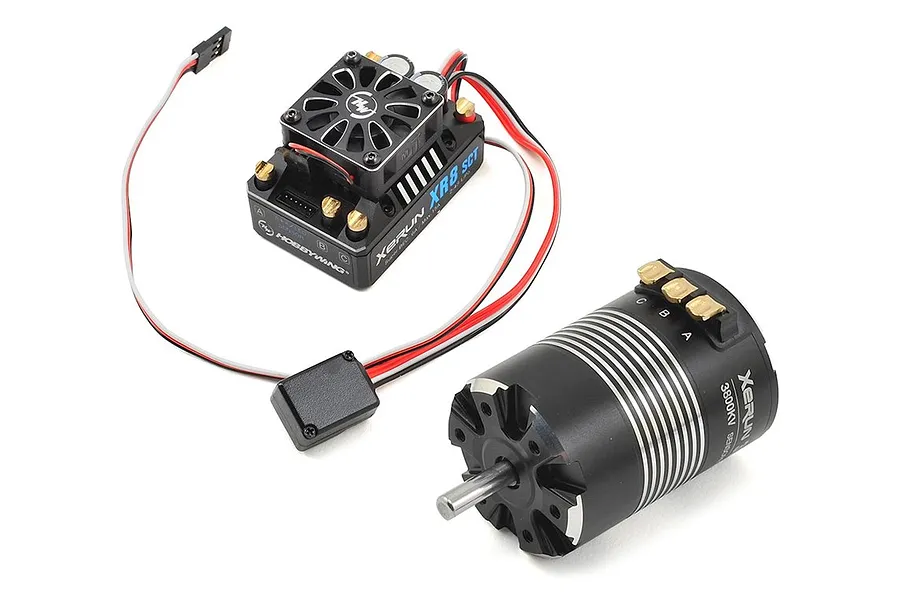

The Hobbywing Xerun XR8 SCT Brushless ESC and 3652SD G2 Motor Combo is a great choice for lightweight short course trucks, monster trucks, and other light duty 2-3S LiPo applications.

The XR8 SCT is the first 1/8 scale competition ESC which can work in full-sensored mode at all times when paired with a Hobbywing matching motor. Perfect for 1/10 4WD Short Course Truck, Monster Trucks and 1/8th scale, the XR8 SCT ESC boasts full sensored operation, 140A output, electronic switch, 6V/7.4V switchable BEC and wireless programming capabilities.

The Hobbywing XERUN SCT 3652SD G2 Sensored 3800kV Brushless Motor is a 4-pole powerhouse, great for light-duty short course, truck and monster truck sensored applications. Because this motor uses a 5mm diameter motor shaft, it requires pinion gears with a 5mm bore.

ESC

• Turbo Timing Technology: Implemented by the XR8 SCT to unleash the maximum power of a Hobbywing matching motor.
• Small & Light Structure Design: 30.1% smaller than XR8 Plus in size and 36.5g lighter than XR8 Plus in weight, greatly simplifying installation.
• Programming / Upgrading / Data reading wirelessly: With Hobbywing's WiFi Express module and iPhone or Android phone (with the Hobbywing WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC.
• Coasting: Exceptionally smooth off-throttle coasting function which simulates the feeling of inertia and momentum of a large-scale car driving experience.
• Capacitor Thermal Protection: Effectively prevents capacitors from exploding and causing irreversible damage to the ESC due to overload.
• High Voltage Built-in BEC: Output current of up to 15A and switchable output voltage of 6V–7.4V, supporting high torque and high voltage servos.
• High Reliability & Durability: Built with rugged, high-quality components and cutting-edge firmware; able to protect itself from damage due to overloading, physical abuse, overuse or human error.
• Advanced and Secure Electronic Switch: Lifespan of over 50,000 on/off cycles, housed in a waterproof, dust-proof and shock-resistant design.
• Ultra-Reliable Cooling System: Patented cooling technology using proprietary heat-conductive copper bars transferring heat from the MOSFET board to the CNC machined billet aluminium heatsink housing. Shockproof fan mounting reduces risk of fan damage from jumps.
• Wide Applicability: Applicable to 1/8th buggies and short-course trucks as well as 1/10th short-course trucks, trucks and monster trucks.

Motor

• Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation.
• Built-in chip for ESC identification; when paired with a Hobbywing 1/8th sensored ESC (e.g. XR8 SCT/Plus), the motor works in sensored mode at all times with great output linearity. Turbo timing can be activated for higher output.
• Magnetic ring on the rotor protects from signal interference and guarantees stability in sensored mode.
• Mechanical timing adjustable from 20° to 40° for different output power.
• Turbine design implemented by the rotor accelerates internal air circulation and reduces heat.
• Rebuildable design (partially rebuildable) and screw-less motor case for easy routine maintenance.
• CNC machined aluminium housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings.
• Updated "U" solder tabs at the bottom of the motor for easy soldering and wiring.

• Hobbywing WiFi Express module for wireless programming (sold separately, part# HWA30503000)
• Pinion gears with 5mm bore (required for 5mm motor shaft)

Brushless electric motors and ESCs have high torque at any RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Consult your manual and select gearing suitable for the vehicle and terrain. Damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor ESC and motor temperatures closely after modifying your system.
