Hobbywing

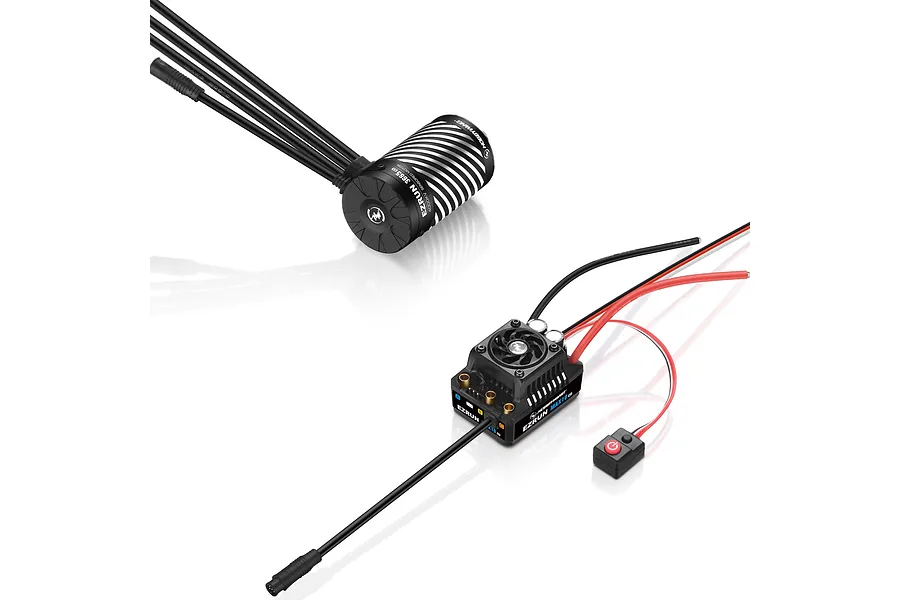

Hobbywing Max10 SCT G2 140A ESC & 3665SD 2400Kv Brushless Motor Combo

  • Brushless

Part no. 38020343

Sold outNo reviews yet

$266.47

or 4 fortnightly payments of $66.62 with afterpay or PayPal, or zip

Hobbywing EzRun Max10 SCT G2 140A ESC paired with 3665 SD G3 2400Kv motor — IP-67 waterproof, 25% more speed, smart fan control.

  • IP-67 waterproof — drives through mud, sand, ice, snow, and water
  • 25% more top speed with Turbo timing and EzRun 3652/3665 G3 motor pairing
  • 74% more total capacitance than previous generation with overheating protection
  • ~25°C lower operating temperature via smart freewheeling technology
  • Real-time telemetry (throttle, voltage, current, temp, speed) via OTA Bluetooth module
Select Male Connector

In stock now: similar

Ready to send today if you order before 1pm.

Will it fit?

Check fit: add your vehicle to My GarageFits 201 vehicles

Overview

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Improved waterproof sensored cable interface and upgraded sensored mode for a great sense of control feel, perfectly matching the EzRun 3652/3665 SD G3 motors.
  • Supports Turbo timing adjustment of up to 32 degrees; in combination with the EzRun 3652/3665 G3, maximum speed is 25% more with greater effect.
  • Smart start-stop technology: the frameless fan is disabled to reduce noise and save power, activating only when temperature rises to a set level.
  • Total capacitor capacitance increased by 74% over the previous MAX10 generation, with overheating protection to improve power delivery and avoid capacitor failure.
  • Smart freewheeling technology delivers higher drive efficiency than the previous generation, with operating temperatures approximately 25°C lower.
  • Connect the ESC to the OTA Bluetooth module to view real-time data (throttle, voltage, current, temperature, speed, etc.) via the mobile app, with data logging for history review.
  • IP-67 waterproof system for excellent waterproofing and dustproofing — drive on mud, sand, ice, snow, and water without damaging the power unit.

Specifications

Ezrun Series3665 SD G3
KV2400KV
P/n30402604
LiPo2-4S
R. (Ω)0.00816Ω
No-load Current5.4A
Motor Diameter & LengthØ=37 / L=65.8
Shaft Diameter & LengthØ=5 / L=16.5
Pole4
Weight304.5g

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt2400KV
LengthLength of the motor can in mm65.8mm
DiameterDiameter of the motor can37mm
Shaft Diameter5mm
