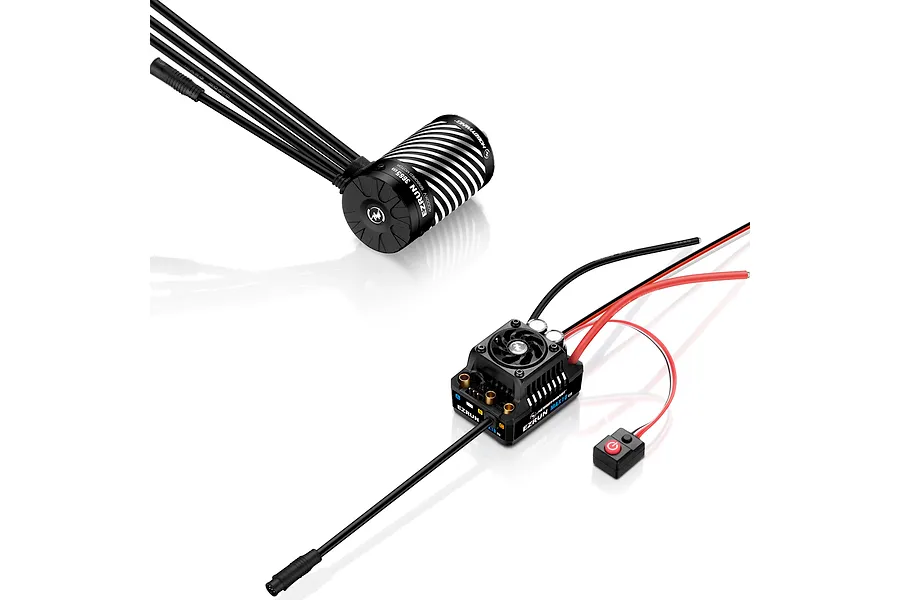

Hobbywing EzRun Max10 G2S 140A 2-4S ESC with 3665SD 4000kV G3 Brushless Sensored Combo
Hobbywing EzRun Max10 G2S 140A 2-4S ESC with 3665SD 4000kV G3 Brushless Sensored Combo
Hobbywing EzRun Max10 G2S 140A 3665SD 4000kV Brushless Combo Upgrades Your 1/10 Scale Monster Truck With Massive Sensored Power
Included 4000 kV Sensored Motor Provides Smooth Linear Power
Built-In Bluetooth Module Allows Wireless Smartphone Tuning
IP67 Waterproof Rating Protects Against Harsh Weather
Adjustable High Voltage BEC Powers High-Torque Servos
Massive 140A ESC Handles Aggressive Off-Road Driving
Upgrade your 1/10 scale monster truck with this high-performance, sensor-led brushless motor and ESC combo. The Hobbywing EzRun Max10 G2S pairs perfectly with the included 3665SD 4000kV motor to provide incredibly smooth power output. This advanced 140A system gives you aggressive launches off the line while maintaining perfect low-speed control. Tuning your vehicle is incredibly simple thanks to the built-in Bluetooth module located inside the power switch. You can easily adjust parameters, review real-time data logs and update firmware directly from your smartphone. The integrated high-voltage BEC supplies reliable power to your steering servo, while the IP67 waterproof rating keeps you running in harsh weather conditions.
Included 4000 kV Sensored Motor Provides Smooth Linear Power
Built-In Bluetooth Module Allows Wireless Smartphone Tuning
IP67 Waterproof Rating Protects Against Harsh Weather
Adjustable High Voltage BEC Powers High-Torque Servos
Massive 140A ESC Handles Aggressive Off-Road Driving
Turbo Timing Technology Increases Maximum Top Speed
Intelligent Fan Control Reduces Noise And Power Consumption
Integrated Data Logging Records Your Track Performance
Capacitor Thermal Protection Prevents Costly Electrical Damage
Genuine Hobbywing Product

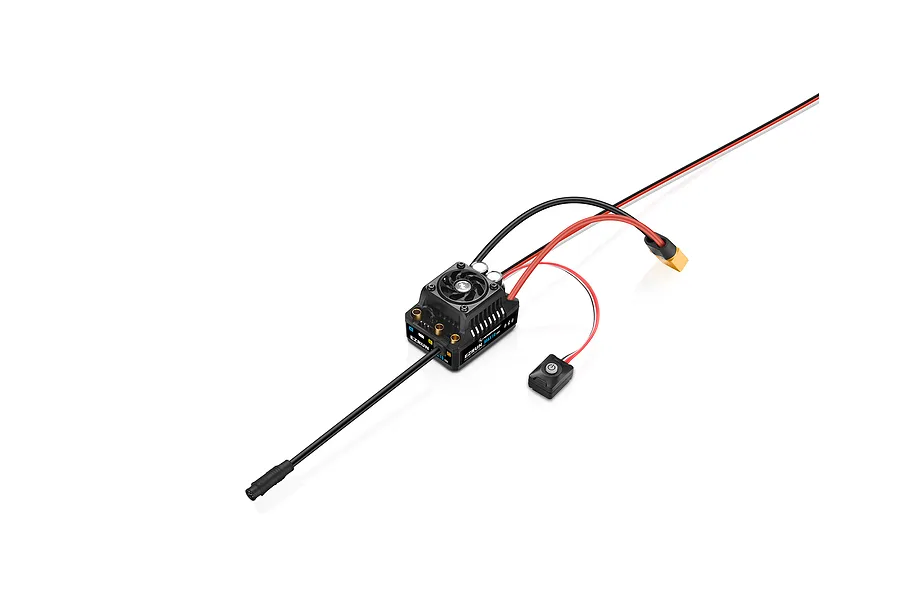

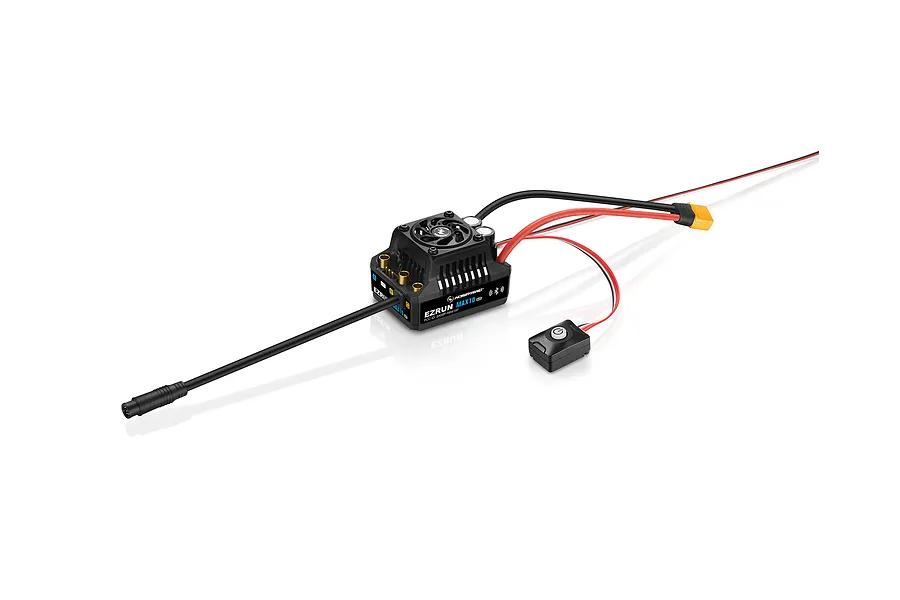

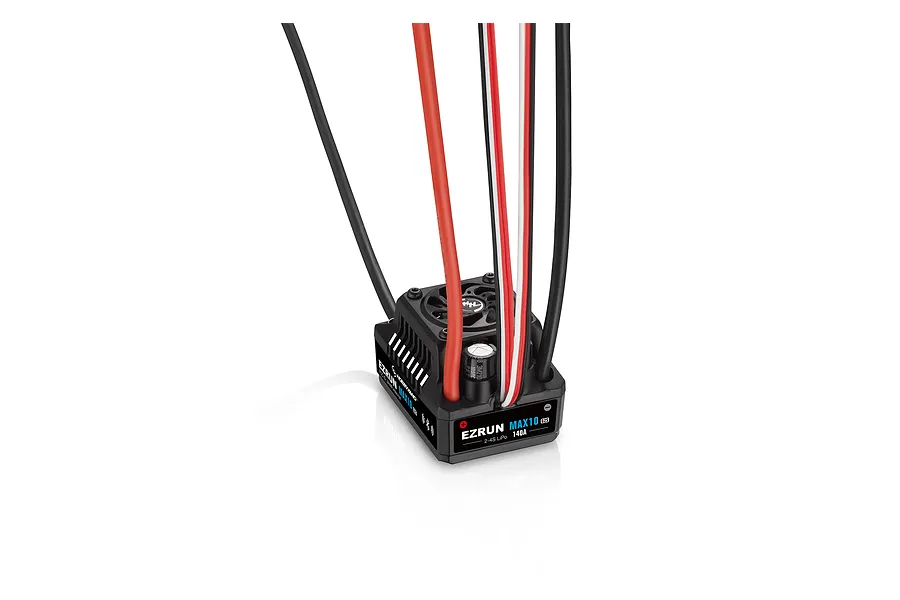

1x Hobbywing EzRun Max10 G2S 140A Brushless ESC
1x Hobbywing EzRun 3665SD 4000kV G3 Brushless Motor
-
Length
- 53mm (2.08")
-
Width
- 39.5mm (1.55")
-
Height
- 37.2mm (1.46")
-
Weight
- 125g (4.40oz)
-
Continuous Current
- 140A
-
Peak Current
- 880A
-
Input Voltage
- 2-3S LiPo
-
BEC Output
- 6V/7.4V/8.4V At 5A
-
Input Connector
- XT60
-
Output Connector
- 4.0mm Gold Female
-
Motor kV
- 4000kV
-
Motor Size
- 3665
-
Max Voltage
- 3S (11.1V)V
-
KVRPM (Revolutions Per Minute) per Volt
- 4000KV
-
SensoredUses sensors for precise speed and position control
- Yes
-
LengthLength of the motor can in mm
- 66mm
-
DiameterDiameter of the motor can
- 37mm
-
Shaft Diameter
- 5mm
-
For Motor Type
- Brushless
-
Max Voltage
- 14.8V
-
Waterproof Design
- Yes
-
Burst Amps
- 880A
-
Continuous Amps
- 140A
-
Motor Connectors
- 4.0mm Bullet
-
Battery Connector
- XT60
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 6V, 7.4V
-
Dual Motor
- No
