Hobbywing

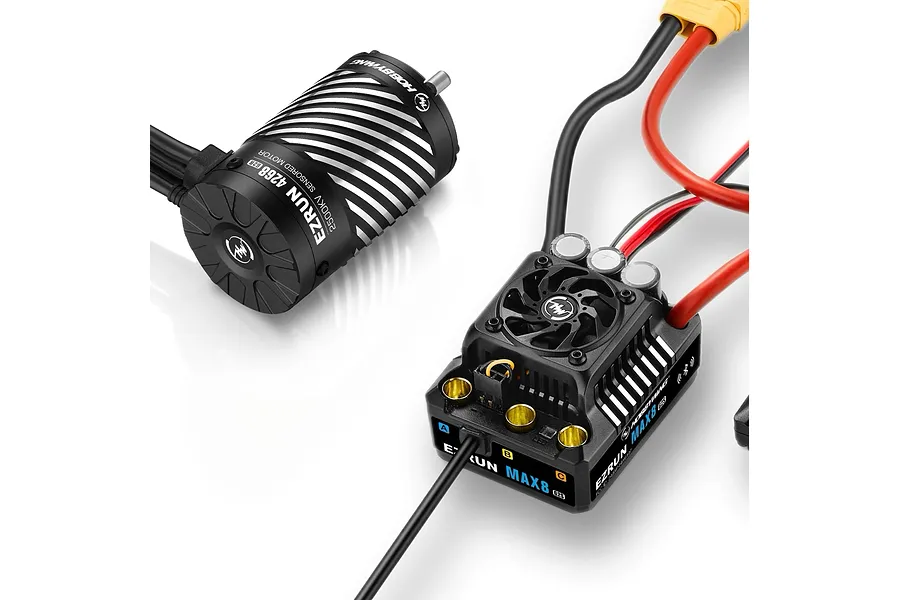

Hobbywing EzRun Max8 G2S 160A ESC and 4268SD 2500kV G2R Brushless Sensored Motor Combo

  • Brushless

Part no. 38010606

$365.82

or 4 fortnightly payments of $91.46 with afterpay

Hobbywing EzRun MAX8 G2S Sensored Brushless Combo: A Fully Waterproof, 6S Capable, High-Performance System!

  • Complete Factory-Matched Power System
  • Built-In Bluetooth For App Tuning
  • Full Sensored For Smooth Control
  • Fully IP-67 Waterproof System
  • Extreme 6S Capable Power
Select Option: G2S 160A ESC and 4268SD 2500kV G2R
Select Male Connector
Select Wiring Configuration

Ordered 3 Nov · we're waiting on our supplier

Overview

Experience a new level of power and intelligent control with the Hobbywing EzRun MAX8 G2S ESC and 4268 SD G2 motor combo. This 1/8th scale system is engineered for extreme output, delivering 160A of current and handling up to 6S LiPo batteries for incredible performance in monster trucks, short course trucks, and buggies. The fully sensored G2 motor provides exceptionally smooth and linear throttle response, while the entire system boasts an IP67 waterproof rating for confident all-weather operation.

The standout feature of the G2S ESC is its built-in Bluetooth module, allowing you to connect directly to the HW LINK V2 mobile app. This provides a simple and convenient way to adjust parameters, perform firmware upgrades, and view real-time telemetry. The ESC also includes a data logging function to store and analyse your runs. With advanced features like adjustable turbo timing, a powerful switch-mode BEC with up to 15A peak output, and an intelligent cooling fan, this combo offers both immense power and sophisticated tuning capabilities.

Features

  • A complete, factory-matched power system with the MAX8 G2S ESC and an EzRun G2 motor
  • Features a built-in Bluetooth module in the ESC for direct connection to the mobile app
  • Full sensored mode operation provides exceptionally smooth, cog-free throttle control
  • Fully IP-67 rated waterproof and dustproof design for both the ESC and motor
  • Powerful 160A ESC is capable of handling up to 6S LiPo power for extreme performance
  • Built-in data logging function records real-time data viewable on the HW Link V2 App
  • Advanced ESC features include Turbo Timing, intelligent fan control, and capacitor protection
  • Genuine Hobbywing Product

In the box

  • 1x Hobbywing EzRun MAX8 G2S 160A ESC
  • 1x Hobbywing 4268SD EzRun 2500kV G2R Sensored Motor
  • 1x Instruction Manual

Specifications

ESC:
Length60mm (2.36")
Width48mm (1.89")
Height40.5mm (1.59")
Weight192g (6.77oz) (w/Wires)
Continuous/Peak Current160A/1050A
WaterproofYes
Motor LimitWith 4S Lipo: KV≤3000; With 6S Lipo: KV≤2400 4278 size motor
BEC6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
Voltage Limit3-6S Lipo
ProgrammableYes (via Built-in Bluetooth)
Scale1/8th
SensoredYes
Motor:
KV2500KV
LiPo Cells3-4S
Diameter42mm (1.65")
Length68mm (3.07")
Shaft Diameter5mm (0.20")
Weight455g (16.05oz)

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt2500KV
SensoredUses sensors for precise speed and position controlYes
LengthLength of the motor can in mm68mm
DiameterDiameter of the motor can42mm
Shaft Diameter5mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless Sensored
Max Voltage22.2V
Waterproof DesignYes
Burst Amps1080A
Continuous Amps160A
Motor Connectors6.5mm Bullet
Battery ConnectorXT90
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage7.4V, 8.4V, 6V
Dual MotorNo
