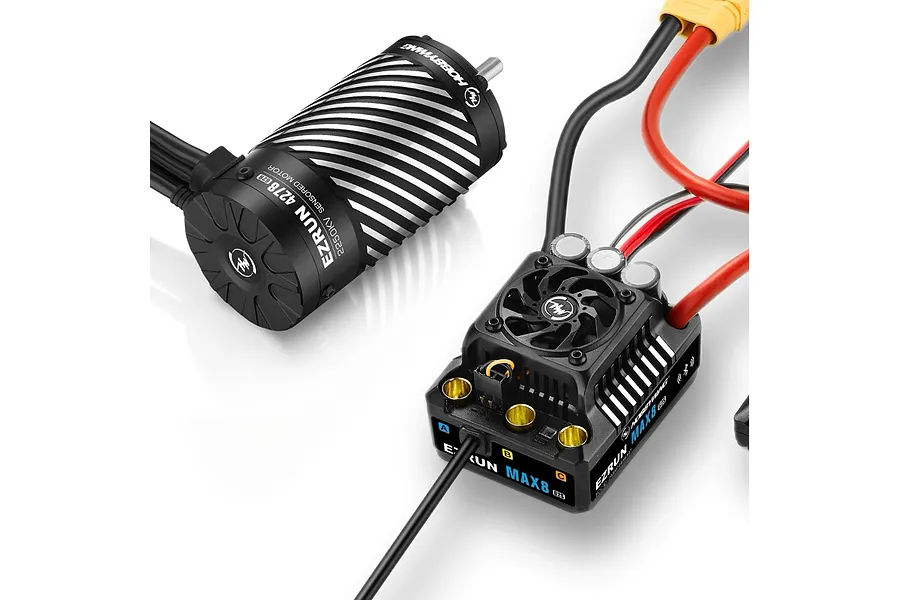

Hobbywing Ezrun Max8 160A ESC and 4278SD 2250kV Brushless Sensored Motor Combo
Hobbywing Ezrun Max8 160A ESC and 4278SD 2250kV Brushless Sensored Motor Combo
The Hobbywing Ezrun Max8 2250kV Brushless Combo Delivers Smooth Sensored Acceleration, Full Thermal Protection, and Integrated App Tuning Capability
Waterproof G2S ESC Construction Protects Sensitive Electronics
160A Sensored ESC Output Delivers Smooth Throttle Control
4278SD 2250 kV Brushless Motor Provides High-Torque Power
Integrated Bluetooth Connectivity Enables Real-Time App Tuning
Great For Intermediate Skill Levels Upgrading RC Vehicles
The Hobbywing MAX8 ESC manual notes that the warranty does not extend to issues resulting from 6S LiPo configurations. Please visit the Hobbywing website for information and consult the manual for proper operation guidelines.
Engineered to deliver high-output brushless performance for 1/8 scale RC monster trucks, truggies, and buggies, the Hobbywing Ezrun Max8 G2S ESC and 4278SD 2250kV Motor Combo combines raw power with advanced digital control. Featuring an innovative waterproof sensor interface, the Max8 G2S electronic speed controller maintains reliable operation through wet conditions, mud, and snow. Paired with the high-torque Ezrun 4278SD sensored brushless motor, this power system offers linear throttle response, smooth low-speed control, and explosive top speeds when running on 3S to 6S LiPo battery power.
Tuning and monitoring system performance is straightforward thanks to integrated Bluetooth capability built directly into the ESC power switch. Drivers can connect directly to the HW LINK mobile application on their smartphone to adjust parameters, tune turbo timing settings, update firmware, and review real-time data logs without needing external programming cards. Equipped with a high-voltage 6V/7.4V/8.4V switch-mode BEC to drive power-hungry steering servos, alongside built-in low-voltage and thermal protection circuits, this heavy-duty combo provides an ideal power upgrade for demanding off-road RC applications.
Heavy-Duty 1/8 Scale Brushless Sensored ESC And Motor Power System Combo
Waterproof Sensor Interface Resists Water, Dust, Mud And Snow Intrusion
High-Output 160A Continuous Current Handling Supports 3S To 6S LiPo Packs
High-Torque Ezrun 4278SD 2250kV Sensored Brushless Motor Delivers Smooth Power
Built-In Bluetooth Connectivity Enables Direct Smartphone Parameter Adjustments
Supports Advanced Turbo Timing Settings For Maximum Straight-Line Speed
Integrated Switch-Mode BEC Supplies Adjustable 6V, 7.4V Or 8.4V Output
Data Logging Functionality Tracks Peak Temperatures, Currents And Voltages
Comprehensive Protection Features Safeguard Against Overheating And Low Voltage
Genuine Hobbywing Product
1x Hobbywing Ezrun Max8 G2S 160A Waterproof Sensored ESC
1x Hobbywing Ezrun 4278SD 2250kV Sensored Brushless Motor
1x Sensor Cable
1x Wiring & Accessory Hardware Set
1x Product Manual
1x 3S, 4S, or 6S Hardcase LiPo Battery Pack With Compatible Connectors
-
Application
- 1/8 Scale On-Road, Truggy, Monster Truck, and Off-Road Vehicles
-
Continuous Current
- 160A
-
Peak Current
- 1050A
-
Input Voltage
- 3S to 6S LiPo (11.1V to 22.2V)
-
BEC Output
- 6V / 7.4V / 8.4V Adjustable (Continuous 6A)
-
Motor Type
- 4278SD Sensored Brushless Motor
-
Motor KV
- 2250kV
-
Motor Diameter
- 42mm (1.65")
-
Motor Length
- 78mm (3.07")
-
Shaft Diameter
- 5mm (0.20")
-
Waterproof
- Yes
-
Programming Port
- Built-In Bluetooth / Switch
-
Skill Level
- Intermediate and Up
-
Type
- Sensored
-
KVRPM (Revolutions Per Minute) per Volt
- 2250KV
-
SensoredUses sensors for precise speed and position control
- Yes
-
LengthLength of the motor can in mm
- 78mm
-
DiameterDiameter of the motor can
- 42mm
-
Shaft Diameter
- 5mm
-
For Motor Type
- Brushless Sensored
-
Max Voltage
- 22.2V
-
Waterproof Design
- Yes
-
Burst Amps
- 1050A
-
Continuous Amps
- 160A
-
Motor Connectors
- 6.5mm Bullet
-
Battery Connector
- XT90
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 8.4V, 6V, 7.4V
-
Dual Motor
- No
5 out of 5 stars
Have a question, or an answer? Weigh in here. Our team and other owners both reply.
Is this the max8 G2 with Bluetooth or the older non Bluetooth max8? Thanks
Hi Reece, This Max8 does feature Bluetooth connectivity
