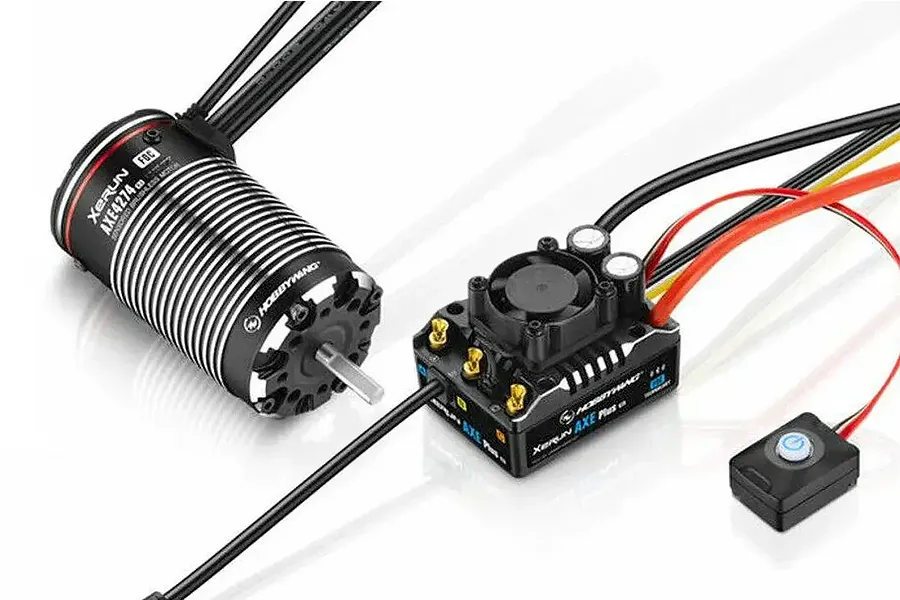

Hobbywing Xerun AXE Plus R3 135A ESC and AXE 4274SD 1700Kv Sensored Brushless Motor Combo

  • Brushless

Part no. 38020384

1 in stockWrite a review

$363.90

or 4 fortnightly payments of $90.98 with afterpay

Hobbywing XeRun AXE Plus R3: The Ultimate Power System for Demanding Rock Crawling!

  • Sensored technology for improved response
  • Perfect for rock crawlers
  • Ideal for 1/8, 1/6 and 1/5 scale vehicles
Select Male Connector
Select Motor & ESC Wires Soldered

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

  • 1 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The Hobbywing XeRun AXE Plus R3 135A ESC and AXE 4274SD Sensored Brushless Motor Combo delivers the power and control you need to dominate the rocks. This combo is designed for serious rock crawlers, providing exceptional performance in demanding off-road environments. The high-torque 4274SD motor delivers exceptional climbing ability, while the 135A ESC offers advanced features like drag brake and hill hold for precise control on challenging terrain. With its waterproof and dustproof design, the XeRun AXE Plus R3 combo is ready for all-weather adventures. Experience the ultimate in rock crawling performance with the Hobbywing XeRun AXE Plus R3 combo.

Note

Requires 30850501 to fit into vehicles such as the SCX6

Features

  • Specifically designed for 1/10th, 1/8th, and 1/6th scale rock crawlers.
  • High power output with a continuous current of 135A.
  • Built-in switch mode BEC with adjustable voltage (6V/7.4V/8.4V).
  • Advanced programming features including drag brake, hill hold, and variable throttle curves.
  • Waterproof and dustproof with an IP67 rating.
  • High-power 4274 size motor is suitable for 1/8th, 1/7th, and 1/6th scale crawlers.
  • IP67 waterproof and dustproof for reliable performance in all conditions.
  • Precision magnetic sensor for accurate rotor position sensing and smooth operation.
  • Supports optional motor adaptor for compatibility with different mounting hole patterns.
  • Premium materials: high-quality aluminium CNC shell, premium bearings, ultra-thin silicon steel sheets, high-temperature-resistant enamelled wire, and high-toughness alloy output shaft
  • Genuine Hobbywing Product

In the box

  • 1x Hobbywing Xerun AXE Plus R3 135A ESC
  • 1x AXE 4274SD 1700Kv Sensored Brushless Motor Combo

Specifications

ESC
Length49.5mm (1.95")
Width37.9mm (1.49")
Height32.8mm (1.29")
Weight126.5g (4.46oz)
Continuous/Peak Current135A/600A
WaterproofYes
Motor LimitOnly supports XeRun AXE R2/R3 motors
BECSwitch Mode 6V/7.4V/8.4V @ 6A
Voltage Limit2-6S LiPo
ProgrammableYes (via built-in Bluetooth)
Scale1/10th, 1/8th, 1/6th
SensoredYes
Motor
KV1700Kv
Voltage Limit2-6S
Diameter42mm (1.65")
Length74mm (2.91")
Shaft Diameter5mm (0.20")
Weight405g (14.26oz)

Motor

TypeSensored
KVRPM (Revolutions Per Minute) per Volt1700KV
SensoredUses sensors for precise speed and position controlYes
LengthLength of the motor can in mm74mm
DiameterDiameter of the motor can42mm
Shaft Diameter5mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless Sensored
Max Voltage22.2V
Waterproof DesignYes
Burst Amps600A
Continuous Amps135A
Motor ConnectorsBare Wires
Battery ConnectorXT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.4V, 8.4V
Dual MotorNo
