Name: Hobbywing Xerun AXE Plus R3 135A ESC and AXE 550L 3300Kv Sensored Brushless Motor Combo
Brand: Hobbywing
SKU: HW-38020389
Price: 339.42 AUD
Availability: OutOfStock

Overview

ESC Gearing

Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

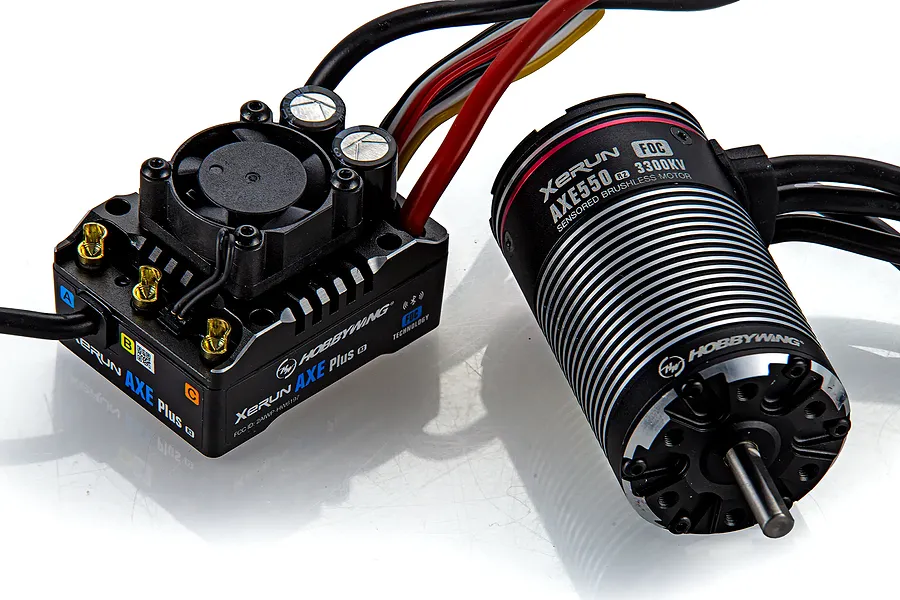

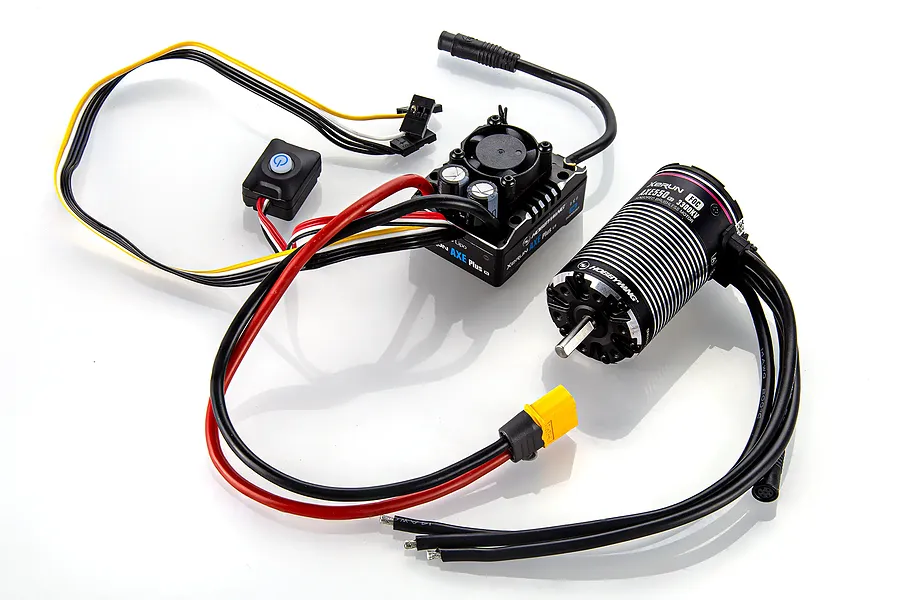

The Hobbywing XeRun AXE Plus R3 135A ESC and AXE 550L 3300Kv Brushless Motor Combo is a powerhouse designed to take your rock crawling experience up to the highest levels. This combo delivers exceptional torque and smooth control, making it ideal for tackling challenging terrains. The 135A ESC boasts advanced features like drag brake and hill-hold, specifically programmed for rock crawlers. With its waterproof and dustproof design, the XeRun AXE Plus R3 combo is ready for all-weather adventures. The 3300Kv motor provides ample power for tackling steep inclines and obstacles, while the CNC machined aluminium housing ensures efficient heat dissipation. Whether you're a seasoned rock crawler or just starting, the Hobbywing XeRun AXE Plus R3 combo delivers the performance and reliability you need to dominate the rocks.

Features

Specifically designed for 1/10th scale rock crawlers
High power output with a continuous current of 135A and a burst current of 800A
Built-in switch mode BEC with a maximum output of 6A and an adjustable voltage of 6V or 74V
Advanced programming features including drag brake, hill hold, and variable throttle and brake curves
Multiple protection features: low-voltage cutoff, thermal protection, and overload protection
Waterproof and dustproof with an IP67 rating
4-pole 12-slot design for high torque and smooth operation
CNC machined aluminum housing for efficient heat dissipation
High-purity copper windings for maximum efficiency and performance
Powerful neodymium magnets for increased torque and power
Rebuildable design for easy maintenance and extended lifespan
Sensored technology for finer control
Genuine Hobbywing product

In the box

1x Hobbywing Xerun AXE Plus R3 135A ESC
1x AXE 550L 3300Kv Brushless Motor

Specifications

	ESC
Length	49.5mm (1.95")
Width	37.9mm (1.49")
Height	32.8mm (1.29")
Weight	126.5g (4.46oz)
Continuous/Peak Current	135A/600A
Waterproof	Yes
Motor Limit	Only supports XeRun AXE R2/R3 motors
BEC	Switch Mode 6V/7.4V/8.4V @ 6A
Voltage Limit	2-6S LiPo
Programmable	Yes (via built-in Bluetooth)
Scale	1/10th, 1/8th, 1/6th
Sensored	Yes
	Motor
KV	3300Kv
Voltage Limit	2-3S
Diameter	36mm (1.42")
Length	63.8mm (2.51")
Shaft Diameter	3.175mm (0.125")
Weight	268g (9.45 oz)

Motor

Type	Sensored
KVRPM (Revolutions Per Minute) per Volt	3300KV
SensoredUses sensors for precise speed and position control	Yes
LengthLength of the motor can in mm	63mm
DiameterDiameter of the motor can	36mm
Shaft Diameter	5mm

ESC (Electronic Speed Controller)

For Motor Type	Brushless Sensored
Max Voltage	22.2V
Waterproof Design	Yes
Burst Amps	600A
Continuous Amps	135A
Motor Connectors	Bare Wires
Battery Connector	XT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Fan
BEC Voltage	8.4V, 6V, 7.4V
Dual Motor	No
